ELECTROLYTIC CHLORINE GENERATOR
BASIC POOL MAINTENANCE REQUIREMENTS
TEST
IDEAL RANGE
Free Chlorine
1.0 - 3.0 ppm
pH
7.2 - 7.8
Alkalinity
80 - 120 ppm
Salt
2700 - 3400 ppm Add salt as required to increase.
Stabilizer
60 - 80 ppm
Calcium
200 - 400 ppm
Electrolytic Cell inspect & clean
Head Loss Curve
14
13
12
11
10
9
8
7
6
5
4
3
2
1
.82
0
40 (25%)
80 (50%)
Flow Rate
620 Division St.
Elizabeth, NJ 07207
ADJUSTMENT REQUIRED
Raise desired output % to
increase, lower desired output %
to decrease -OR- increase or
decrease pump filtration time.
Too high - add muriatic acid
Too low - add soda ash.
Add baking soda to increase.
Add acid as required to decrease.
Add cyanuric acid to increase.
Add calcium to increase.
Drain and add water to decrease.
Refer to section in manual.
12.03
6.79
3.08
120 (75%)
160 (100%)
(gpm)
092009N RevP
Copyright © 2010 Hayward Inc.
Aqua Rite
Electronic Chlorine Generator
Operation and Installation
Manual
AQR
®
www.haywardnet.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the AquaRite® 120 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hayward AquaRite® 120

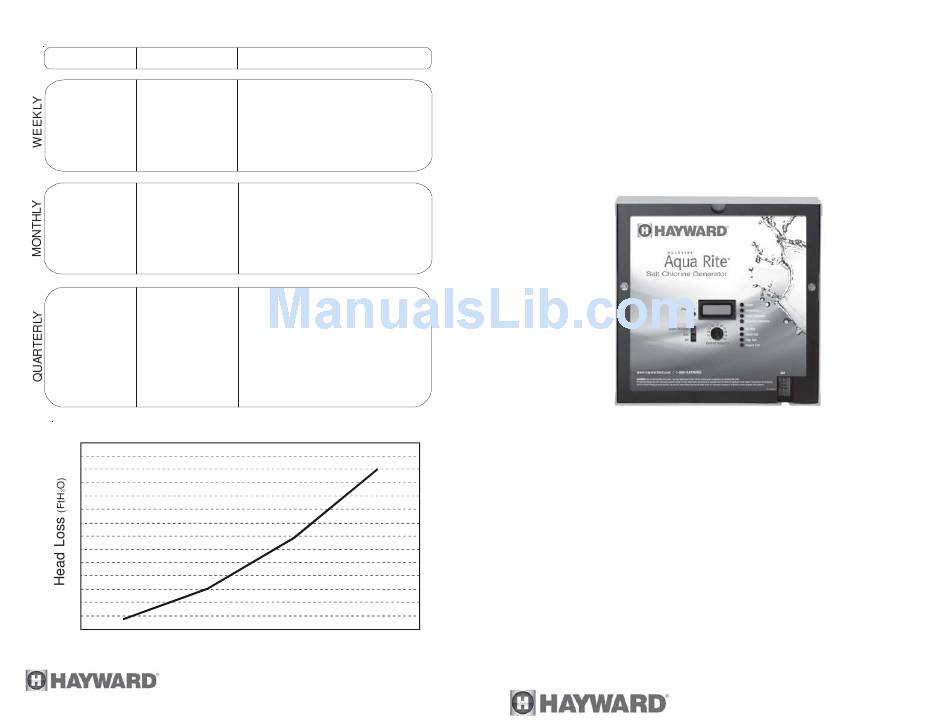

  • Page 1 Refer to section in manual. Head Loss Curve Electronic Chlorine Generator 12.03 Operation and Installation 6.79 Manual 3.08 40 (25%) 80 (50%) 120 (75%) 160 (100%) Flow Rate (gpm) 620 Division St. 092009N RevP www.haywardnet.com Elizabeth, NJ 07207 Copyright © 2010 Hayward Inc.
  • Page 2 SwimPure chlorination products to be free of defects in materials and workmanship, under When using this electrical equipment, basic safety precautions normal use and service, for a period of three (3) years. Hayward/Goldline also warrants its Aqua Trol chlorination products to be free of defects in materials and workmanship, under should always be followed, including the following: normal use and service for a period of one (1) year.
  • Page 3 "Check Salt" LED illuminated or flashing Be sure that the correct model Turbo Cell has been selected (page 7). Check salt level in pool/spa. If salt level is low, add salt according to chart on page 4. Before adding large quantities of salt, it is advisable to have your salt level profession- ally checked.
  • Page 4 Diagnostic Displays Sequential pushes of the small "diagnostic" button next to the LCD display will cause NOTE: Hayward does not recommend using the Aqua Rite to generate bromine. the Aqua Rite to display the following information: Aqua Rite chlorine generators operating with software version 1.50 or later are designed 1.
  • Page 5 GROUND Optional Hayward/Goldline, Pentair and Polaris controls: The Hayward/Goldline, Pentair and Polaris controls use a 4 wire connection to commu- nicate to the Aqua Rite and can be wired up to 500' apart. Any outdoor rated 4 conductor cable can be used. Refer to each manufacturer's instructions and the wiring diagrams below for proper wiring connection to the Aqua Rite.
  • Page 6 Wiring Salt Level Power must be shut off at the circuit breaker before performing any wiring. Be sure to Use the chart on page 4 to determine how much salt in pounds or (Kgs) need to be added ® follow Local and NEC electrical codes. To provide safe operation, the Aqua Rite must to reach the recommended levels.
  • Page 7 Plumbing ® Ensure that the Aqua Rite installation does not constitute a cross connection with the local potable water supply. Consult local plumbing codes. The Aqua Rite is packaged with a flow switch and cell unions. The cell must be pur- chased separately.
  • Page 8 INSTALLATION Installation must be performed in accordance with Local and NEC codes. AQUA RITE Aqua Rite 120/240 VAC POWER LDLINE CONTROLS INC. FROM FROM POOL POOL Preparing Pool/Spa Water Refer to page 1 for recommended chemical levels. The pool's chemistry must be bal- anced BEFORE activating the Aqua Rite ®...
  • Page 9 REMOTELY CONTROLLED When illuminated, indicates that a remote pool auto- with a high pressure garden hose. If any deposits are still visible, repeat soaking and mation control (Hayward/Goldline Pro Logic, Pentair Intellitouch, Polaris Eos, etc.) rinsing. Replace cell and inspect again periodically.
  • Page 10 The Temperature Display shows the current temperature of the pool water. The factory When connected to a pool automation control (Hayward/Goldline Pro Logic, Pentair default display is in ºF. Both the Temperature Display and the Salt Display can be Intellitouch or Polaris Eos): programmed to display in Metric units.
