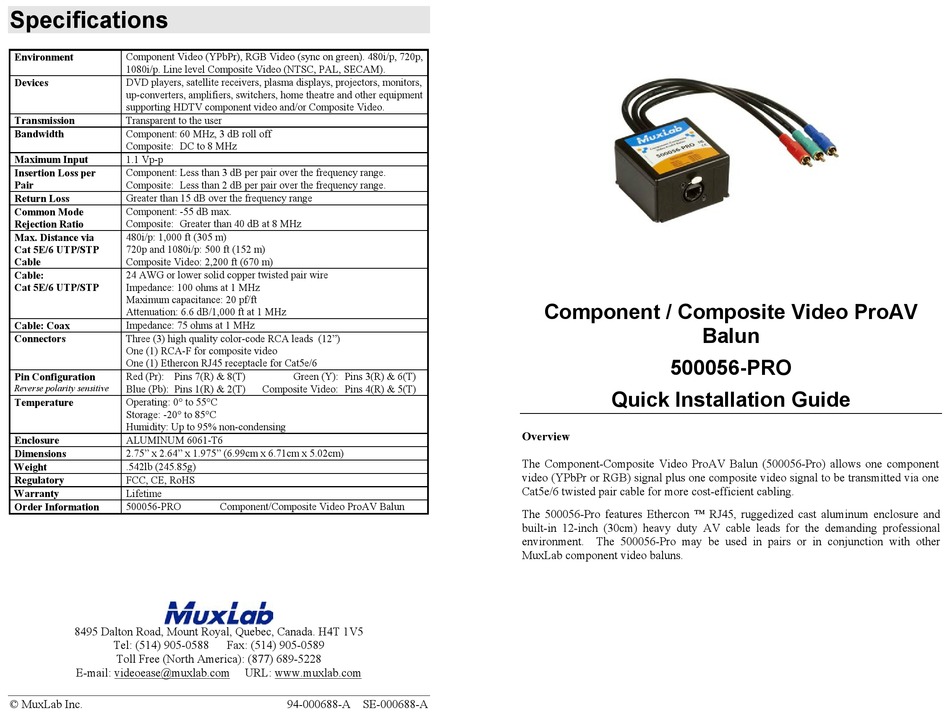

MuxLab 500056-PRO Quick Installation Manual

Specifications
Environment Component Video (YPbPr), RGB Video (sync on green). 480i/p, 720p,
1080i/p. Line level Composite Video (NTSC, PAL, SECAM).
Devices DVD players, satellite receivers, plasma displays, projectors, monitors,
up-converters, amplifiers, switchers, home theatre and other equipment
supporting HDTV component video and/or Composite Video.
Transmission Transparent to the user
Component: 60 MHz, 3 dB roll off
Bandwidth
Composite: DC to 8 MHz
Maximum Input 1.1 Vp-p
Insertion Loss per Component: Less than 3 dB per pair over the frequency range.
Pair Composite: Less than 2 dB per pair over the frequency range.
Return Loss Greater than 15 dB over the frequency range
Common Mode Component: -55 dB max.
Composite: Greater than 40 dB at 8 MHz
Rejection Ratio
Max. Distance via 480i/p: 1,000 ft (305 m)
Cat 5E/6 UTP/STP 720p and 1080i/p: 500 ft (152 m)
Cable Composite Video: 2,200 ft (670 m)
Cable: 24 AWG or lower solid copper twisted pair wire
Cat 5E/6 UTP/STP Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Cable: Coax Impedance: 75 ohms at 1 MHz
Connectors Three (3) high quality color-code RCA leads (12")
One (1) RCA-F for composite video
One (1) Ethercon RJ45 receptacle for Cat5e/6
Pin Configuration Red (Pr): Pins 7(R) & 8(T)
Reverse polarity sensitive Blue (Pb): Pins 1(R) & 2(T)
Operating: 0° to 55°C
Temperature
Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
ALUMINUM 6061-T6
Enclosure
Dimensions 2.75" x 2.64" x 1.975" (6.99cm x 6.71cm x 5.02cm)
Weight .542lb (245.85g)
Regulatory FCC, CE, RoHS
Lifetime
Warranty
Order Information 500056-PRO
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Green (Y): Pins 3(R) & 6(T)
Composite Video: Pins 4(R) & 5(T)
Component/Composite Video ProAV Balun
Fax: (514) 905-0589
URL: www.muxlab.com
94-000688-A SE-000688-A
Component / Composite Video ProAV
500056-PRO
Quick Installation Guide
Overview
The Component-Composite Video ProAV Balun (500056-Pro) allows one component
video (YPbPr or RGB) signal plus one composite video signal to be transmitted via one
Cat5e/6 twisted pair cable for more cost-efficient cabling.
The 500056-Pro features Ethercon  RJ45, ruggedized cast aluminum enclosure and
built-in 12-inch (30cm) heavy duty AV cable leads for the demanding professional
environment. The 500056-Pro may be used in pairs or in conjunction with other
MuxLab component video baluns.
Balun
