MuxLab 500039-2PK Quick Installation Manual

Specifications
Environment Composite video (NTSC, PAL, SECAM) equipment
Devices DVD players, VCR, satellite receivers, MPEG players, laptops,
notebooks, monitors, LCD projectors, CCD cameras, video switchers,
sequencers, digital video servers, video multiplexers, video splitters,
video converters and other composite video equipment.
Transmission Transparent to the user
Composite Video
Bandwidth DC to 6 MHz
Impedance 75 ohms
Max. Input 1.1 Vp-p
Insertion Loss Less than 2 dB per pair over the
frequency range from DC to 6 MHz
Return Loss Better than 15 dB over the frequency
range
Greater than 40 dB over the
Common Mode Rejection
Ratio (CMRR) frequency range
Max. Distance via 2,200 ft (670 m)
Cat 5E/6 UTP/STP Cable
Video: Pins 7(R) & 8(T)
Pin Configuration (RJ45)
Reverse Polarity Sensitive
Cable: 24 AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Cat 5E/6 UTP/STP
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Connectors One (1) RCA-M for video (yellow)
Two (2) RCA-M for stereo audio (red, white)
One (1) RJ45 for Cat 5E/6
Temperature Operating: 0º to 55º C
Storage:- 20º to 85º C
Humidity: Up to 95% non-condensing
Enclosure Fire retardant plastic
Dimensions 2.40" x 2.25" x 1.00" (6.10 x 5.72 x 2.54 cm) plus 6" (15 cm) cable
leads for video and stereo audio
Weight 3.1 oz (89 g)
Warranty Lifetime
500039 Stereo Hi-Fi/Video Balun
Order Information
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Audio
20 Hz to 20 kHz over the
distance range
600 ohms min.
1.1 Vp-p
Less than 2 dB per pair over the
frequency range
N/A
N/A
3,250 ft (990 m)
Audio 1: Pins 1(R) & 2(T)
Audio 2: Pins 3(R) & 6(T)
Fax: (514) 905-0589
URL: www.muxlab.com
94-000393-B SE-000423-B

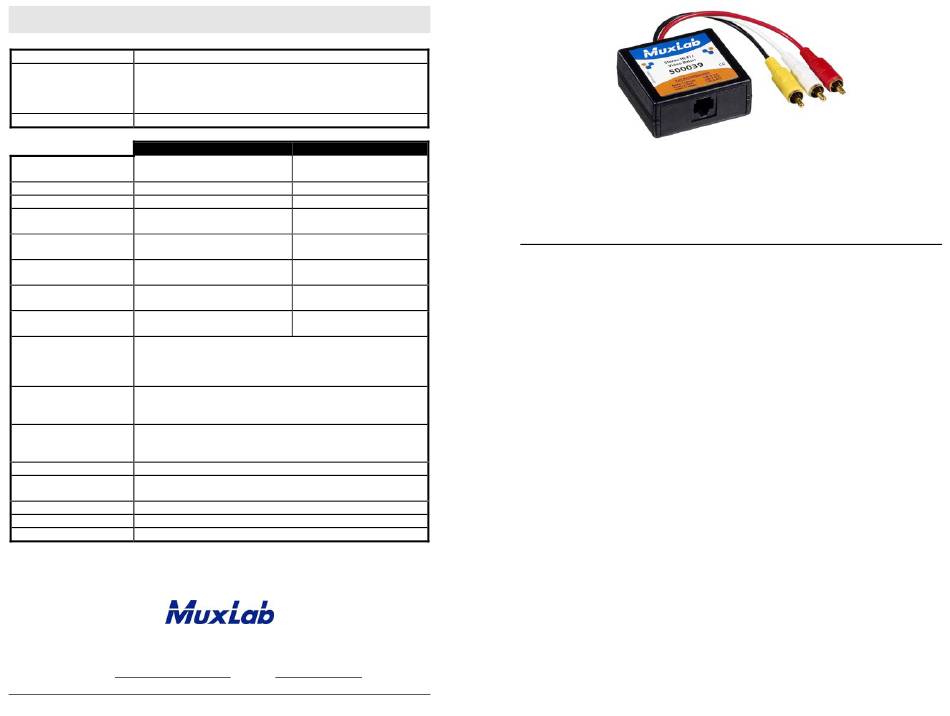

Stereo Hi-Fi / Video Balun
500039
Quick Installation Guide
Overview
The Stereo Hi-Fi/Video Balun (500039) allows a single composite video signal to be
transmitted via an unshielded twisted pair (UTP) cable up to 2,200 ft (670m) in a point-
to-point connection. The Stereo Hi-Fi/Video Balun features full audio bandwidth
response for high fidelity applications and features built-in color-coded cable leads for
ease of installation. The Stereo Hi-Fi/Video Balun also works in conjunction with
MuxLab's Audio-Video Distribution Hub (500200) to allow composite video
programming to be distributed via UTP. Applications include: Classroom video
distribution, commercial and home audio/video systems, hospital video training, video
conferencing, and video kiosks.
