DETACHED VERSION, MODEL NO.: HN020-01V / HN021-01V / HN022-01
PRODUCT TYPE:
OPERATING VOLTAGE:
HF SYSTEM:
DETECTION ANGLE:
POWER CONSUMPTION:
DETECTION RANGE (DxH):
HOLD TIME:
DAYLIGHT SENSOR:
STAND-BY PERIOD:
STAND-BY DIMMING LEVEL:
MOUNTING:
WORKING TEMP.:
MODEL:
Microwave mount
Silica gel soft
HYTRONIK INDUSTRIAL LIMITED
Room D, 10/f, Tower A, Billion Center, 1 wang Kwong Road,
Kowloon Bay, Kowloon, Hongkong
T: 00852-35197525
E: info@hytronik.com

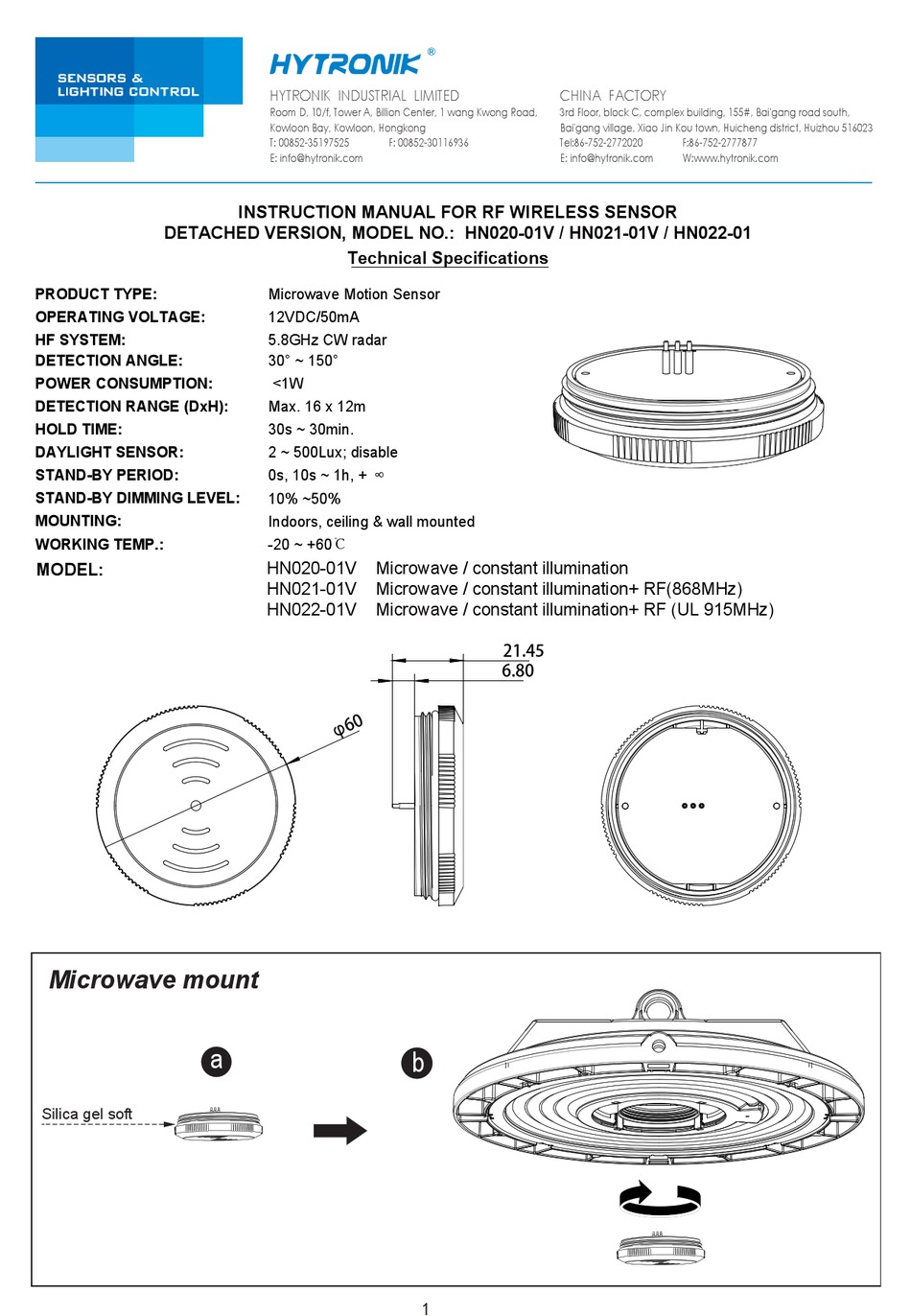

INSTRUCTION MANUAL FOR RF WIRELESS SENSOR
Technical Specifications
Microwave Motion Sensor
12VDC/50mA
5.8GHz CW radar
30° ~ 150°
<1W
Max. 16 x 12m
30s ~ 30min.
2 ~ 500Lux; disable
0s, 10s ~ 1h, + ∞
10% ~50%
Indoors, ceiling & wall mounted
-20 ~ +60
℃
HN020-01V
Microwave / constant illumination
HN021-01V
Microwave / constant illumination+ RF(868MHz)
HN022-01V
Microwave / constant illumination+ RF (UL 915MHz)
a
CHINA FACTORY
3rd Floor, block C, complex building, 155#, Bai'gang road south,
Bai'gang village, Xiao Jin Kou town, Huicheng district, Huizhou 516023
F: 00852-30116936
Tel:86-752-2772020
E: info@hytronik.com
21.45
6.80
b
1
F:86-752-2777877
W:www.hytronik.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hytronik HN020-01V
Summary of Contents for Hytronik HN020-01V
- Page 1 T: 00852-35197525 F: 00852-30116936 Tel:86-752-2772020 F:86-752-2777877 E: info@hytronik.com E: info@hytronik.com W:www.hytronik.com INSTRUCTION MANUAL FOR RF WIRELESS SENSOR DETACHED VERSION, MODEL NO.: HN020-01V / HN021-01V / HN022-01 Technical Specifications PRODUCT TYPE: Microwave Motion Sensor OPERATING VOLTAGE: 12VDC/50mA HF SYSTEM: 5.8GHz CW radar DETECTION ANGLE: 30°...
- Page 2 Detection Pattern Ceiling mounting (m) Wall mounting (m) 10 12 14 16 18 20 high sensitivity area low sensitivity area high sensitivity area low sensitivity area SECTION 1 TYPICAL APPLICATIONS Typical Applications ULTRANIK HF motion detector The motion detector can turn on the light based on movement. With this detector built in, Daylight Harvest light is automatically on when needed and dimmed to preset level before it is totally off.
- Page 3 For staircase and corridor (master and slave) slave master slave master 100% 100% 100% 100% 100% 100% 100% 100% Corridor Corridor While the 1st sensor detects motion on the 1st floor, it The person walks to the 2nd floor, the 2nd Sensor switches the light on at 100% and sends signal to all slave highbay switches the light on at 100%.
- Page 4 3. Press button “Memory” to save all the settings programmed in the remote control. 4. Press button “Apply” to set the settings to each sensor unit(s). For example, to pre-set detection range 100%, daylight threshold Disable, hold time 5min, stand-by time +∞, stand-by dimming level 30%, the steps should be as follows: Press button Start, button 100%, Disable,...
- Page 5 FCC STATEMENT This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
