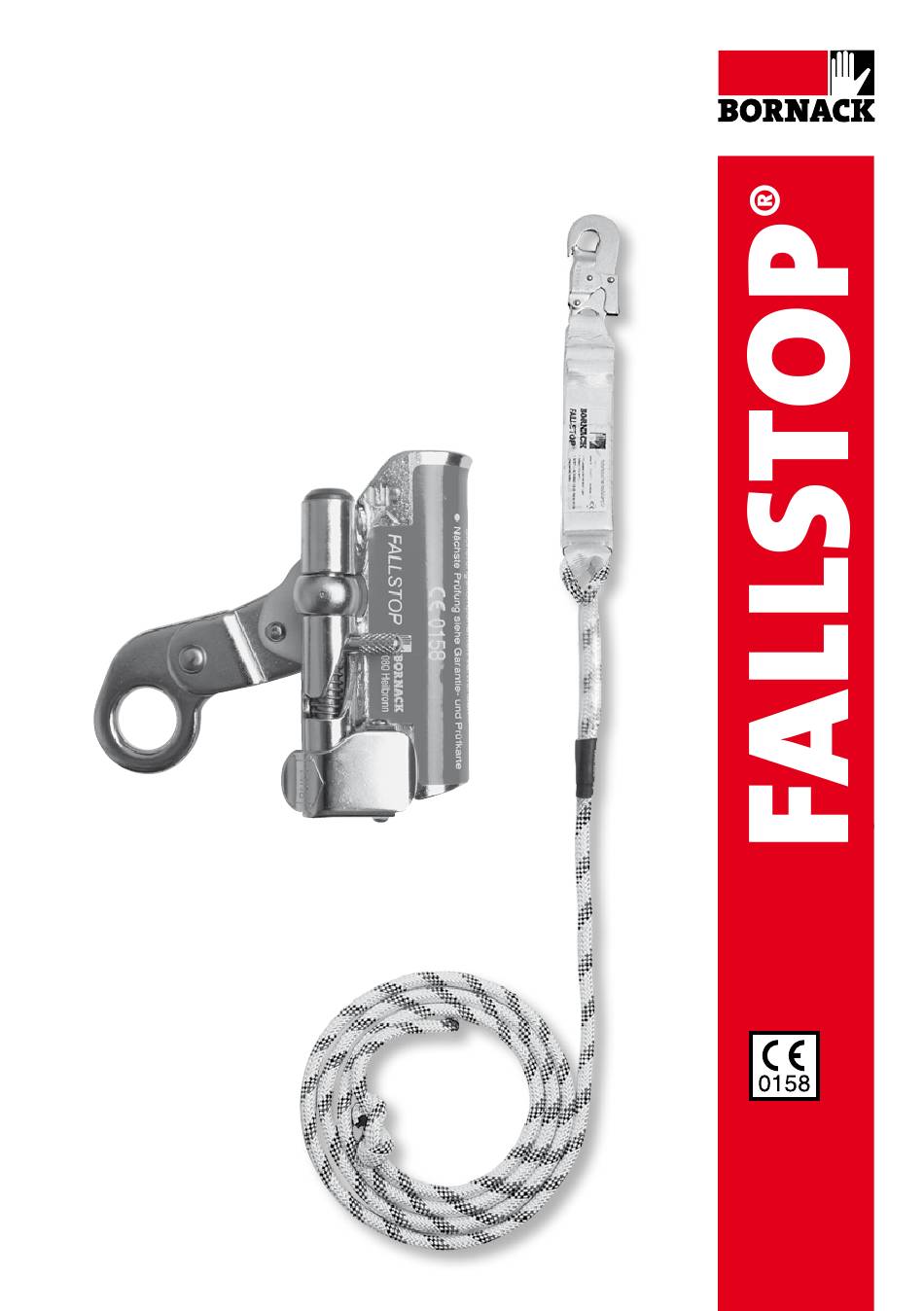

- Page 1 User Manual ROPSTOP 3 Guided type fall arrester including a flexible anchor line EN353-2 Energy absorber on the safety line or optionally on the Ropstop 3...
- Page 2 Variant: Tape fall arrester on the fall arrester Ropstop 3 Safety hook instead of a connector tape Tape fall arrester Splice with lock and ID – Rope length – Production date ROPSTOP 3 Fall arrester Locking pin Attachment Eye Releaser lever Flexible anchor line (safety rope) Rope end lock...
-
Page 3: Brief Description
Quality test: All other uses are deemed improper. The company • Quality assurance system by the manufacturer BORNACK will not be liable for any ensuing damages. The user bears the sole risk. Equipment: • Fall arrester in compliance with EN 353-2... - Page 4 Using the guided type fall arrester ROPSTOP 3 Place the ROPSTOP 3 into the flexible anchor line (safety line) Safety lock Hold the device in your open hand. The arrow must point UP. Attachment Eye Lift the releaser lever and push the locking pin downwards. Lock the locking pin into the 'park position'.
- Page 5 Using the guided type fall arrester ROPSTOP 3 Insert the anchor rope into the device and fold the device closed. Check the effective direction is correct: Arrow points UP! Push the locking pin out of the 'park position': the bayonet fastener will snap closed automatically! Check: Is the ROPSTOP 3 positioned correctly? The device must maintain its position on the rope and not slide downwards.
- Page 6 Attachment of the safety line Attach the end of the rope to the safety hook or the anchor rope so that the safety line hangs freely. Roll out the rope carefully. There may be no knots. 7,5 kN ( ^ = 750 kg) The rope may not twist against the given rope twists.
- Page 7 Attachment of the safety line Attachment to full body harness Hook the safety hook of the fall arrester to the anchor eye of the full body harness. In the event of a fall, the full body harness transfers the forces evenly onto the secured person. Securing a person from behind If possible, select an anchor point vertically above the standing surface...
-
Page 8: Safety Instructions
• This PPE has been tested for edge loads; however, writing by BORNACK. This must be documented in the this external load always represents a higher risk. test card. - Page 9 If you have any further questions about safe use of and a little detergent for delicates. this rope protection equipment or other BORNACK Then rinse thoroughly. No other cleaning agents may be services, such as: used! •...
- Page 10 Notes...
- Page 11 Notes...
- Page 12 Equipment for securing and rescuing at heights and depths SAFEPOINT Stationary securing systems for architecture and industrial applications BORNACK GmbH & Co.KG Bustadt 39 74360 Ilsfeld Germany Fon + 49 (0) 70 62 / 26 90 0-0 Fax + 49 (0) 70 62 / 26 90 0-550 info@bornack.de...
