- Page 1 Gravur mit Farbfüllung 6.12.17 Gehäuse RAILSTOP RS S06 Mitgeltende Beschriftungsdaten: Kennzeichnung/ Freigegeben Branding User Manual 0158 EN 353-1:2014+A1:2017...
-
Page 2: Brief Description
The fall arrester RAILSTOP RS S06 may only be used in combination with the tested rail guide. It may only be used to secure persons and may not be used to transport loads. - Page 3 • Push-in lock to prevent twisted insertion of the fall arrester • Rail joint connector • Removal flap • Fall arrester RAILSTOP RS S06 • Resting platform (hinged) on the ladder • Roof exit with reinforcement spar For more information, please refer to the product information for the listed accessories.

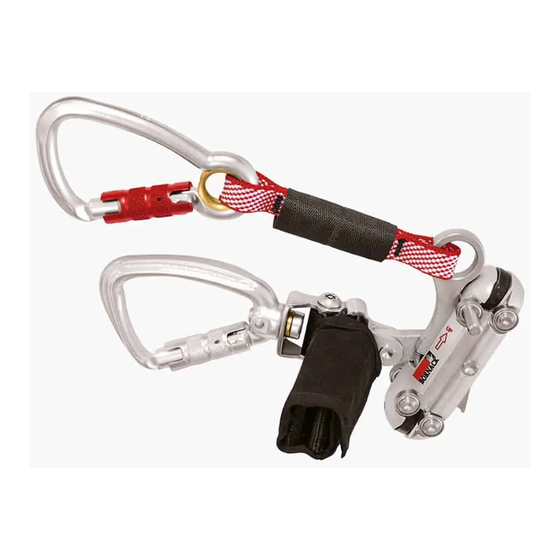

- Page 4 4 | 5 BRIEF DESCRIPTION FALL ARRESTER PARTS • Aluminium casing. • Separate pawls to protect against falls and tilting: - Pawl A 'Climb' made of stainless steel with a polyamide tape energy absorber and an aluminium karabiner with a Twistlock-Plus fastener and swivel.
- Page 5 RAILSTOP RS S06 Locking pin to prevent wrong insertion into rail Karabiner B for hooking into the D-ring at chest Label bag with Large roller height (sternal) identification with ball bearings Lanyard Identification Pawl A 'Climb' Tape energy absorber with identification...
- Page 6 6 | 7 LADDER SECURING DEVICE FIXED Climbing path Climbing path end with securing device Securing device C-profile rail CURING DEVICE CAN BE OPENED Locking pin Locking SECURING DEVICE Ladder spoke Securing device Climbing path start or rail joint connector RESTING PLATFORM REMOVAL FLAP Removal flap...
-
Page 7: Information Before Use
• Identification is legible. by BORNACK for inspection. Faulty PPE may • Check to ensure that all rails, ladder attach- only be tested or repaired by BORNACK or in a ments, exit and entry securing points, removal workshop authorised by BORNACK. - Page 8 8 | 9 RAILSTOP RS S06 IN USE PREPARATION A Insert a fall arrester at the end of the rail or at the removal point in the rail profile. Pull the locking pin of the climbing lock downwards and hold. Guide the fall arrester, with the pin pointing to the right, into the C-profile and past the locking pin.
- Page 9 RAILSTOP RS S06 IN USE Use the full body harness acc. to EN 361 with a sternal fall arrester D-ring and a ventral multifunctional D-ring, and observe the User Manual of the full body harness. Adjust the full body harness to the wearer's physical size.
- Page 10 10 | 11 RAILSTOP RS S06 IN USE COMBINATION F When combining this product with other parts, there is a risk of mutual impairment with respect to the function and safety. Compatibility must be assessed during the risk analysis. Only combine with personal protective equipment that bears a CE symbol.
- Page 11 RAILSTOP RS S06 IN USE USING THE FALL ARRESTER CAUTION: Before using, ensure adequate clearance below the user to prevent impact on a protruding object or the ground. CAUTION: When starting to ascend near the ground (approx. 1.5 m), it is possible, under unfavou- rable circumstances, that the legs will hit the ground when the fall is arrested.
- Page 12 12 | 13 RAILSTOP RS S06 IN USE CAUTION: The user weight incl. tools and equipment may not exceed 140 kg! CAUTION: The user weight without tools and equipment may not undercut 50 kg! CAUTION: When using the fall arrester, ensure that the function of the pawl and the attached parts is not impeded.
- Page 13 RAILSTOP RS S06 IN USE REMOVE FALL ARRESTER G Move the fall arrester close to the locking pin. Secure somewhere else if the user is not in a safe work position. Pull the locking pin back- wards. The locking pin in the C-profile is reset and releases the C-profile.
-
Page 14: Safety Instructions
BORNACK or by the exper t briefed by •Protect personal protective equipment BORNACK about the inspection, including the during storing, use and transportation against corresponding certificate. - Page 15 SAFETY INSTRUCTIONS • The local safety guidelines (e.g. in Germany, the DGUV Regulations 112-198 and 112-199 issued by the professional associations) and the accident prevention guidelines for the specific industry (UVV) must be observed.
-
Page 16: Regular Inspections
We will be happy to help! REGULAR INSPECTIONS MAINTENANCE • This PPE must be inspected by BORNACK or an by the expert briefed by BORNACK about the • If necessary, apply a small amount of oil on inspection at least once a year, including the the joints so that the moving parts of the corresponding certificate. - Page 17 The following recommendation applies for the about the inspection of the device. use of the RAILSTOP RS S06: Information about the typical application Maximum usage period after being used for situations must be provided.
- Page 18 18 | 19 OTHER REPAIRS • For reasons of liability, repairs may only be carried out by BORNACK or in a workshop authorised in writing by BORNACK. • Only original spare parts from the manufac- turer may be used. STORAGE •...
-
Page 19: Product Identification
OTHER PRODUCT IDENTIFICATION The following identification is on the product: Identification basic unit Front side: Rear side: Running Data direction matrix Serial no. (total system) Production Contact Logo date (total (total system) system) Product name... - Page 20 20 | 21 OTHER Identification Label bag Lanyard: CE symbol and number Observe/read the of the test office User Manual Product type Article number Charge (Lanyard) Product name Product type Logo User weight Matching Manufacturer Data matrix climbing address EN-Norm Production date Serial number systems...
- Page 21 OTHER Identification ladder: Language code Product name/ type Product type Logo pursuant to ISO 639-1 Product name/ Application temperature range type Repair Contact Inspection Year of assembly Only use ladders with a fall Norm arrester and full body harness Production Observe/read the User Manual Permissible...
-
Page 22: T E S T C A R D
22 | 23 T E S T C A R D FOR ANNUAL MONITORING The test list and the corres- Type RAILSTOP RS S06: ____________________________ ponding certificate must be completed in full during the Production date: __________ __________ __________ annual inspection by the... - Page 23 T E S T C A R D FOR ANNUAL MONITORING Please complete: year year year year year year year year Straps undamaged? No chemical soiling? Seams undamaged? No deformation of metal parts? Karabiners are in place & fully functional? Condition of the springs/ rivets/axes OK? No corrosion damage?
- Page 24 24 | 25 T E S T C A R D FOR ANNUAL MONITORING The test list and the corres- Rail/ladder type: _______________________________ ponding certificate must be completed in full during the Production date: __________ __________ __________ annual inspection by the expert briefed by the manu- Charge: ____________...
- Page 25 T E S T C A R D FOR ANNUAL MONITORING Please complete: year year year year year year year year year year Identification and warnings in place? Was an inspection tour carried out? No damage/deformation of the guide rail/ladder? Attachment straps undamaged? Attachment bracket and attach- ment material show no signs of...
- Page 26 26 | 27 T E S T C A R D FOR ANNUAL MONITORING Please complete: year year year year year year year year year year Were only original parts used? User Manual available? Blocked...
-
Page 27: Eu Declaration Of Conformity
EU DECLARATION OF CONFORMITY... - Page 28 Tel + 49 (0) 70 62 / 26 90 0-0 Fax + 49 (0) 70 62 / 26 90 0-550 info@bornack.de www.bornack.de © BORNACK – Subject to technical changes Reprinting, even of excerpts, is only permitted with written consent Status: 12/2019 GAL Nr. 000 164 anh...
