Connection of line choke

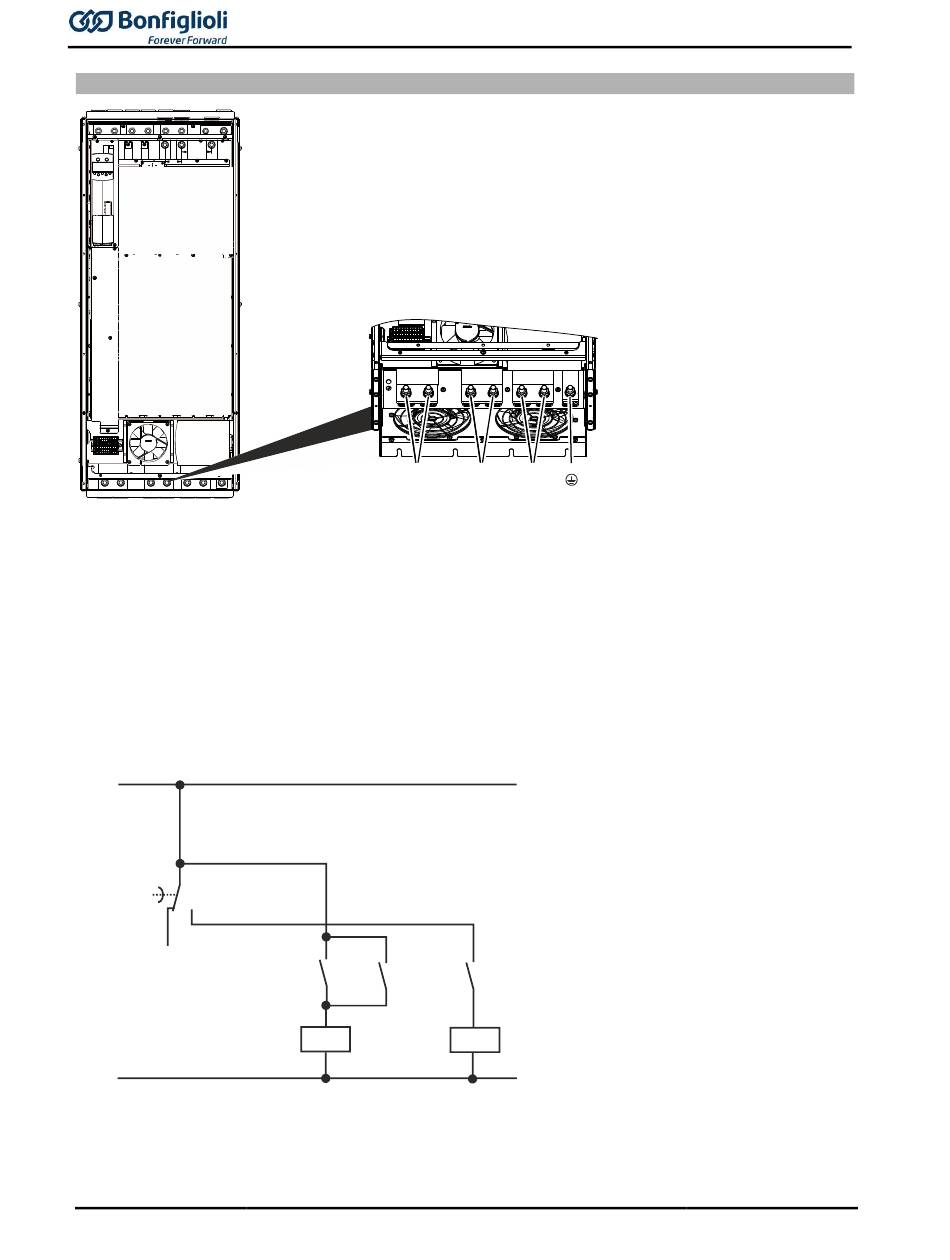

Figure 8-9: Connection of feed-back unit line choke, size 8
8.3.4.3 Network access
The AEC feed-back unit requires separate wiring for mains connection.
The mains contactor K2 must be controlled by relay output X10. When the mains contactor K2 was switched
off, it must be ensured that the DC link is discharged before the mains contactor K2 can be switched on
again.
Relay output X10 will be active once the pre-charging operation in the DC-link has been completed. If the
DC-link voltage does not reach a certain level, relay output X10 will remain in idle state.
ZK+
13
14
2
AEC
X10
1 3
X/Y/Z
Mains contactor K2 must be designed for the maximum expected braking power of the drive.
70
L1
13
23
K3
K1 K3
14
24
A1
K3
K2
A2
Operating Instructions AEC
L2 L3
23
24
A1
A2
