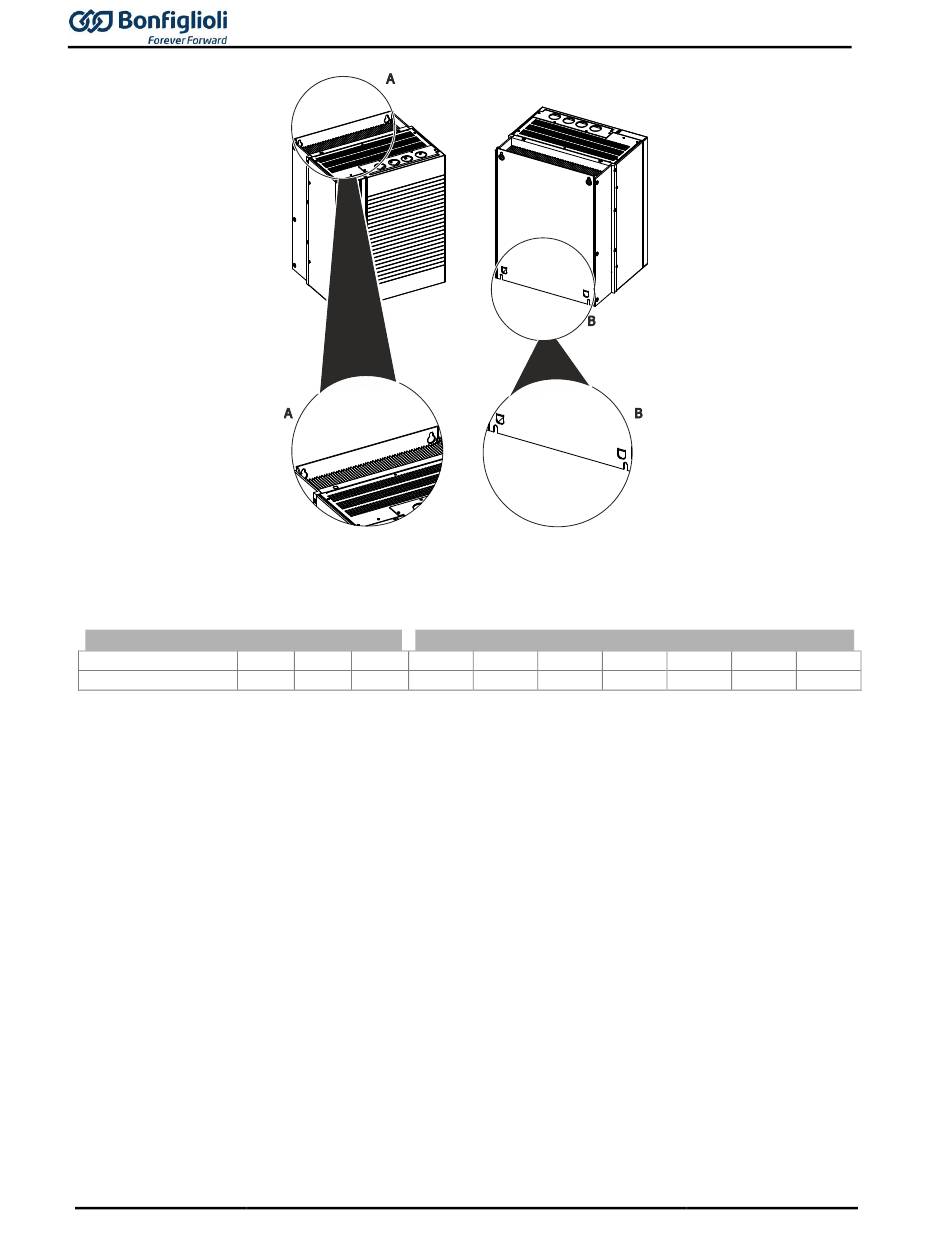

Assembly is done by screwing the back wall of the device to the assembly panel. The dimensions of the
device and the installation dimensions are those of the standard device without optional components and
are given in millimeters.
The diameter of the fixing holes is 9 mm.
Dimensions [mm]
Assembly dimensions [mm]
AEC 401
a
b
c
a1
b1
b2
b3
c1
c2
c3
-43/-45/-47/-49
510
412
351
480
392
382
342
338
305
110
48
Operating Instructions AEC
11/17
