Size 6

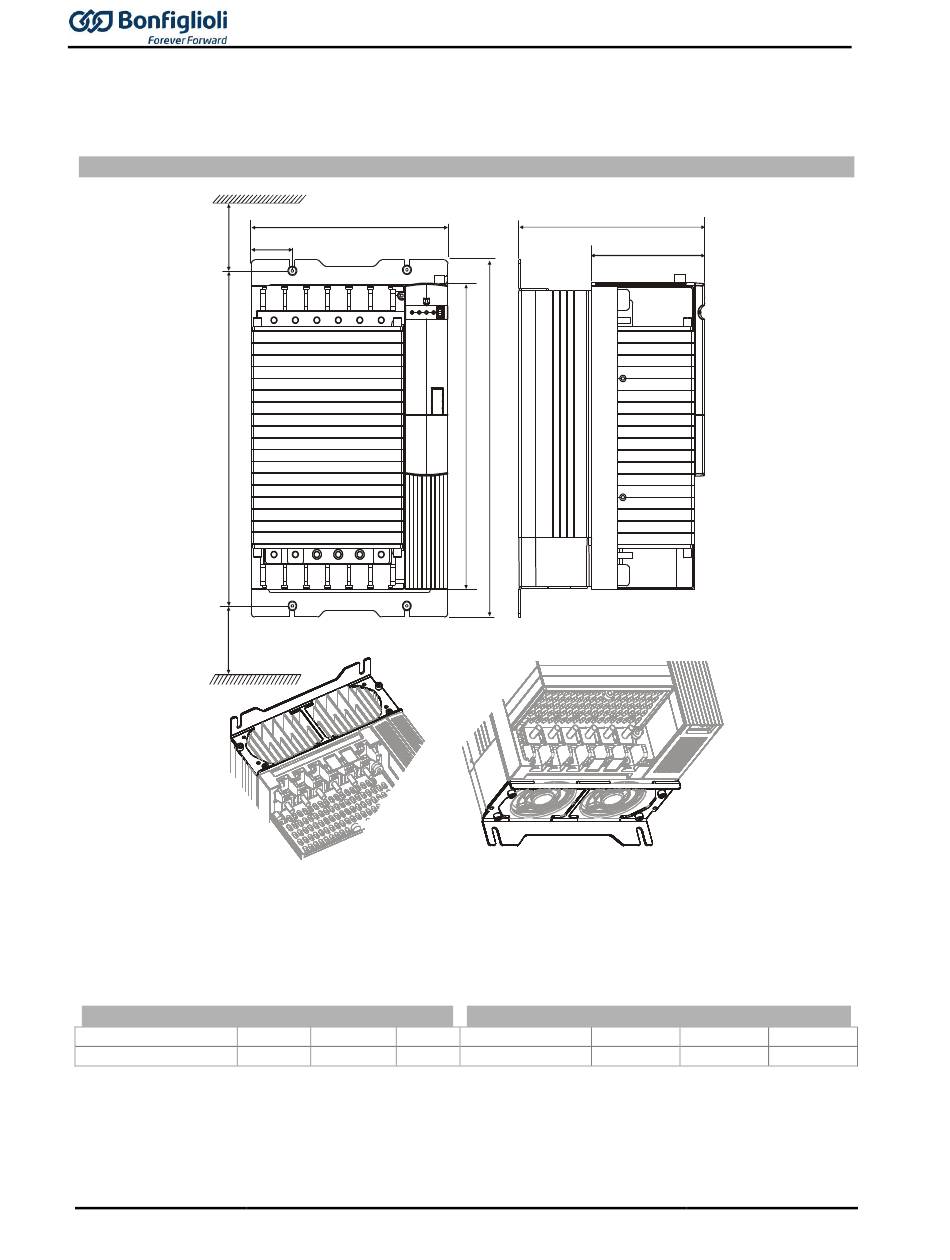

The frequency inverter is mounted in a vertical position on the assembly panel by means of the standard
fittings. The following illustration shows the standard fitting.
x
a1
x
Befestigungswinkel oben
(Befestigung mit Schrauben
Assembly is done by screwing the two fixing brackets to the heat sink of the device and the assembly panel.
The devices are provided with fixing brackets, which are fitted using four thread-cutting screws. The
dimensions of the device and the installation dimensions are those of the standard device without optional
components and are given in millimeters.
Dimensions [mm]
AEC 401
-33/-35/-37/-39
46
Standard installation
b
b1

x 100 mm
M5x20 )
a b c
400 275 260
Operating Instructions AEC
c
a a2
Befestigungswinkel unten
(Befestigung mit Schrauben
Assembly dimensions [mm]
a1 a1
425 ... 445 470
c1
M5x20 )
b1 c1
20 160
