6 Technical data

6.1

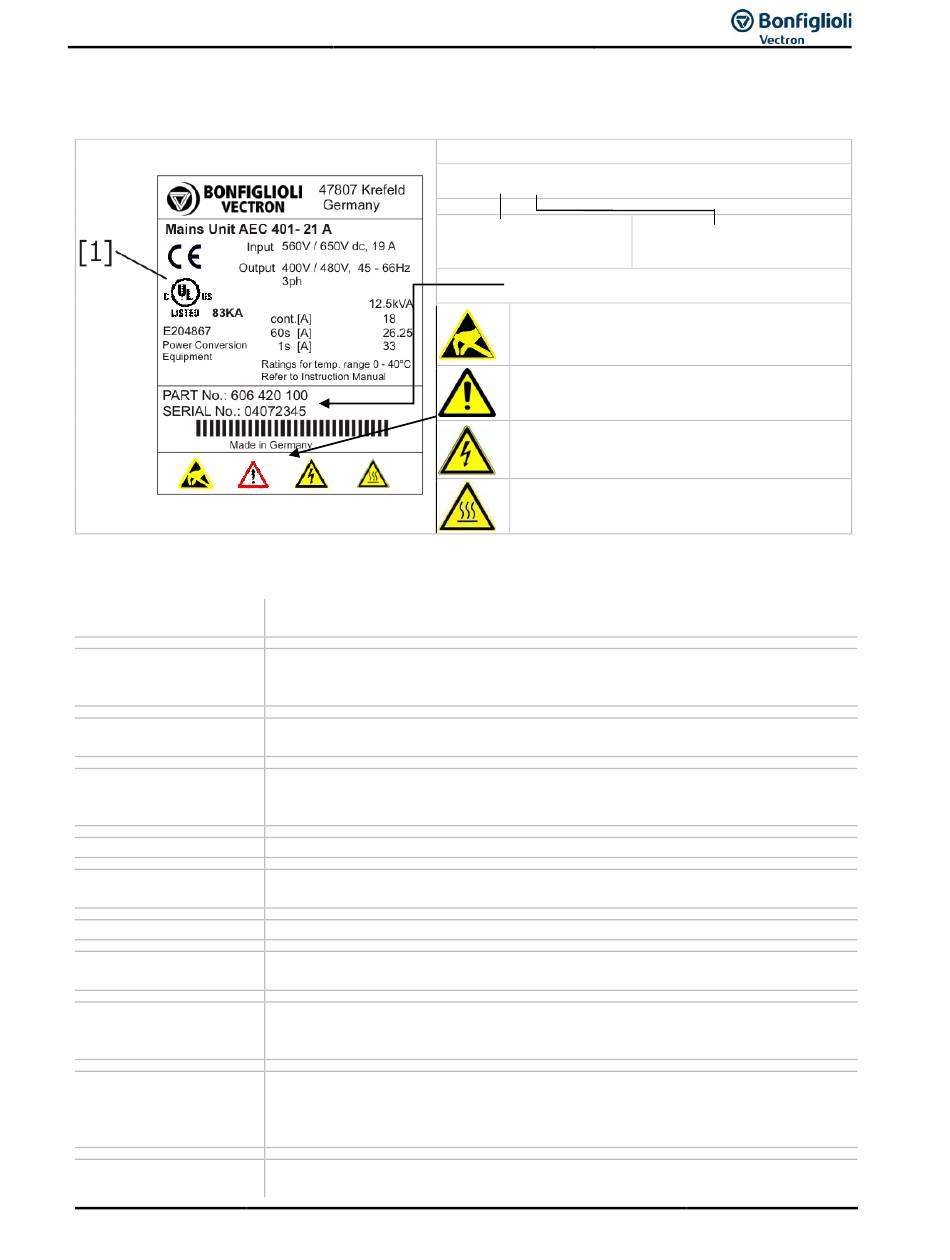

Rating plate

[1] Marking for UL508c (where applicable).
6.2

General technical data

CE conformity
EMC directive
Interference immunity
UL Approval
Ambient temperature
Environmental class
Ingress protection rating
Altitude of installation
Storage
Overload capacity
Parameterization
11/17
Type designation
AEC-401-21
Nominal voltage
401 = 400 V
The AEC mains unit meet the requirements of the Low Voltage Directive 2006/95/EEC
and EN 50178 / DIN VDE 0160 and EN 61800-2.
For proper installation of the mains unit in order to meet the requirements of
EN 61800-3, please comply with the installation instructions in these Installation
Instructions.
The AEC mains unit meets the requirements of EN 61800-3 for use in industrial
environments.
The frequency inverters are also marked with the UL label according to UL508c,
which proves that they also meet the requirements of the CSA Standard C22.2-No.
14-95.
Operation: 0...55 °C; as from 40 °C power reduction should be considered.
Operation: 3K3 (EN60721-3-3)
Relative humidity 15...85%, no water condensation
IP20 if covers and connection terminals are used properly.
Up to 1000 m at nominal specifications.
Up to 4000 m at reduced power.
Storage according to EN 50178.
Bonfiglioli Vectron recommends that the unit be connected to nominal voltage for 60
minutes after one year, at the latest.
Continuous operation 100% I
Up to 150% I for 60 s
N
Up to 200% I for 1 s
N
Overload capacity can be used every 10 minutes.
Freely programmable digital inputs and outputs.
Four separate data sets
Operating Instructions AEC
Recommended power
Part number & serial number
Warning! Components sensitive
to electrostatic discharge.
Warning! High leakage current.
Warning! Dangerous voltage. Danger of electric
shock.
Warning! Hot surfaces.
N
29
