Creative Playthings WILL9WPP10 Quick Manual

CHILDHOOD STARTS HERE
The components of this gym can be combined with others to create different play sets. This is the best order of assembly to
create this specific set. Read this sheet and all instructions included with the different parts before assembly.
See the Instructions and Owner's Manual included in carton 63006-445 for important safety information.
Cartons for this Play Set:
1 63006-421 Williamsburg Box 1 (Hardware)
1 63006-422 Williamsburg Box 2
1 63006-423 Williamsburg Box 3
1 63006-445 Williamsburg Wood Roof (Hdwre & Instr)
1 SH946-102 Access Ladder, 5ft
1 AG942-400 Access Ladder Handles (Hdwre & Instr)
1 63058-202 4 Position Swing Beam
1 63060-222 9ft Swing Beam Legs (Hdwre & Instr)
1 50546-777 3 Swings, 1 Trapeze
1 15166-400 10 ft. Super Wave Slide
1 AG943-400 Slide Handle (Hdwre & Instr)
1 SM964-402 Gable Fans (Hdwre & Instr)
1 SM963-402 Dormer (Hdwre & Instr)
1 AA917-603 Fireman's Pole (Hdwre & Instr)
1 AH201-102Q Rock Climbing Wall (Hdwre & Instr)
1 SC908-800Q Williamsburg Play Floor (Hdwre & Instr)
2 40456-402 End Panel Assembly
1 40457-402 Side Window Panel
1 40458-402 Door Panel (Hardware)
1 63079-102 Monkey Bars (Hdwre & Instr)
© Copyright 2018, Creative Playthings
WILL9WPP10

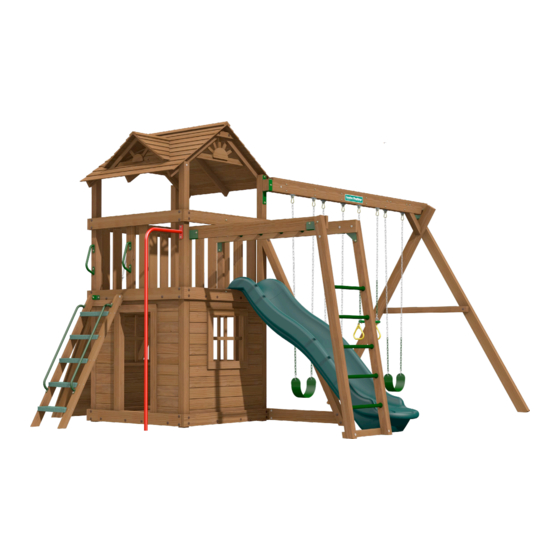

Williamsburg Premium Pack 10
• Start by assembling the Williamsburg tower. Instructions and
hardware are in the cartons noted at left.
• Wait to install the Access Ladder, Slide, and Wall Slats until after
the rest of the play set is complete.
• Wmsbg step 7. Do not install the safety rail. It is not needed.
• Wmsbg step 8. Do not install the angle braces. The braces will
not fit with the clubhouse panels.
• Wmsbg step 15. No Swing Mount is needed.
After completing the tower except Access Ladder, Slide, and Wall
Slats:
• Using a ladder, install the Dormer (SM963-402) in the position
shown. Ladder access may be obstructed by later installations.
• Install the Gable Fans (SM964-402).
• Install the 9ft Swing Beam. Instructions are in carton 63060-222.
• Install the Play Floor (SC908-800Q).
• Install the Clubhouse panels (40456-402, 40457-402, 40458-
402) in the positions shown.
Dimensions of assembled package:
19' 7" wide x 15' 5" deep x 11' 6" tall
WILLIAMSBURG PREMIUM PACK 10
WILL9WPP10-100 Rev A (04-18)
