Symmons Dia SLS-3512 Series Installation Brief

Lavatory Faucet
Installation Brief

Model Numbers

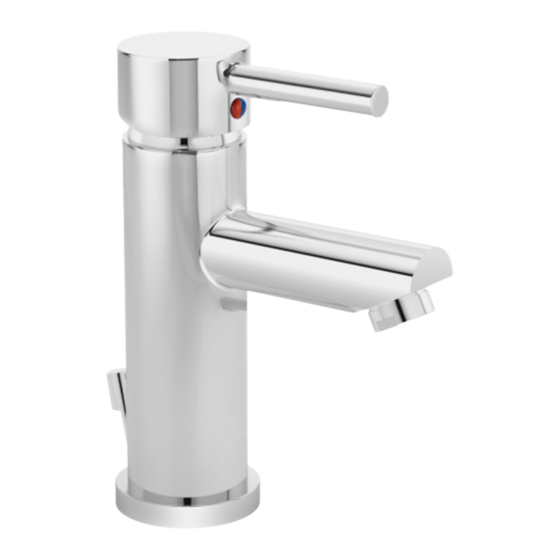

Lavatory faucet with lift
SLS-3512
rod and pop-up drain
Lavatory faucet only
SLS-3510

Decorative Finishes

Append finish suffix code to replacement
part numbers when applicable
- Polished chrome (standard)

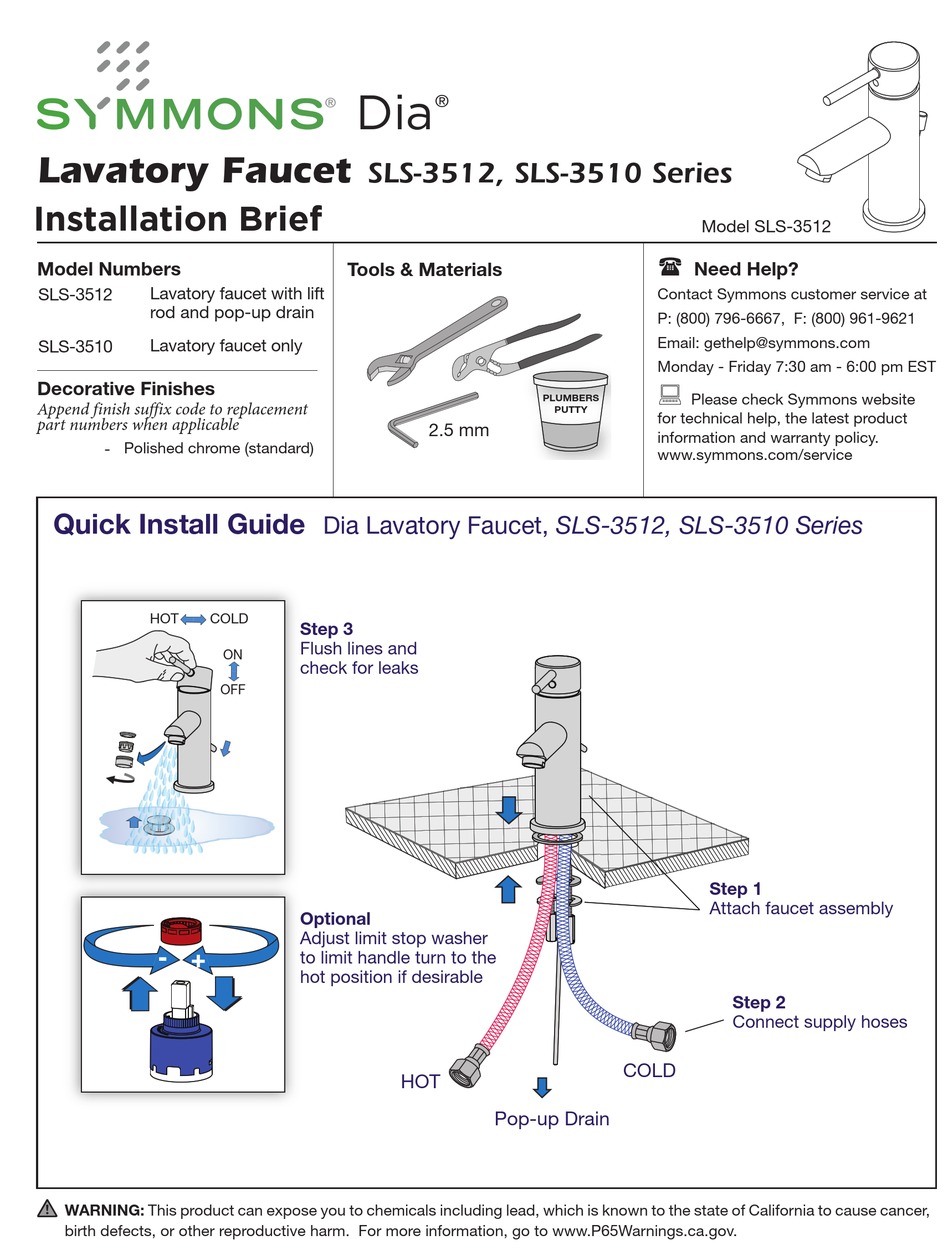

Quick Install Guide

HOT COLD
-
+
WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer,
birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Dia
SLS-3512, SLS-3510 Series
Tools & Materials
Dia Lavatory Faucet, SLS-3512, SLS-3510 Series
Step 3
Flush lines and
ON
check for leaks
OFF
Optional
Adjust limit stop washer
to limit handle turn to the
hot position if desirable
®
PLUMBERS
PUTTY
2.5 mm
HOT
Pop-up Drain
Model SLS-3512

Need Help?
Contact Symmons customer service at
P: (800) 796-6667, F: (800) 961-9621
Email: gethelp@symmons.com
Monday - Friday 7:30 am - 6:00 pm EST

Please check Symmons website
for technical help, the latest product
information and warranty policy.
www.symmons.com/service
Step 1
Attach faucet assembly
Step 2
Connect supply hoses
COLD
