Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be
sure you have all needed parts and know where they go.
If question exist, please call us @1-800-222-7023. We will be happy to answer any questions concerning this product.
Check all fasteners for proper torque. Check to ensure for adequate clearance between all components.
Check and retighten wheels at 50 miles and again at 500 miles. Periodically check all hardware for tightness.

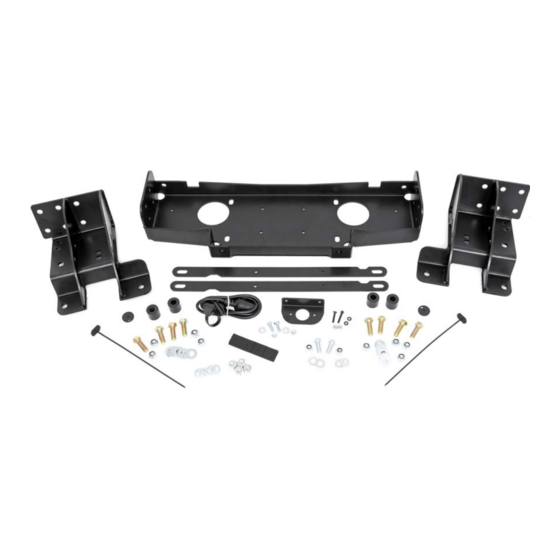

KIT CONTENTS:
1-Winch Plate
1– Drivers Side Winch Plate Mount
1– Pass. Side Winch Plate Mount
2– Cross Bars
1- Remote Extension Bracket
1-Remote Wire Extension
2– Power Steering Cooler Ties
Torque Specs:
Size
Grade 5
5/16"
15 ft/lbs
3/8"
30 ft/lbs
7/16"
45 ft/lbs
1/2"
65 ft/lbs
9/16"
95 ft/lbs
5/8"
135ft/lbs
3/4"
185ft/lbs
Thank you for choosing Rough Country for all your vehicle needs.
7/16-14 x 1 1/4 Hex Head Bolts x 8
3/8-16 x 1 Hex Head Bolts x2
1/4-20 x 3/4 Hex Head Bolts x 2
Grade 8
Size
20ft/lbs
6MM
35ft/lbs
8MM
60ft/lbs
10MM
90ft/lbs
12MM
130ft/lbs
14MM
175ft/lbs
16MM
280ft/lbs
18MM
JEEP 2017-19 WK2 Hidden Winch Kit
HARDWARE INCLUDED:
7/16 flat Washers x 16
7/16-14 Nylock Nuts x 8
3/8 Flat Washers x 4
3/8-16 Nylock Nuts x 2
1/4 flat washers x 2
1/4-20 Nylock Nuts x 2
Black Cable Ties x 4
10-1.5mm Nuts x 4
10mm Flat Washers x 4
Class 8.8
Class 10.9
5ft/lbs
18ft/lbs
23ft/lbs
32ft/lbs
45ft/lbs
55ft/lbs
75ft/lbs
85ft/lbs
120ft/lbs
130ft/lbs
165ft/lbs
170ft/lbs
240ft/lbs
TOOLS NEEDED:
Auto trim puller
Drill motor
3/4 drill
Body saw
Sander or file
Painters Tape
Permanente marker
Side cutters
Flat head screw driver
9/64 allen wrench
8mm wrench
10mm socket
13mm socket
14mm socket
19mm wrench and socket
7/16 wrench and socket
9/16 wrench and socket
5/8 wrench and socket
9ft/lbs
921106060
ratchet
