Hard Folding Cover
Fits:

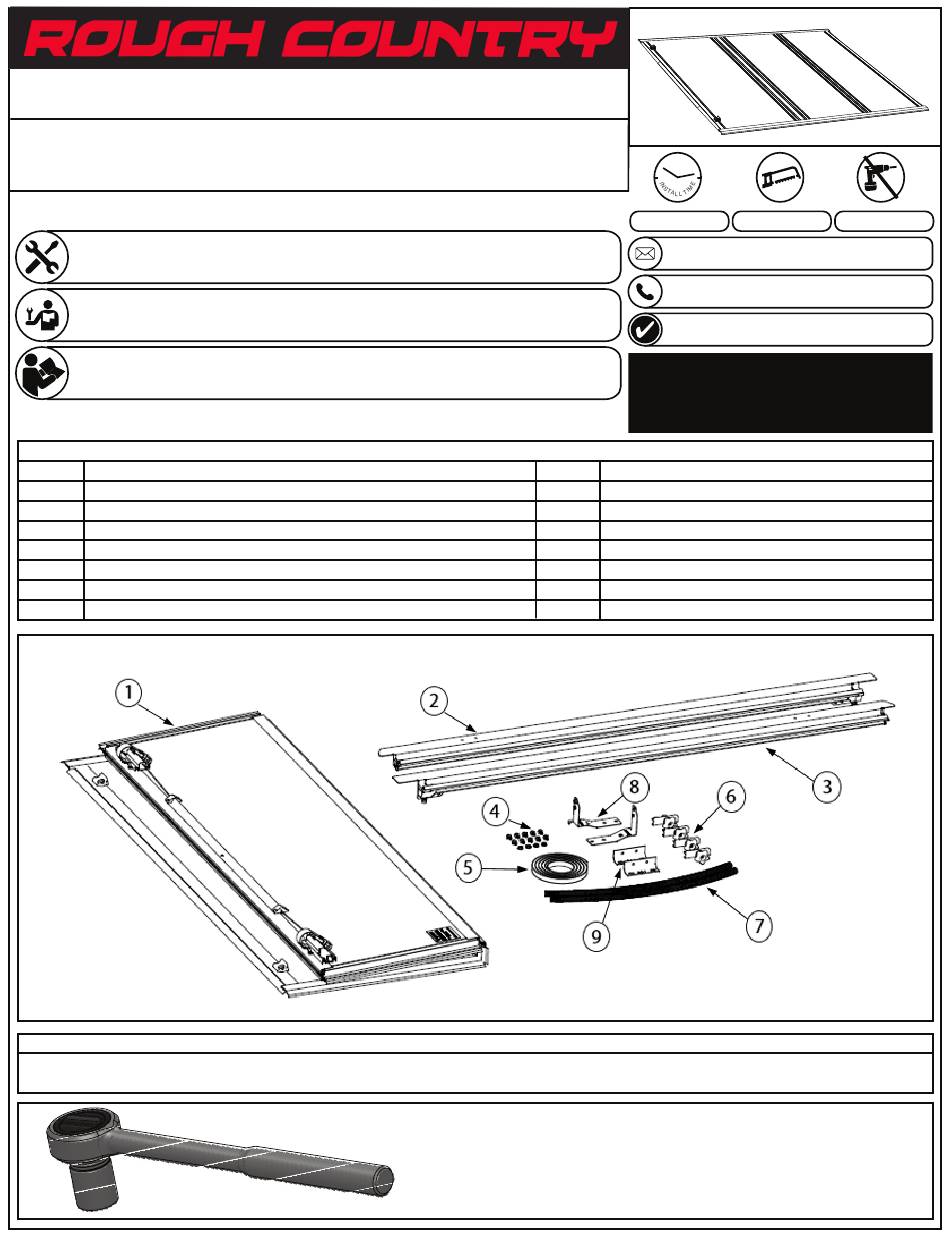

47620500- 2020-Current Jeep Gladiator JT

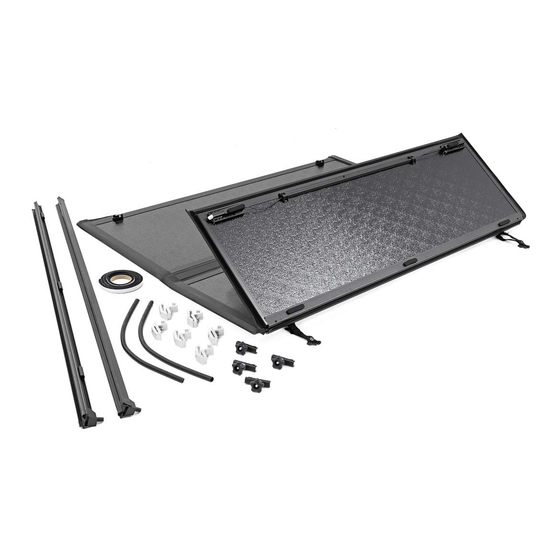

THE ROUGH COUNTRY HARD FOLDING COVER COMES FULLY ASSEMBLED.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
PN
1
Hard Folding Cover (1)
2
Left Mounting Rail (1)
3
Right Mounting Rail (1)
4
Mounting Bolts (10- M6 Flange Head Bolts ) & Nuts (4- 1/4-20 )
5
Bulkhead Seal (1)
6
Cover Retainers (x4)
7
Drain Tubes (2)
Ratchet & 7/16" Socket & 10MM Wrench/ Socket
Page 1 of 7
PARTS LIST OF COMPONENTS
Part Description / Qty
PN
8
9
Components
Tools Required
30-60 min
Cutting Required
www.roughcountry.com
1-800-222-7023
3 YEAR WARRANTY
RC-G5
Part Description / Qty
Front Mounting Brackets (2)
Rear Mounting Brackets (2)
Drilling Not Required
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for rough country RC-G5
Summary of Contents for rough country RC-G5
- Page 1 47620500- 2020-Current Jeep Gladiator JT 30-60 min Cutting Required Drilling Not Required www.roughcountry.com THE ROUGH COUNTRY HARD FOLDING COVER COMES FULLY ASSEMBLED. 1-800-222-7023 REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. 3 YEAR WARRANTY RC-G5 READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
- Page 2 INSTALLATION PROCEDURE 1. Install the bulkhead seal on top of the front bulkhead of Driver Front the bed, centering the bulkhead seal front to back. Make sure to place the bulkhead seal, so that both ends set flush against the inside edge of the plastic bed rail caps, ( driver to passenger side ).
- Page 3 5. Once the mounting rails are in place, apply pressure while tightening the bolts to assure rails are sealed against the bed cap. ( The use of a ratchet, 10MM socket or wrench for the M-6 bolts is recommended ). The assistance of another person may be needed for this step to get the proper seal.
- Page 4 7 & 8. Assemble the four retainer clamps, slide each of them into the track on the underside of the tonneau, slide into position, but do not tighten at this time. 9. Carefully unfold the cover. Position the cover so it is centered side to side and front to back on the truck bed. 10.
- Page 5 11 & 12. Once the cover is located correctly, fold the cover to the open position. Pull the release cables on the rear panel to release it from the side rail. Take care to fold it gently so the position of the cover is not disturbed. 13 &...
- Page 6 OPERATION INSTRUCTIONS 1 & 2. To open the cover: Lower the tailgate and pull the cable. While pulling on the cable lift the panel up and towards the cab. 3, 4 & 5. Release the strap from the stowed position by squeezing the tabs. Attach the buckle at the bulk- head, pull the strap to take up the slack and secure the cover.
-
Page 7: Warranty Coverage
WARRANTY COVERAGE Terms of Warranty The structure of your cover is warranted to be structurally free from defects in material and workmanship for (3) three years from the retail date of purchase. The hinges, seals, and hardware are warranted to be free from defects in material and workmanship for (3) three years from the retail date of purchase.
