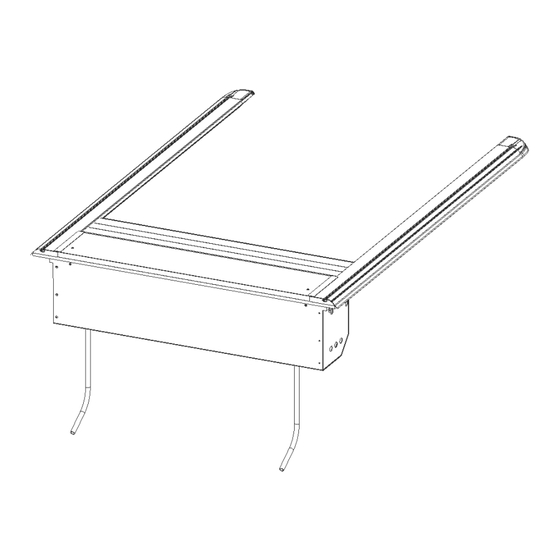

DODGE RAM INSTALLATION INSTRUCTIONS
Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be sure
you have all needed parts and know where they go.
Check all fasteners for proper torque. Check to ensure for adequate clearance between all components.
Periodically check all hardware for tightness.
ROUGH COUNTRY
CALL US: 1-800-222-7023
TEXT US: 731-503-8189
WEBSITE: https://
www.roughcountry.com/
contact
C2D2-2306
Thank you for choosing Rough Country for all your vehicle needs.
TABLE OF CONTENTS
Tools Required for Assembly ..................................... 1
Before You Start .......................................................... 1
Canister Drain Hole Locations ...................................... 1
STEP 1: Remove From Packaging, and
Review Contents ......................................... 1
STEP 2: Install Wiring Harness .................................. 2
STEP 3: Positioning Canister ..................................... 2
STEP 4: Covering Rear Stake Pocket......................3
STEP 5: Installing Rails ............................................... 4
STEP 6: Installing The Top Cover ............................... 5
STEP 7: Installing The Clamp Extensions ................... 6
STEP 8: Installing The Clamps.................................... 7
STEP 9: Installing Kickstands ..................................... 8
STEP 10: Installing Tailgate Draintubes ..................... 9
STEP 11: Lubricating and Placing the Sweap Seals....10
STEP 12: Connecting the Electronics ......................10
STEP 13: Installing Canister Drain Tubes..................10
STEP 14: Release Handle Instructions.....................11
Maintenance ......................................................11
Release Handle Assembly Maintenance...................11
Warranty Statement..............................................12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for rough country 41307550
Summary of Contents for rough country 41307550

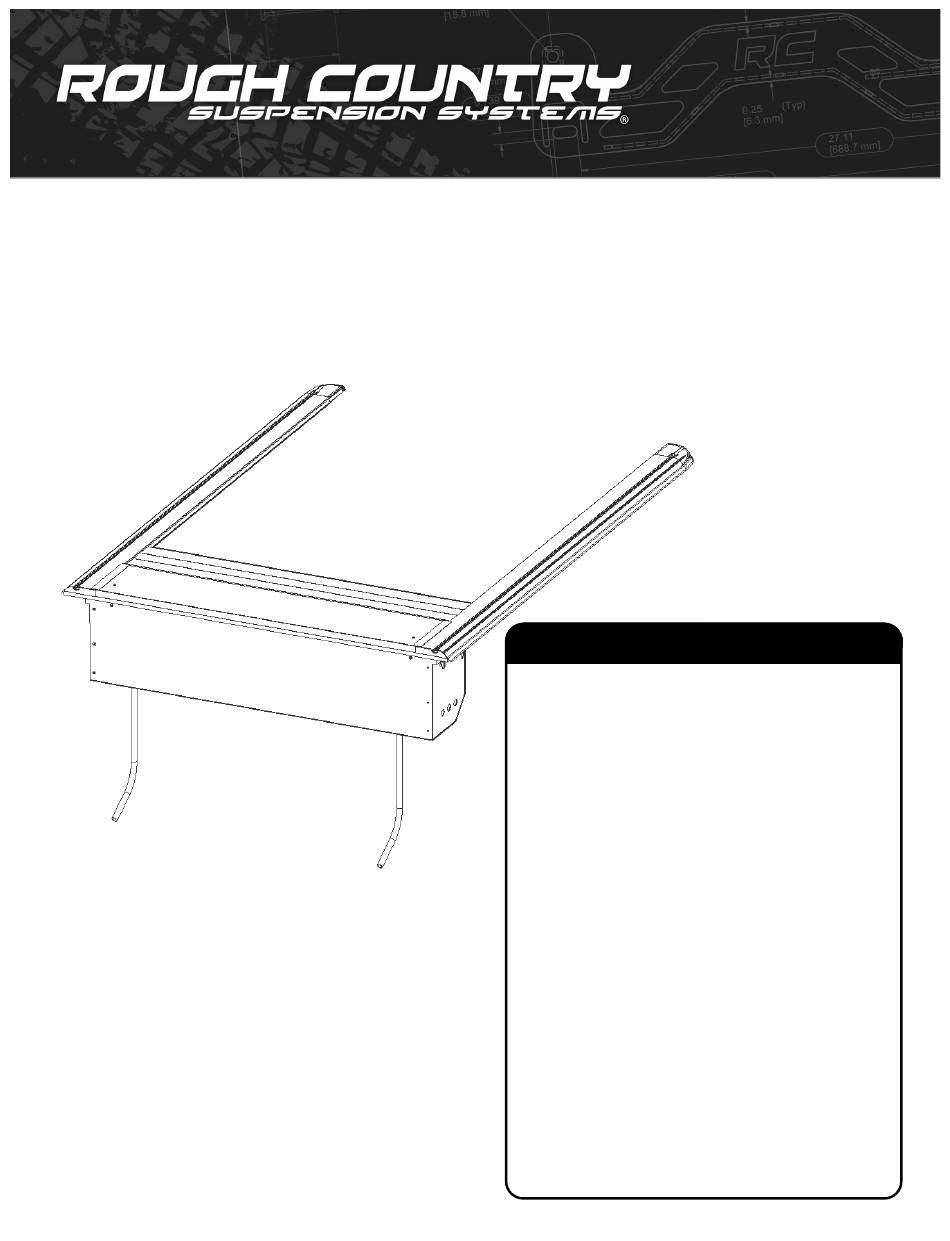

- Page 1 DODGE RAM INSTALLATION INSTRUCTIONS Thank you for choosing Rough Country for all your vehicle needs. Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be sure you have all needed parts and know where they go.
- Page 2 TOOLS REQUIRED FOR ASSEMBLY Tape Measure Side Cut or Needle Nose Pliers Masking tape 3/8” Wrench #2 Phillips Screwdriver Utility Knife 5/32 Allen Wrench Note: There should be no drilling into the truck body needed on most standard or full-size trucks. BEFORE YOU START! Read the instructions carefully before you start.
- Page 3 PACKAGING CONTENTS: Clamp Canister Drain Extensions Top Cover Tubes Foam Complete Tailgate Drain Canister Tubes Assembly Clamp Pack Hardware Top Cover Pack Rails (Left and Right) - In separate box than canister STEP 2: INSTALL WIRING HARNESS (If the optional wire harness is used, you may want to tape it to the main HARDWARE USED: harness to ease having to pull them through the bottom of bed separately).
- Page 4 STEP 4: COVERING REAR STAKE POCKET HARDWARE USED: STAKE POCKET FIG. 4A FIG. 4B FIG. 4C Included with your tonneau cover is a stake pocket cover. This helps to trim the outside seal for your rails (FIG. 4C). First clean the stake pocket hole area. If you have Isopropyl Alcohol this will work well.
- Page 5 STEP 5: INSTALLING RAILS Remove the protective paper from the foam on the underside of the Rail flanges. This is for packaging purposes only. Next identify the left and right side rails (FIG 5A). The rail flange and foam towards the outside of the truck bed.
- Page 6 Rail Rail Guide Lead Rib FIG. 5E threaded into rail FIG. 5F Then you can thread the Lead Rib into the rail an push the rail forward to the end of the can (FIG 5E &5F). If you have difficulty threading the Lead Rib into the rail, you can gently lift up on the lead rib with your left hand while pushing the rail forward with your right.
- Page 7 FIG. 6E Top Cover Rail FIG. 6D Foam FIG. 6F Next mark where the front of the rails sit and mark this position with masking tape, this will be a guide for placing your foam. (FIG 6D). Now pull the cover back until there is room to apply the foam. Lay the foam on the front sill of the truck from rail to rail, trimming the excess with a utility knife (FIG 6E).
- Page 8 TAILGATE END Clamp Relief CAB END Clamp Extension FIG. 7D Rail FIG. 7E Set Screw Shim Hole Bracket Tighten set screw when clamp extension lines up with the end of Set Screw Access the clamp relief. FIG. 7F STEP 8: INSTALLING THE CLAMPS Secure the rails to the truck bed by installing two clamp assemblies per rail.
- Page 9 Part number is on PART BETWEEN the serial number NUMBER RAILS (BR) label in the upper left corner of the C22124 58-3/16 canister (looking C22125 58-3/16 from tailgate). FIG. 8C Rail Metal Handle Stop FIG. 8E FIG. 8D Short Clamp Grip Another way to ensure proper fit is to check the side to side play of the handle assembly at the canister and at the tailgate end of the rails.
- Page 10 STEP 10: INSTALLING TAILGATE DRAINTUBES FIG. 10B To install the tailgate drain tubes you need to find suitable holes in the rear stiffener of you truck bed. Figure 10C shows possible hole locations. Next you will screw the drain tube into the drain fitting and Tailgate Cap slide it on the tailgate cap as shown in Figure 10B.
- Page 11 STEP 11: LUBRICATING AND PLACING THE SWEEP SEALS Locate the sweep seals (rubber weather strips) on the rails. Use the provided UV protectant to wipe the underside of the sweep seal and the top of the wear strip on each rail. The UV protectant can be found adhered to the underside of the top SWEAP SEAL RAIL...
- Page 12 STEP 14: RELEASE HANDLE INSTRUCTIONS If power is lost to the unit or the electric drive system fails to operate and you have to use the cover right away you can do the following to open or close the cover: 1.
- Page 13 By purchasing any item sold by Rough Country, LLC, the buyer expressly warrants that he/she is in compliance with all applica- ble, State, and Local laws and regulations regarding the purchase, ownership, and use of the item. It shall be the buyers re- sponsibility to comply with all Federal, State and Local laws governing the sales of any items listed, illustrated or sold.
