Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be
sure you have all needed parts and know where they go.
If question exist, please call us @1-800-222-7023. We will be happy to answer any questions concerning this product.
Check all fasteners for proper torque. Check to ensure for adequate clearance between all components.
Periodically check all hardware for tightness.

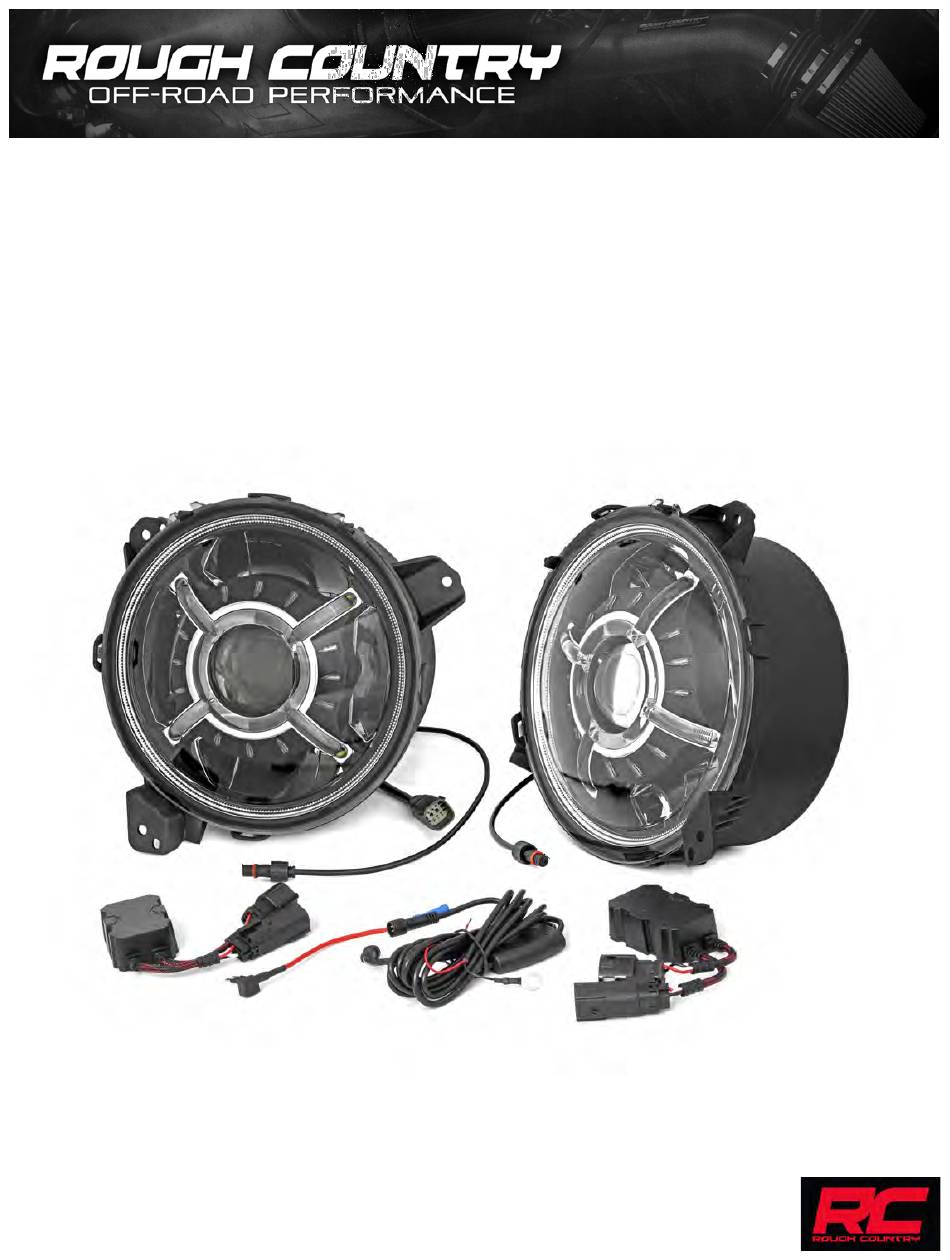

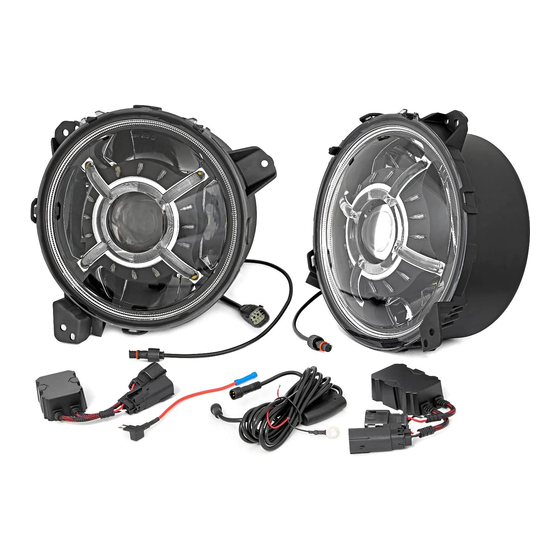

KIT CONTENTS:
Driver LED Headlight x1
Pass LED Headlight x1
In-Line Headlight Adapters x2
DRL Wiring harness x1
Fuse-able Link x1
Torque Specs:
Size
Grade 5
5/16"
15 ft/lbs
3/8"
30 ft/lbs
7/16"
45 ft/lbs
1/2"
65 ft/lbs
9/16"
95 ft/lbs
5/8"
135ft/lbs
3/4"
185ft/lbs
JEEP 2018-UP JL / 2020-UP JT 9" LED Headlight Kit
Thank you for choosing Rough Country for all your vehicle needs.
Grade 8
Size
20ft/lbs
6MM
35ft/lbs
8MM
60ft/lbs
10MM
90ft/lbs
12MM
130ft/lbs
14MM
175ft/lbs
16MM
280ft/lbs
18MM
Auto Trim Puller / Flat Head Screwdriver
Class 8.8
Class 10.9
5ft/lbs
9ft/lbs
18ft/lbs
23ft/lbs
32ft/lbs
45ft/lbs
55ft/lbs
75ft/lbs
85ft/lbs
120ft/lbs
130ft/lbs
165ft/lbs
170ft/lbs
240ft/lbs
RCH5100
TOOLS NEEDED:
10mm Socket
Wire Crimpers
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for rough country RCH5100
Summary of Contents for rough country RCH5100
- Page 1 RCH5100 JEEP 2018-UP JL / 2020-UP JT 9” LED Headlight Kit Thank you for choosing Rough Country for all your vehicle needs. Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be sure you have all needed parts and know where they go.
- Page 2 INSTALLATION INSTRUCTONS 1. Remove the (6) push pins securing the top of the grille using an auto trim puller or flat head screwdriver. See Photo 1. Retain the push pins. 2. Lean the top of the grill out and release the clips at the bottom of the grille with a flat head screwdriver. See Photo 2. Photo 1 Photo 2 Remove the 6 push pins in the grille.
- Page 3 9. Identify the new passenger side head light. Align the tab and connect the plug to the DRL wiring harness. See Photo 10. Locate the headlight in-line adaptor and connect the head light plug to the adaptor and then the OE harness to the adaptor.
- Page 4 Adjust the headlight. By purchasing any item sold by Rough Country, LLC, the buyer expressly warrants that he/she is in compliance with all applicable, State, and Local laws and regulations regarding the purchase, ownership, and use of the item. It shall be the buyers responsibility to comply with all Federal, State and Local laws governing the sales of any items listed, illustrated or sold.
