Note: Please refer to the User Manual for complete instructions:

https://support.flir.com.

SAFETY

• This device has been designed and tested according to CE

Safety Requirements for Electronic Measuring Apparatus, EN

61010-1 EN 61326-1 and other safety standards.

• Safety Rating: Category III 450 V.

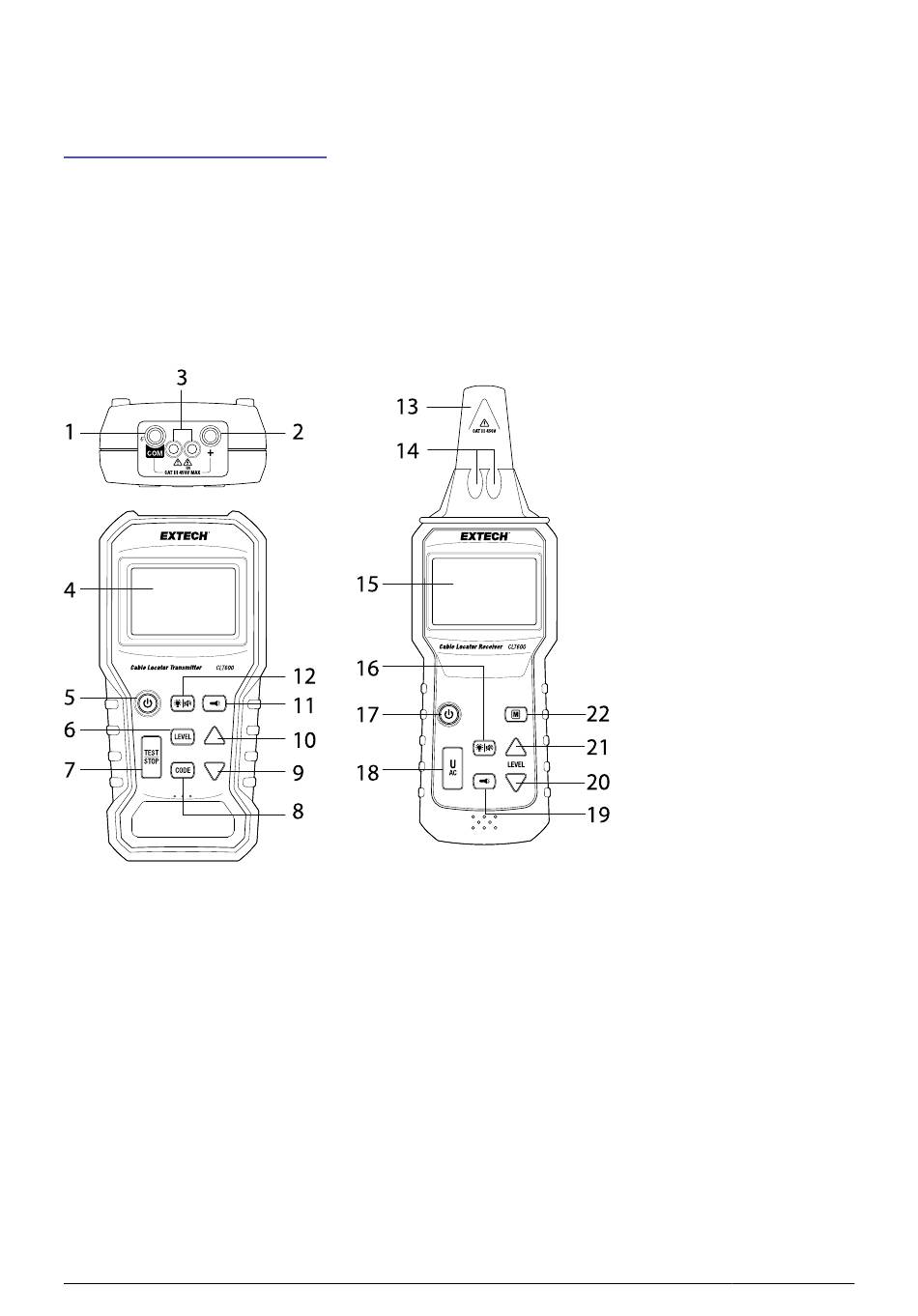

TRANSMITTER AND RECEIVER DESCRIPTIONS

Transmitter Description (shown on left, above)

1. Negative (COM) ground, or common terminal. Connect the

black test lead here.

2. Positive '+' terminal. Connect the red test lead here.

3. Worklights

4. LCD Screen

5. Power button (short press ON/OFF).

6. LEVEL button. Press and 'LEVEL' will flash on the display. Se-

lect one of three signal levels using the arrow buttons.

7. TEST/STOP button. Press to send/stop the transmission signal.

8. CODE button. Long press and 'CODE' will flash on the display.

Select a code (F, E, H, d, L, C, O, A) using the arrow buttons.

#NAS100049; r. AA/70188/70188; en-US
