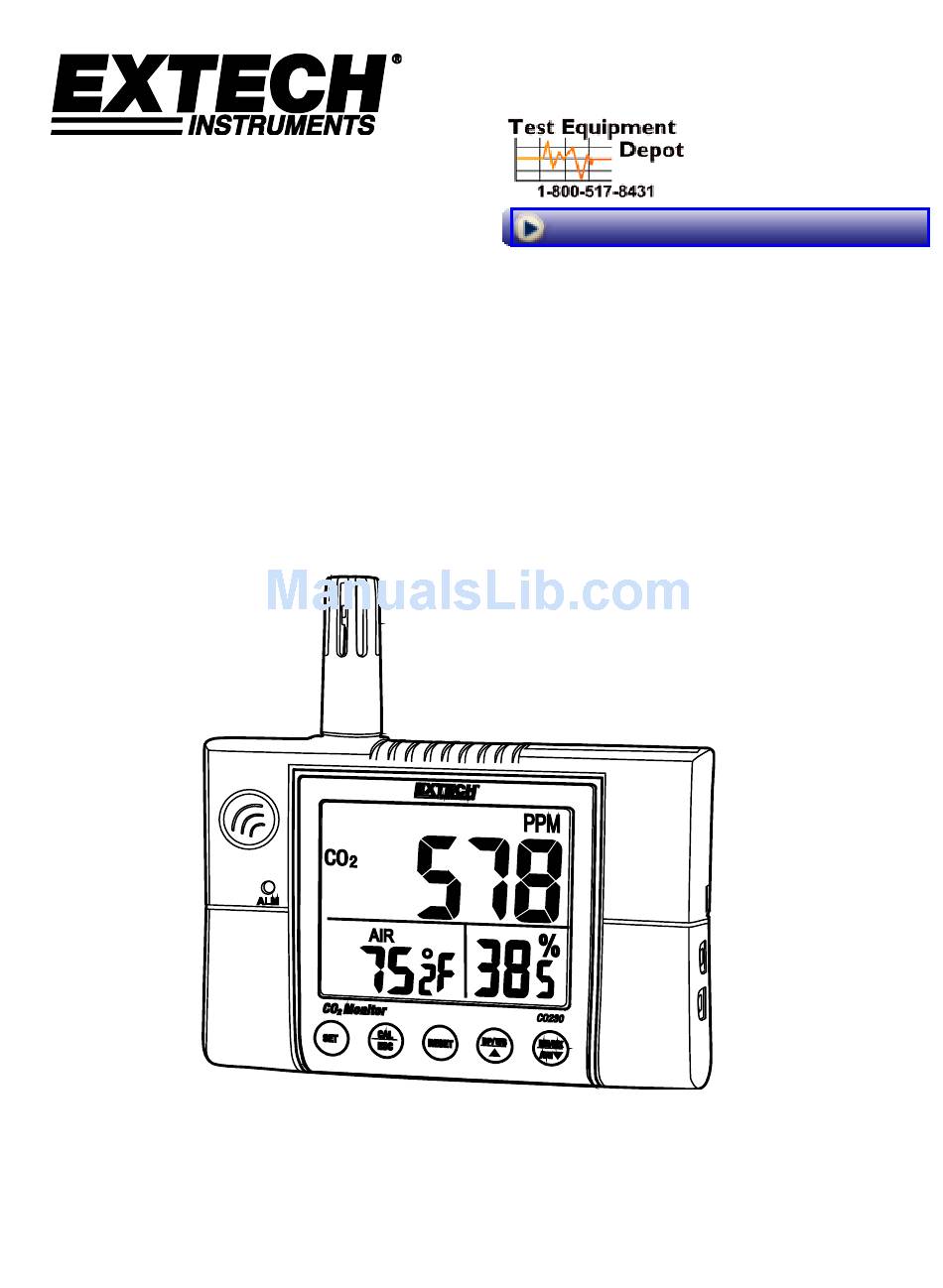

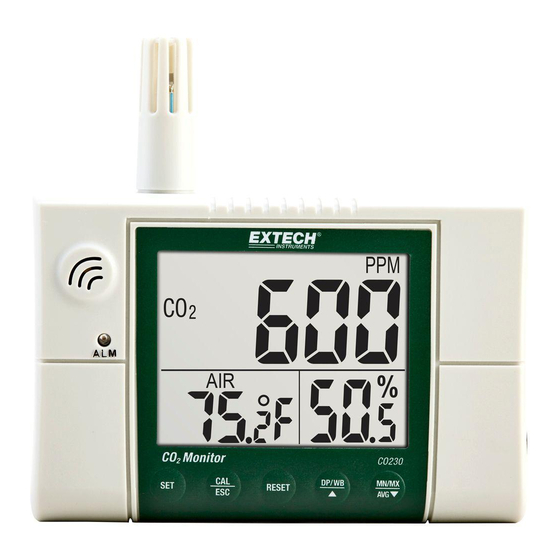

- Page 1 User Guide 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Wall-Mount CO Monitor Model CO230...
- Page 2 Introduction Thank you for selecting the Model CO230 Carbon Dioxide Monitor. This meter measures CO concentration, air temperature, dew point, wet bulb temperature and relative humidity. The audio-visual alarm and alarm relay output make this is an ideal instrument for indoor air quality (IAQ) diagnostics. Carbon dioxide (CO is a gaseous component of the earth’s atmosphere.
- Page 3 Display Icons Time weighted average (8 hours) STEL Short-term exposure limit (15-min. weighted average) HOLD Holds reading on display MIN/MAX Minimum/Maximum readings Dew point temperature Air temperature Wet bulb temperature Relative Humidity measurement unit °E (C/F) Temperature units (Celsius/Fahrenheit) CO230-en-GB_v1.0 1/16...
-
Page 4: Operation
Power the unit by plugging the AC adaptor into the meter and into an AC source. The meter will switch ON with a short beep. The LCD will perform a 30 second countdown and then displays the current CO concentration, air temperature, and relative humidity. CO230-en-GB_v1.0 1/16... -
Page 5: Taking Measurements
(lower left display) and Humidity (lower right display). In STEL and TWA modes, the main display shows the weighted average of CO readings for the prior 15 minutes (STEL) or 8 hours (TWA). The lower display shows the current AIR, DP/WB temperature and humidity. CO230-en-GB_v1.0 1/16... -
Page 6: Alarm Overview
The TWA mode will display a weighted average of the readings taken during the prior 8 hours of operation. 2. The CO230 requires at least 5 minutes to calculate STEL and TWA values. The display shows “----” during this time. - Page 7 Press SET to enter P3.1 for setting the temperature units. The currently selected unit (°C / °F) will be blinking in the lower display. To switch units press▲/DP WB or MXN/AVG/▼. Press SET to save the setting or press CAL/ESC to exit without saving and return to P3.0. CO230-en-GB_v1.0 1/16...
- Page 8 7 days of continuous monitoring. The ABC default is ON. To disable the ABC function, please refer to the P4.0 Setup mode section above. Perform the calibration in a well ventilated area with a CO level near 400ppm. CO230-en-GB_v1.0 1/16...
- Page 9 (32.7%, if at 25°C) will blink on the LCD with the current temperature shown on the left. 3. The meter is now calibrating and will finish in approximately 60 minutes (when “CAL” and the humidity reading are no longer blinking). CO230-en-GB_v1.0 1/16...
- Page 10 NOTE: Single point calibrations can also be performed. To calibrate 33% only, press CAL/ESC and stop after the 33% calibration is completed. To calibrate 75% only, press ▲/DP WB or MXN/AVG/▼ within 5 minutes of initializing the 33% calibration. CO230-en-GB_v1.0 1/16...
-
Page 11: Specifications
30 seconds Operating Conditions 0 to 50 C (32 to 122 F); < 95% RH non- condensing Storage Conditions -20 to 60 C (-4 to 140 F); <99% RH non- condensing Power Supply 12VDC, 1.0A adaptor (100-240VAC 50/60Hz) CO230-en-GB_v1.0 1/16... -
Page 12: Maintenance
E04: Humidity, Dew Point, or Wet Bulb error E07: Low voltage; check that the AC adaptor output is 12V. E11: Calibration error; retry the humidity calibration E17: Calibration error; retry the CO calibration E31: Temperature sensor damage E34: Humidity sensor damage CO230-en-GB_v1.0 1/16... -
Page 13: Co 2 Levels And Guidelines
It is the responsibility of the end user to obtain current information for the specific location where this device is to be used and to interpret the meter readings accordingly. Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com CO230-en-GB_v1.0 1/16...
