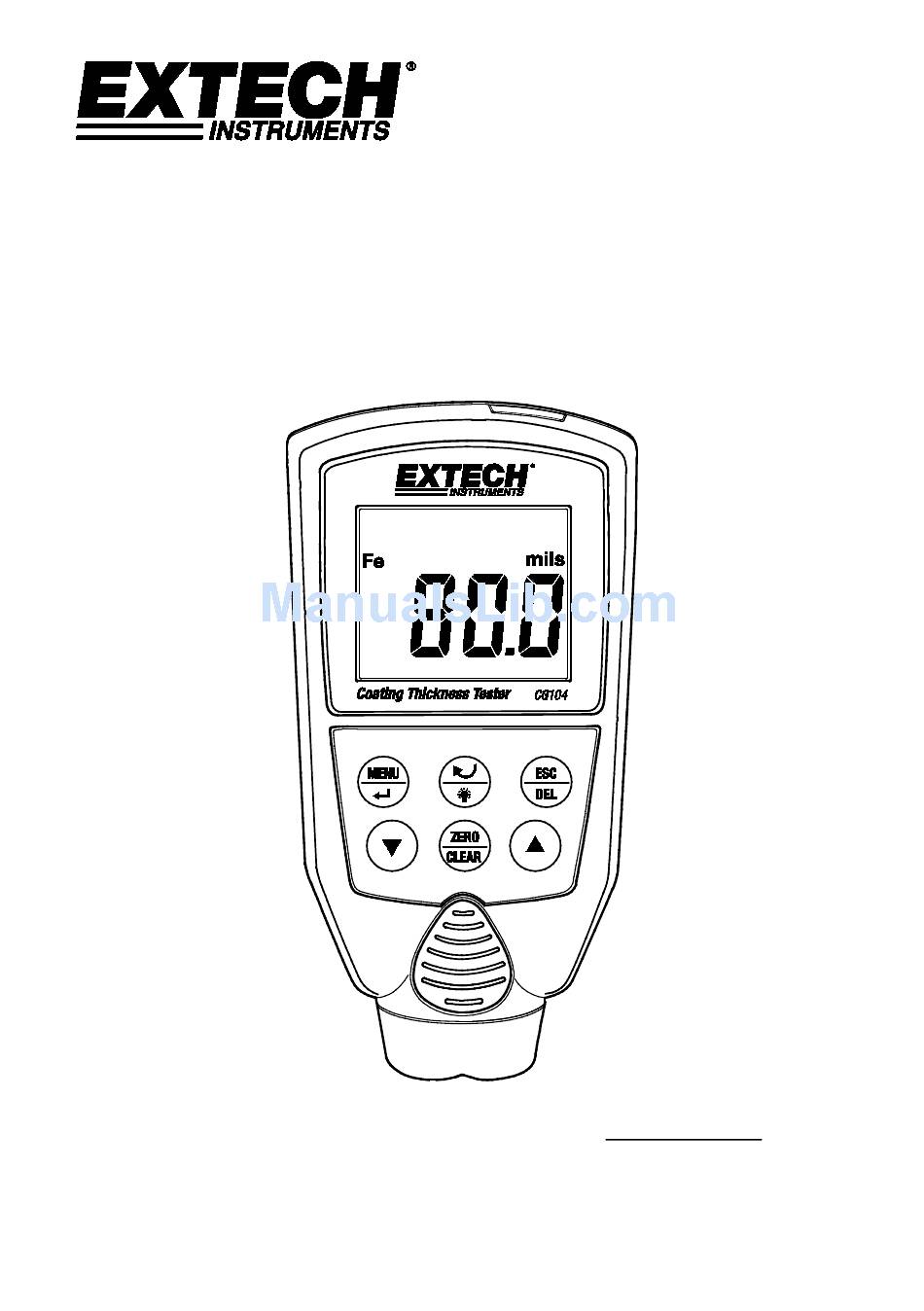

- Page 1 User Manual Coating Thickness Tester Model CG104 Additional User Manual Translations available at www.extech.com GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c...
-
Page 2: Meter Description
Introduction Thank you for selecting the Extech Instruments CG104 Coating Thickness Tester. The CG104 is a portable meter designed for non-invasive coating thickness measurements with automatic recognition of the material under test. The meter uses two measurement methods: magnetic induction (for ferrous metal substrates) and eddy current (for non-ferrous metal substrates). -
Page 3: Function Keys
(unit of measure) = millimeters * 2.54/100 MAX-MIN Maximum minus Minimum reading MIN, MAX, AVG Minimum, Maximum, or Average reading Recalled data point storage serial number Low battery CG104-en-GB_V1.8 1/17 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c... -
Page 4: Safety Information
10~ 100 < 1 Fan: 100~ 1000 < 5 Reading Lamp: 400~ 4000 < 10 Note: Any device with an internal coil should be considered as a possible interference source. CG104-en-GB_V1.8 1/17 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c... -
Page 5: Operation
Program the High/Low Alarms in the ‘Options’ menu. CAUTION Keep the meter clear of Electromagnetic radiation sources as explained in the Safety section of this User Guide. CG104-en-GB_V1.8 1/17 GlobalTestSupply www. .com d Quality Products Online at:... -
Page 6: Options Menu
The high value calibration point is now set. The meter is now ready to make measurements. 10. To abort at any time without saving the Two-point Calibration, Press ESC/DEL. CG104-en-GB_V1.8 1/17 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c... -
Page 7: Rec - Record Setting/Recall (Avg-Min-Max-N)
7. Use the ▲ or ▼ button to select Low Alarm ON or OFF. 8. Press MENU/ENTER to confirm the selection. 9. Use the ▲ ▼ buttons to adjust the low alarm threshold. 10. Press MENU/ENTER to confirm the selection and exit to measure mode. CG104-en-GB_V1.8 1/17 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c... -
Page 8: Maintenance
Please dispose of batteries responsibly; observe local, state, and national regulations. o Never dispose of batteries in a fire; batteries may explode or leak. o Never mix battery types; install new batteries of the same type. CG104-en-GB_V1.8 1/17 GlobalTestSupply www. -
Page 9: Electrical Specifications
18 to 28°C (64 to 82°F). The accuracy of the reference films or any reference standards should be added to measurement results. CG104-en-GB_V1.8 1/17 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c... -
Page 10: General Specifications
Approx. 80g (2.82 oz.) including battery Copyright © 2015-2017 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO-9001 Certified www.extech.com CG104-en-GB_V1.8 1/17 GlobalTestSupply www. .com d Quality Products Online at:...
