Application Illustrations

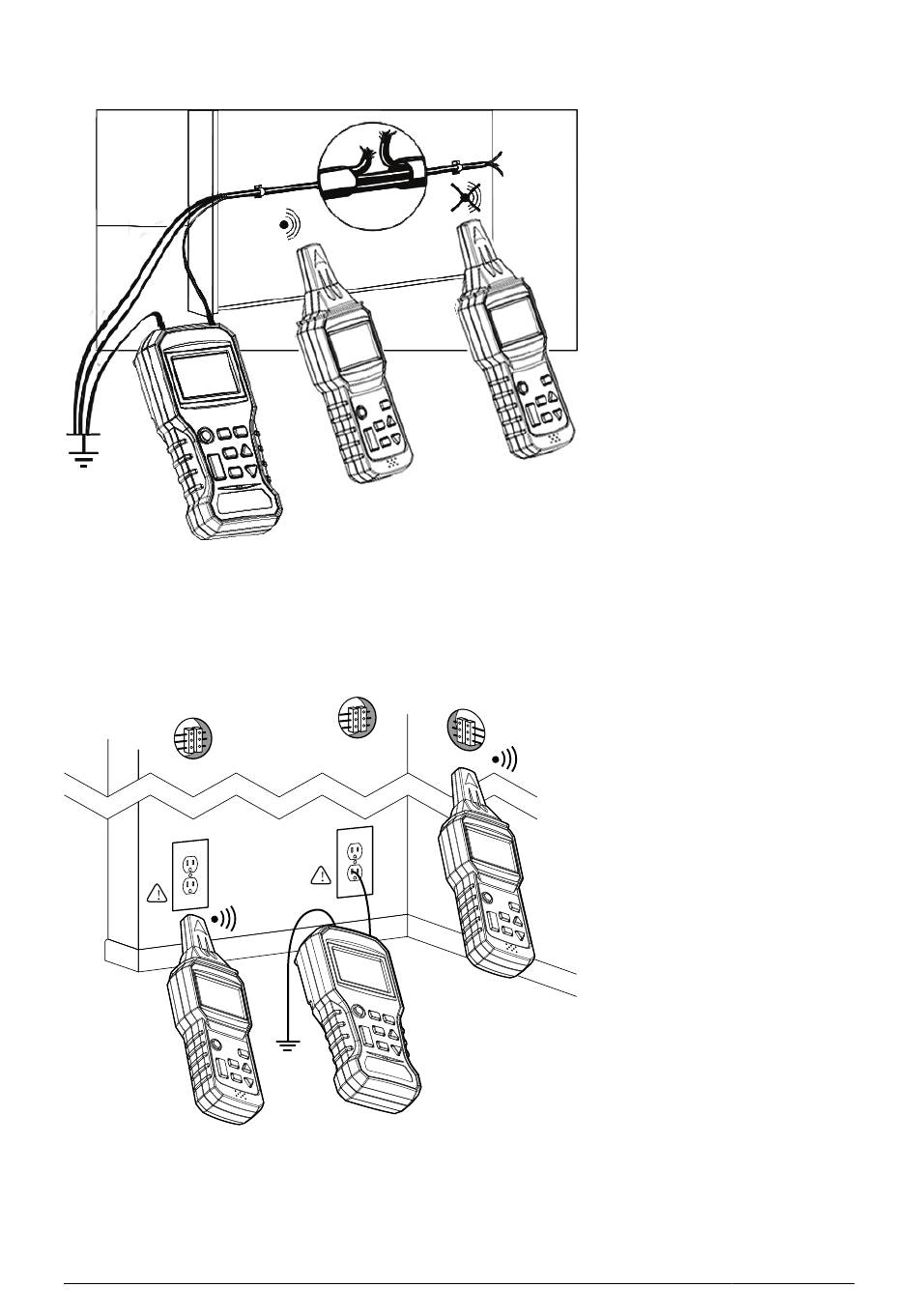

Figure 1 Locating wire breaks. Diagram shows one Transmitter in a fixed loca-
tion and one Receiver being used in two locations. The Receiver position on the
left is detecting a signal, while the Receiver position on the right is not detecting
a signal.
Figure 2 Locating and tracing lines and receptacles
1
