2020-11-10 03:20

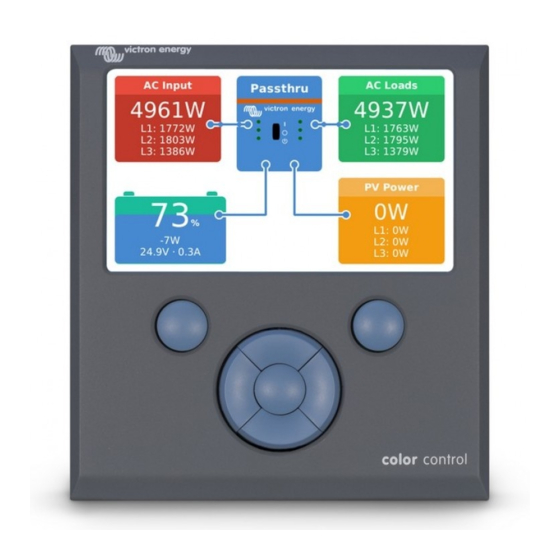

CCGX & Fischer Panda generators
Beginning with
CCGX v2.07
generator needs to be connected to the VE.Can port of the CCGX, which requires a Fischer Panda SAE
J1939 module.

Requirements

CCGX or Venus GX
Fischer Panda generator, xControl or iGenerator
Fischer Panda SAE J1939 CAN module (part number 0006107)
Fischer Panda FP-Bus to VE.Can adapter (part number 0023441)
Fischer Panda Firmware requirements:
iControl (for the iGenerator): v2.17 minimum
iControl panel: no minimum requirement
xControl (for the constant speed generators): 4V38 minimum
xContr panel: 4V29
Fischer Panda SAE J1939 CAN module: 2V05
Fischer Panda three phase module: 4V0b

Connecting

xControl
The schematic below shows how to connect a Fischer Panda xControl generator.
Victron Energy - https://www.victronenergy.com/live/
1/6
it became possible to read data from your Fischer Panda generator. The
GX - Fischer Panda generators

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCGX and is the answer not in the manual?

Questions and answers

Related Manuals for Victron energy CCGX

Summary of Contents for Victron energy CCGX

  • Page 1 Beginning with CCGX v2.07 it became possible to read data from your Fischer Panda generator. The generator needs to be connected to the VE.Can port of the CCGX, which requires a Fischer Panda SAE J1939 module. Requirements CCGX or Venus GX...
  • Page 2 Last update: 2018-03-20 13:28 ccgx:fischer_panda https://www.victronenergy.com/live/ccgx:fischer_panda?rev=1521548908 iControl The schematic below shows how to connect a Fischer Panda iControl generator. https://www.victronenergy.com/live/ Printed on 2020-11-10 03:20...
  • Page 3 Menu When all wiring is complete and the setup has been correctly carried-out, the Fischer Panda will show up in the device list: Entering the Fischer Panda device on the menu reveals a page like this: Victron Energy - https://www.victronenergy.com/live/...
  • Page 4 In addition to the manual start/stop and monitoring, there is also an automatic start/stop feature. This has the same comprehensive range of options as the Generator start/stop feature associated with the CCGX relay. See GX - Generator auto start/stop for the manual.
  • Page 5 I've set the mode of the genset to 'On' or 'Auto start/stop' but the generator is not starting/running. Make sure the Fischer Panda autostart feature is on, this allows the CCGX control the remote on/off of the genset. You can find this option on the control panel in the menu generator → autostart →...
  • Page 6 Last update: 2018-03-20 13:28 ccgx:fischer_panda https://www.victronenergy.com/live/ccgx:fischer_panda?rev=1521548908 disabled on the Auto start/stop page. Disqus View the discussion thread. From: https://www.victronenergy.com/live/ - Victron Energy Permanent link: https://www.victronenergy.com/live/ccgx:fischer_panda?rev=1521548908 Last update: 2018-03-20 13:28 https://www.victronenergy.com/live/ Printed on 2020-11-10 03:20...
