Instructions

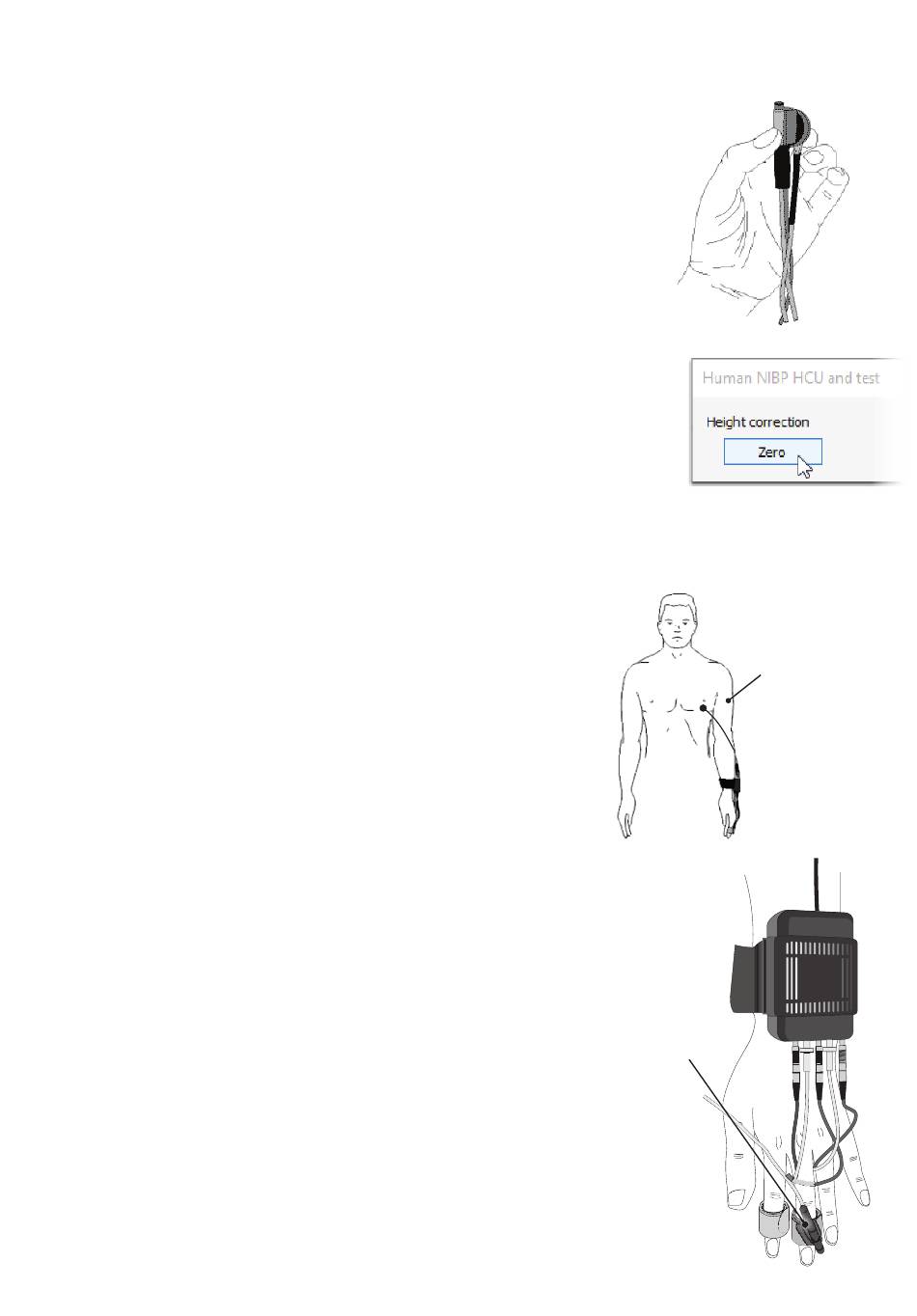

Zero the HCU
Perform the height correction procedure before attaching
the HCU Unit to the volunteer.
1. Hold the HCU transducer and the reference point at
the same level.
2. In LabChart, click Setup > NIBP HCU and test...
3. In the Human NIBP Settings dialog, click Zero.
Once the HCU has successfully been zeroed a confirmation
message is displayed.
Apply the Wrist Unit and HCU
The Wrist Unit is connected to the Human NIBP Controller
by a cable assembly.
1. Apply the Wrist Unit to the volunteer's wrist and
fasten the strap firmly so that it cannot twist.
2. Guide the cable assembly along the arm and
fasten the arm straps.
3. Insert the cuff cable and air hose connectors for
each finger cuff into the Wrist Unit.
4. Ensure the HCU is connected to the Wrist Unit.
5. The HCU transducer should be attached to the
finger cuff and the reference end should be
attached at heart level.
Reference end
HCU transducer duc duc u er
C2
HCU
C1
