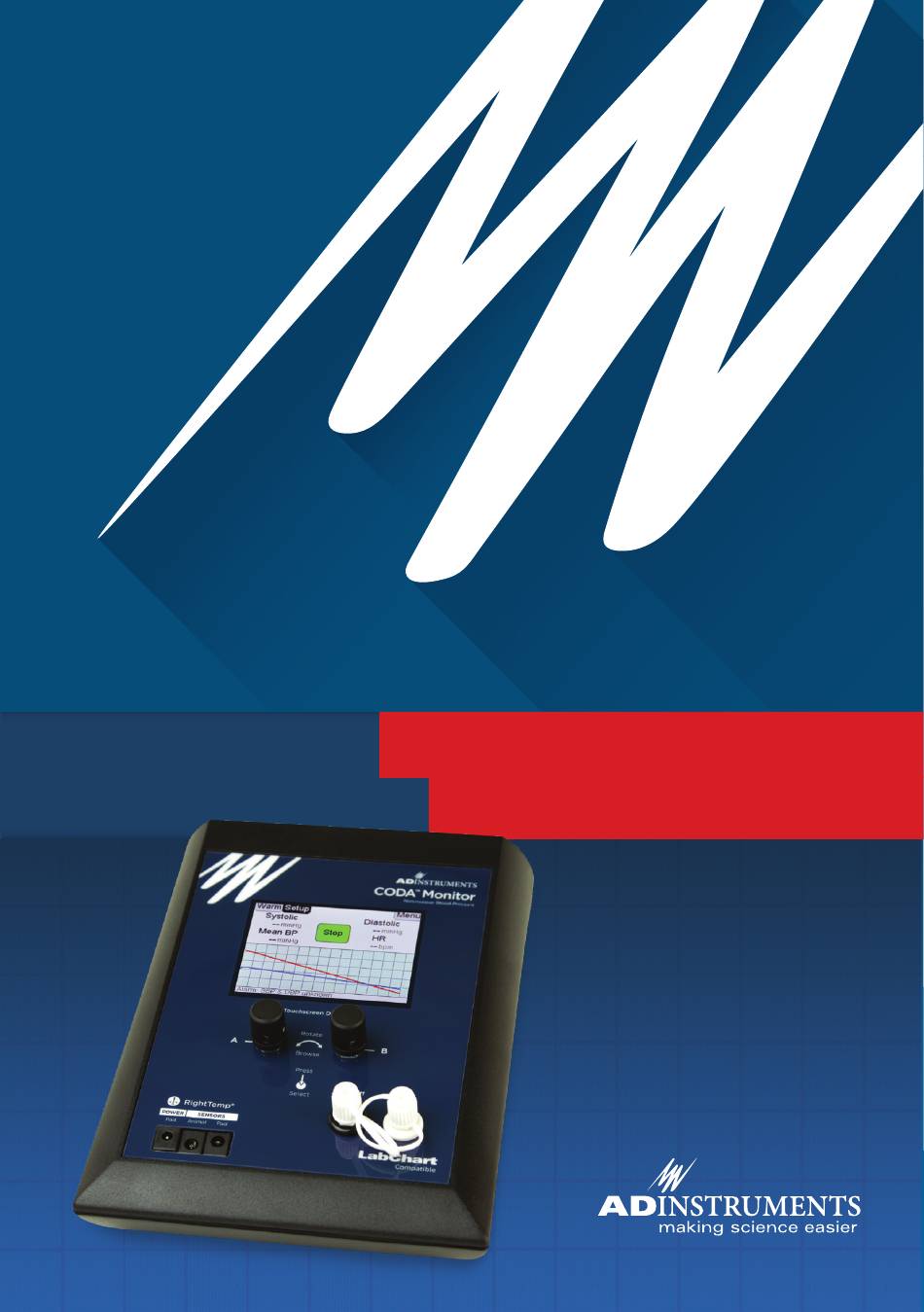

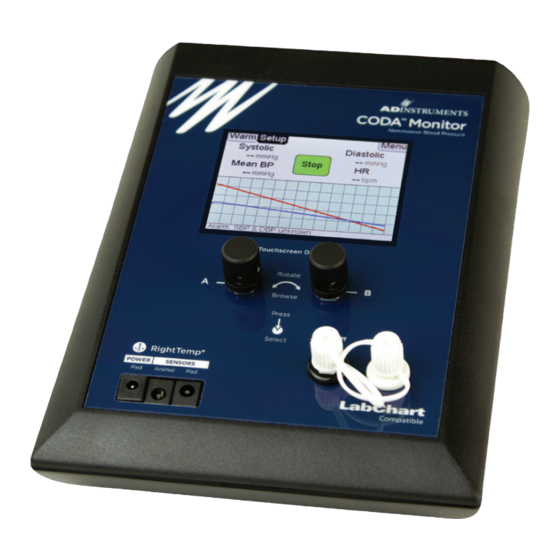

- Page 1 ADINSTRUMENTS CODA MONITOR ® Quick Start Get set up and start recording...
- Page 2 Late-breaking information may be supplied separately. Copyright © ADInstruments Pty Ltd, 2000 - 2022. All rights reserved. LabChart is a registered trademark of ADInstruments Pty Ltd. CODA is a registered trademark of Kent Scientific. All other trademarks are the property of their respective owners.
- Page 3 2 Install the ADInstruments CODA Monitor Device Enabler via ® • USB pen drive (supplied with any Rodent NIBP CODA Monitor Set) connected to your computer’s USB drive. • Using the Feature Manager in LabChart software and ensuring that it is enabled.
- Page 4 Usage Conscious Animal Preparation 1 Place the corresponding CODA NIBP Rodent Holder on the infrared warming pad. You can use the disposable warming pad covers to prevent soiling the warming pad. 2 Place both RightTemp sensors (pad and body temperature probes) beneath the rodent holder.
- Page 5 Hardware Setup Power Supply ADInstruments CODA Monitor ® from VPR Cuff Sensor from Occlusion Cuff from Animal Rodent NIBP CODA RightTemp Sensor from Pad Rodent NIBP CODA RightTemp Sensor Far Infrared Warming Pad (203 x 254 mm)
- Page 6 Monitor to the computer via ® supplied USB cable. 2 Connect the leads of the Occlusion Cuff, VPR Cuff Sensor, RightTemp sensors and warming pad to the ADInstruments CODA Monitor. ® 3 Connect the ADInstruments CODA Monitor to mains power via ®...
- Page 7 11 Return back to the default recording display once all the desired changes are confirmed. 12 You can start recording by first clicking the Chart View Start button in LabChart software and then pressing Start on the ADInstruments CODA Monitor touch screen.
- Page 8 6781...
