7. Stop a measurement

To stop a measurement, simply click Stop in LabChart. Once you have stopped a
measurement, it is recommended to:
1. Disconnect the finger cuff air hoses from the Wrist Unit
air pressure from the finger cuff s and protects them from accidental inflation and
damage.
2. Unwrap and remove the finger cuff s
3. Inspect the finger aft er removing a finger cuff
where the LED and photodiode have pressed on the finger skin (see Figure below).
• Verify that the pressure points are correctly centered between the knuckles and
symmetrically placed on opposite sides of the finger.
• The most common reason for inaccurate finger blood pressure readings is
incorrect cuff application.
• If a cuff is applied too tightly, an unrealistically low reading may result.
• Conversely, if the cuff is applied too loosely, unrealistically high blood pressure
readings may occur.
Cuff s are used to measure blood pressure at the finger. Correct sizing and
positioning are important to obtain reliable measurement results.

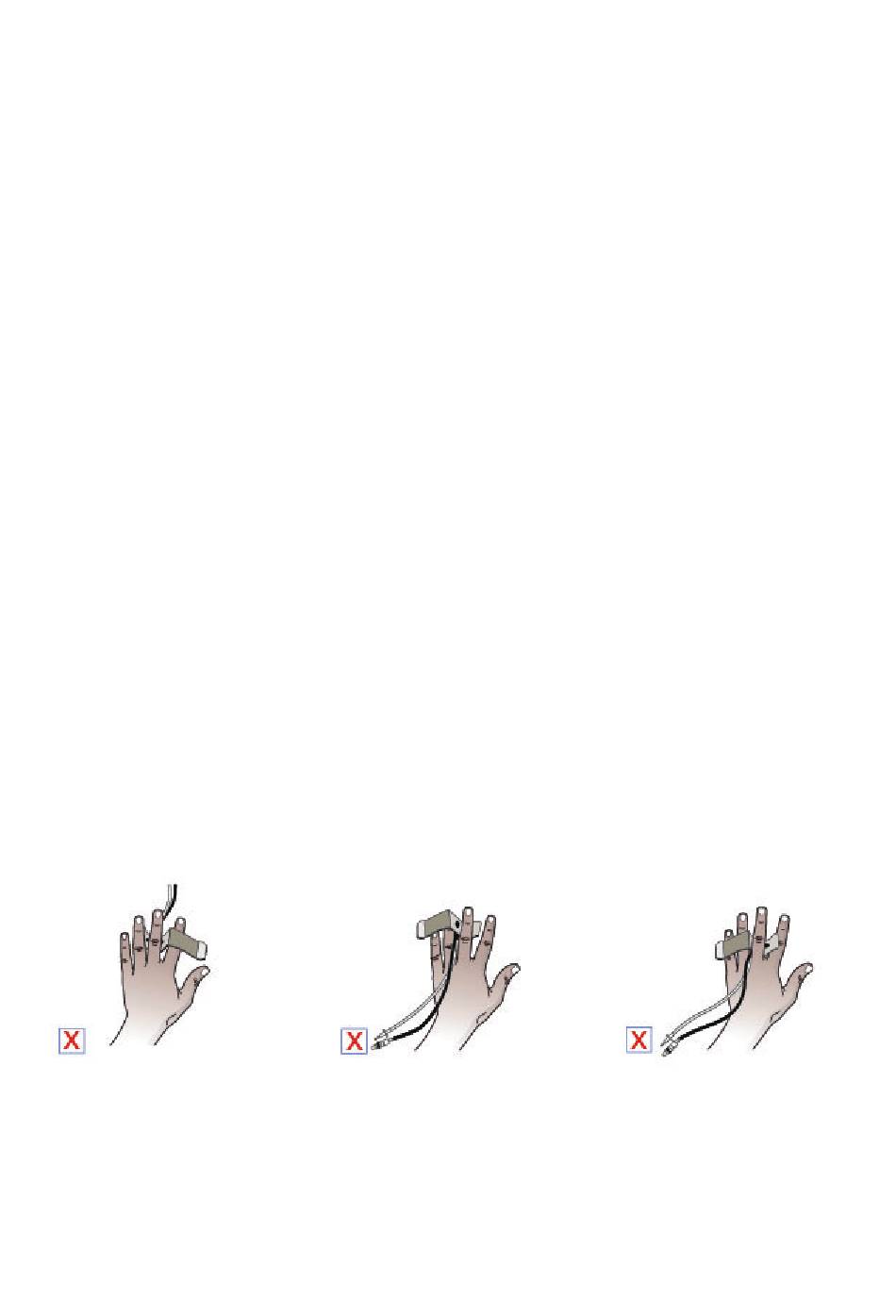

Incorrect
Cable and tube
point in the wrong
direction
(if you have completed your measurement).
Incorrect
Cuff is rotated
– this removes residual
– see if you can find the places
Incorrect
Cuff is too close to
the hand
