Zacuto Sony F5/F55 Top Plate Manual

Z
Canon Lens
Sony F5/F55
Top Plate Support

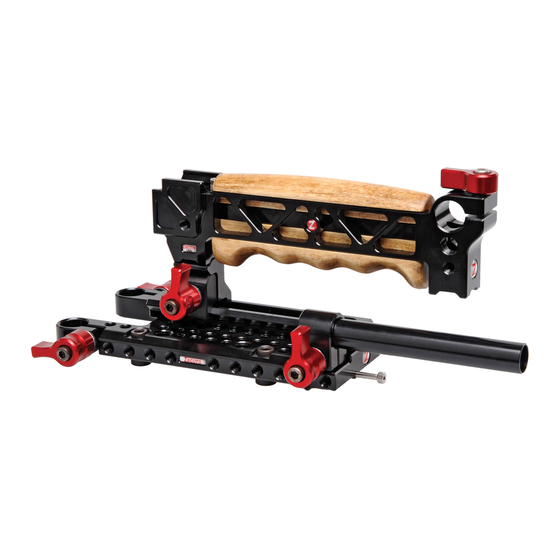

This Sony Top Plate is a
top cheeseplate designed
specifically for the Sony
F55 and F5 camera bodies,
allowing the camera's vent
area to remain open. The
plate offers rows of 1/4-20"
and 3/8-16" as well as
three rod ports. Paired with
the Top Plate is our Recoil
Handle, making the Sony
F55 or F5 more mobile
and easily handheld.
The Recoil Handle is a
quick release handle that
will work with any Z-Rail to
give you a top handle and
a unique dual cold shoe
accessory mount.
Opposite the cold shoe
mount is a 15mm rod
clamp for mounting a
Zacuto arm or other rods.
3/8"-16 and 1/4"-20
mounting holes are also
available. With the
connections on both the
Top Plate and Recoil
handle your accessory
options are seemingly
endles.
?
Check out our
tutorial videos
at zacuto.com

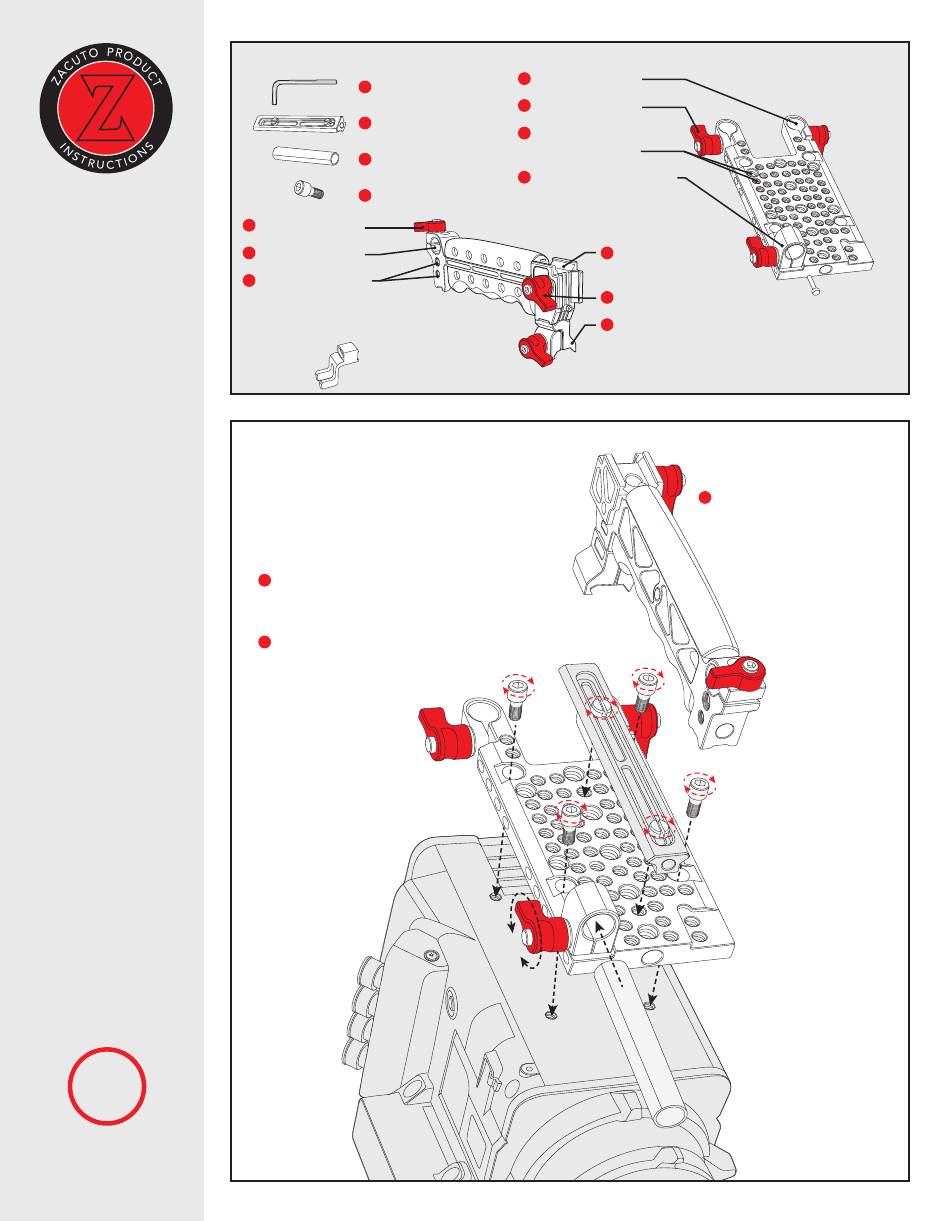

Parts & Features
3/16 Allen Wrench
1
5" Z-Rail
1
4.5" 15mm Rod
1
Top Plate Screws
4
Tightening Lever
1
Rod Port 15mm
1
1 1/4"-20 & 3/8"-16
Mounting Holes.
Cord Lock (Sold Separately)
Assembling Top Plate & Handle
The top plate & handle will come assembled,
below is how its assembled with camera.
1
Tighten the four top plate screws
into the aligning holes mounting
holes on the top of the camera.
2
Attach the 5" Z-Rail's two
1/4" 20 screws into any of
the top plates 1/4"-20 holes.
15mm Rod Ports
1
2 Racheting Lever
1/4"-20 & 3/8"-16
1
Mounting Holes
Removable Rod Port
1
with Racheting Lever
Cold Shoe
1
Accessory Jaws
Racheting Lever
2
Z-Rail Jaws
1
I
The Recoil handle is attached
3
after the top plate and z-rail.
See back for further Recoil
handle instruction.
