Zacuto Z-Finder Instructions

Z
Canon Lens
Z-Finder for
Support
C300-C500

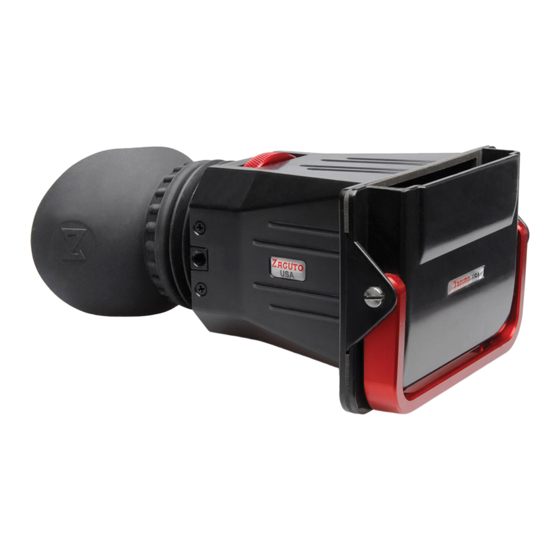

The C300/500 Z-Finder is
an optical viewfinder,
specifically designed to
attach to the Canon C300
and C500 cinema
camera's LCD screen. This
Z-Finder will magnify the
LCD screen by 2x and has
a diopter wheel for
specific focus tuning. It
cuts out any extraneous
light and offers an initial
point of stability by
pressing your eye against
the large eyecup.
The Z-Finder includes 4
interchangeable anti-fog
glass diopters, 0, +1, +2,
and +3 so you can
correct it to your vision
right out of the box and
then fine tune it with our
red adjust wheel for
perfect clarity. -1 and +4
diopters are available for
purchase separately. An
aluminum sun mask is
built in to the Z-Finder to
protect your LCD screen
from sunlight.
?
Check out our
tutorial videos
at zacuto.com

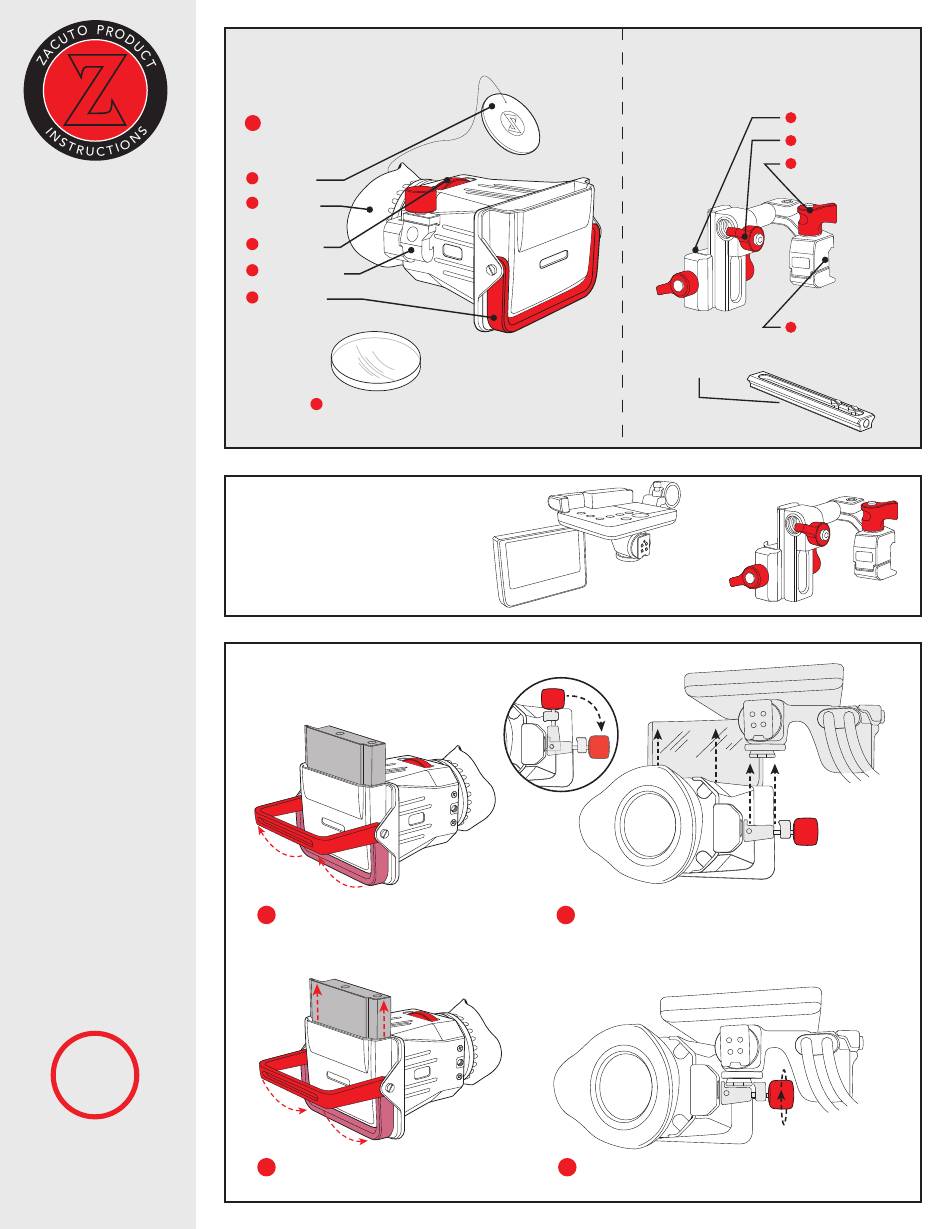

Parts and Features
1
C300/500 Z-Finder 2x
Lens Cap
1
1
Orientable
Eyecup
1
Focus Ring
1 Coldshoe Lock
Locking Bar
1
4
Anti-Fog Coated Optical
Diopters (0,+1,+2,+3)
Before assembling Z-Finder,
orient your Canon Monitor
and mounting kit as shown
to the right .
Attaching Z-Finder to Canon Monitor
1
Unlock red locking bar.
3
Relock red locking bar.
Optional Accessories
Mounting
Kit
5" Z-Rail
2
Loosen red knob to open Z-Finder coldshoe lock.
Slide Z-Finder onto Canon screen, until top of
screen and top of Z-Finder are flush.
4
Tighten Z-Finder coldshoe lock around
the Canon Monitor Coldshoe.
Coldshoe Jaws
1
3 Locking Lever
1
Ratcheting
Locking Lever
Z Rail Jaws
1
