Zacuto FS5 Z-Finder Instructions

Zacuto FS5 Z-Finder Instructions

For sony fs5

Advertisement

Quick Links

Z
Sony FS5
Z-Finder

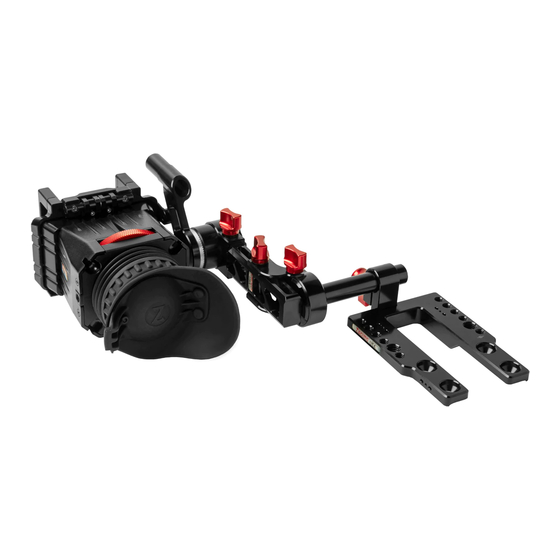

The FS5 Z-Finder is
specifically designed to
convert the monitor
included with the Sony
FS5 to an optical
viewfinder. The Z-Finder
comes with a flip up
frame designed to slide
onto the FS5 LCD and
lock securely in place. The
Z-Finder can pop on and
off the frame for quick
shooting.
This Z-finder will magnify
the LCD screen by 2x
and has a diopter for fine
focus tuning. It cuts out
any extraneous light
helpful for outdoor
shooting and offers an
initial point of stability by
pressing your eye against
the large eyecup. The
FS5 Z-finder comes with
a 40mm diameter Zacuto
designed optic, anti-fog
coated protective lens,
and the mounting system
designed specifically for
the FS5 LCD.
?
Check out our
tutorial videos
at zacuto.com
Parts and Features
x1 Z-Finder Pro
x1 Focus Ring
x1 Eyecup & Lens Door
x2
Extender Frames
x2 Anti-Fog Shield

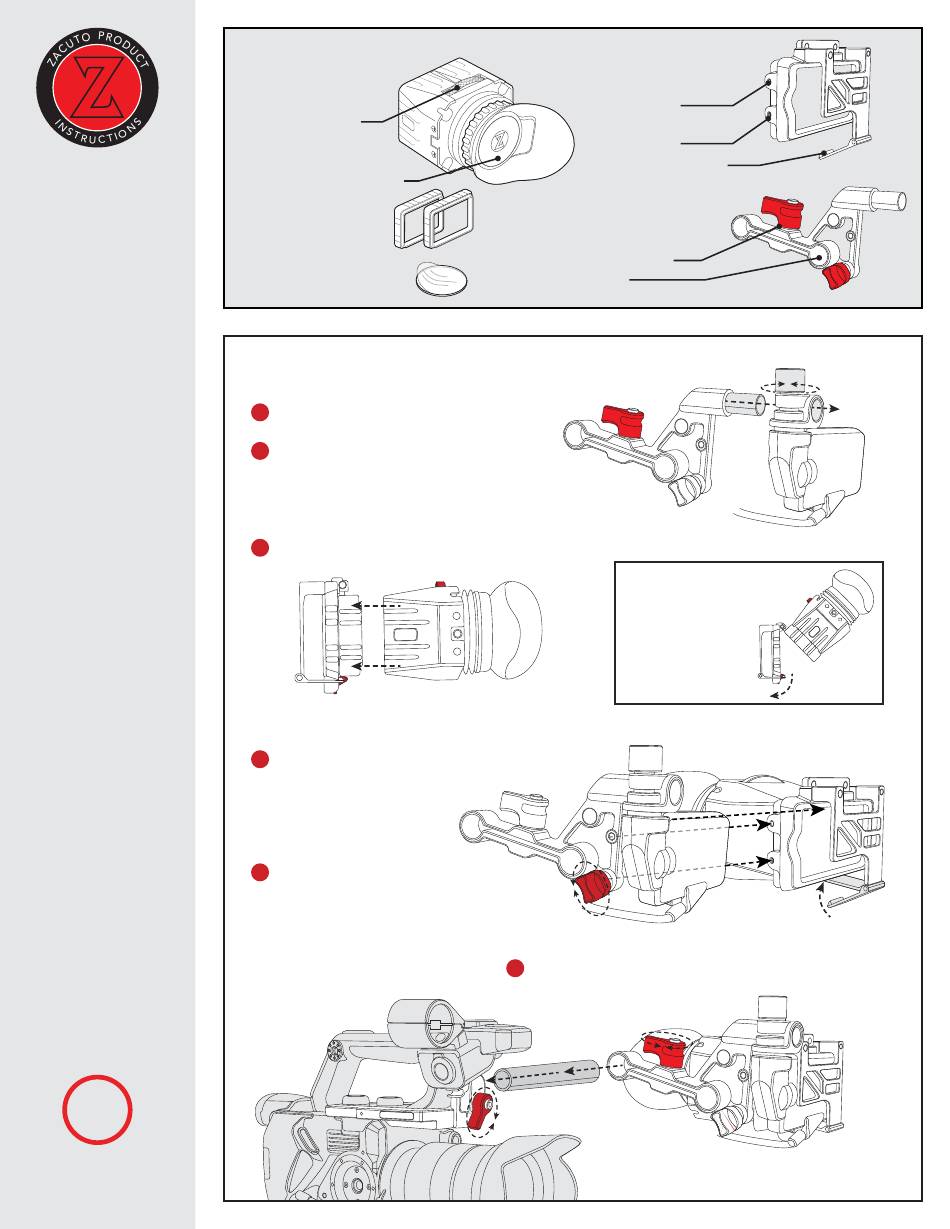

Assembling Sony FS5 Z-Finder
1
Orient FS5 LCD as shown in picture.
2
Slide FS5 rod adapter into LCD rod hole
and tighten knob.
3
Snap the Z-Finder Pro to the FS5 Frame
4
Slide LCD and FS5 rod adapter into
Z- Finder and tighten red knob.
5
Secure LCD by closing the black latch
on the bottom of the Z-Finder frame.
x1
FS5 Z-Finder
Mounting Frame
x1
Bracket Pin
Hole
x1
Bracket Screw
Hole
x1
Screen Latch
x1
FS5 Z-Finder Rod
Adapter
x2 Tightening Lever
x2 Rod Ports
To flip up the Z-Finder,
use red latch at the
bottom of the
Z-Finder Frame
6
Mount FS5 Z-Finder onto rod as shown
in picture and tighten red levers.
