VCT PRO INSTRUCTIONS

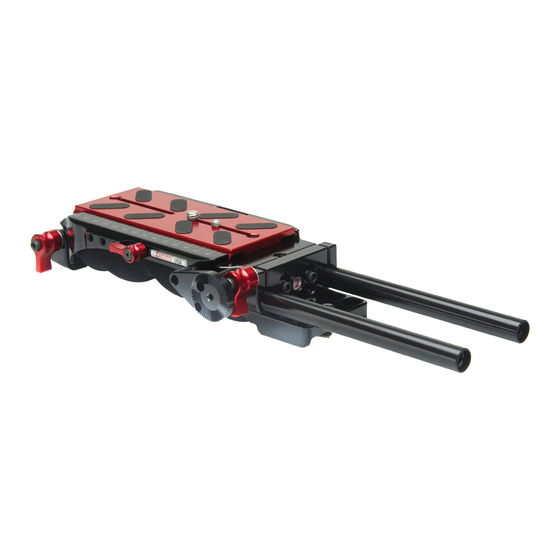

The VCT Pro baseplate has sleek lines, a comfortable shoulder pad and offers incredible balance. The
red sliding top plate offers easy adjust-ability for lens changes, removing your camera, and balancing
your rig correctly on your shoulder. The rod mount is set back 3" further than on any other VCT style
baseplate providing absolutely essential accessory room under your camera lens for a balanced rig.
Parts & Features
X2
15 mm Rods
X1
Rod Mount
X1
1/4"-20 Mounting Screw
X1
3/8"-16 Mounting Screw
X1
Sliding Red Plate
(Quick Release)
X3
Side 1/4"-20
Mounting Holes
X1
Mini Ratcheting Lever
X1
M6 Rosette
X2
Ratcheting Levers

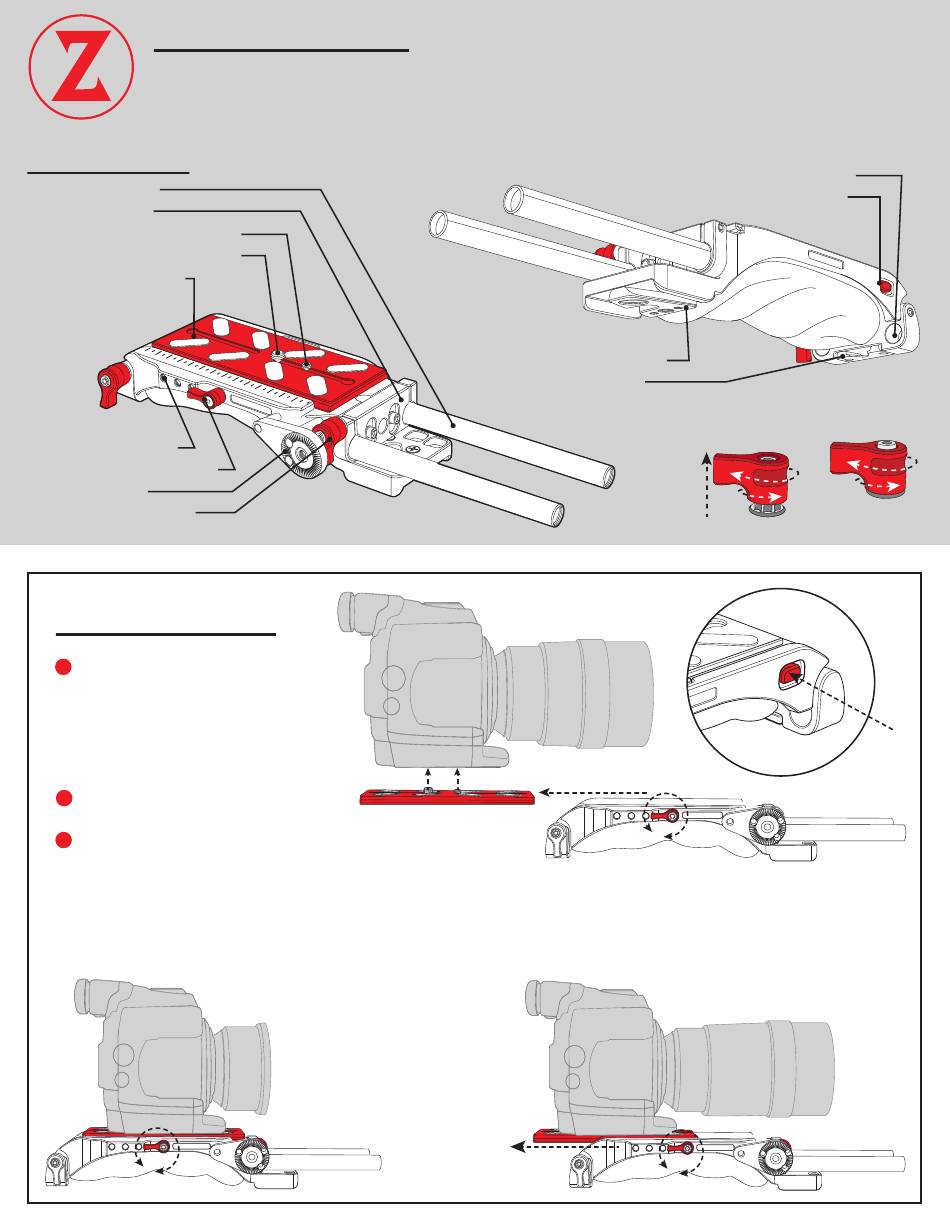

Mounting your camera
to the VCT Pro
1
Remove red plate from baseplate
by loosening the ratcheting
lever and sliding the red plate out
the back end of the baseplate.
Push in the sliding plate release to
unlock the red plate.
2
Screw camera to red plate.
3
Slide red plate back into baseplate.
Making sure to push in the sliding plate release.
The VCT Pro is designed to make it easier to keep your rig balanced when changing lenses. Instead of remounting the
camera on the baseplate, simply slide the red plate forward or back by using the ratcheting lever
For shorter lenses, slide the red
plate forward. For longer lenses,
slide the red plate back.
X2
15mm Rear Rod Ports
X1
Sliding Plate Release
X1
VCT Wedge
X1
Tail Hook
Pull knob out
to reposition.
Right Tight
Left Loose
