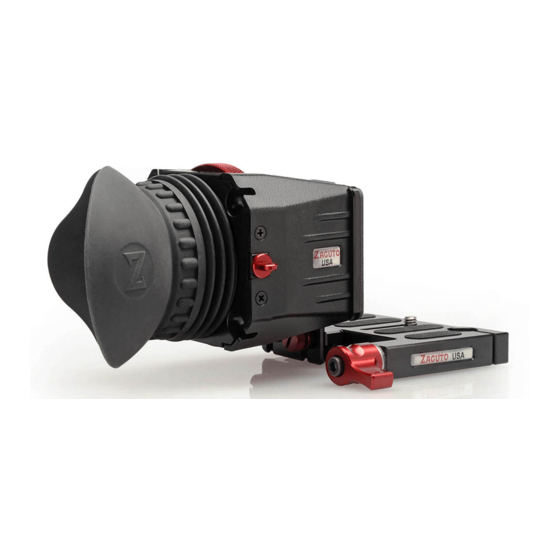

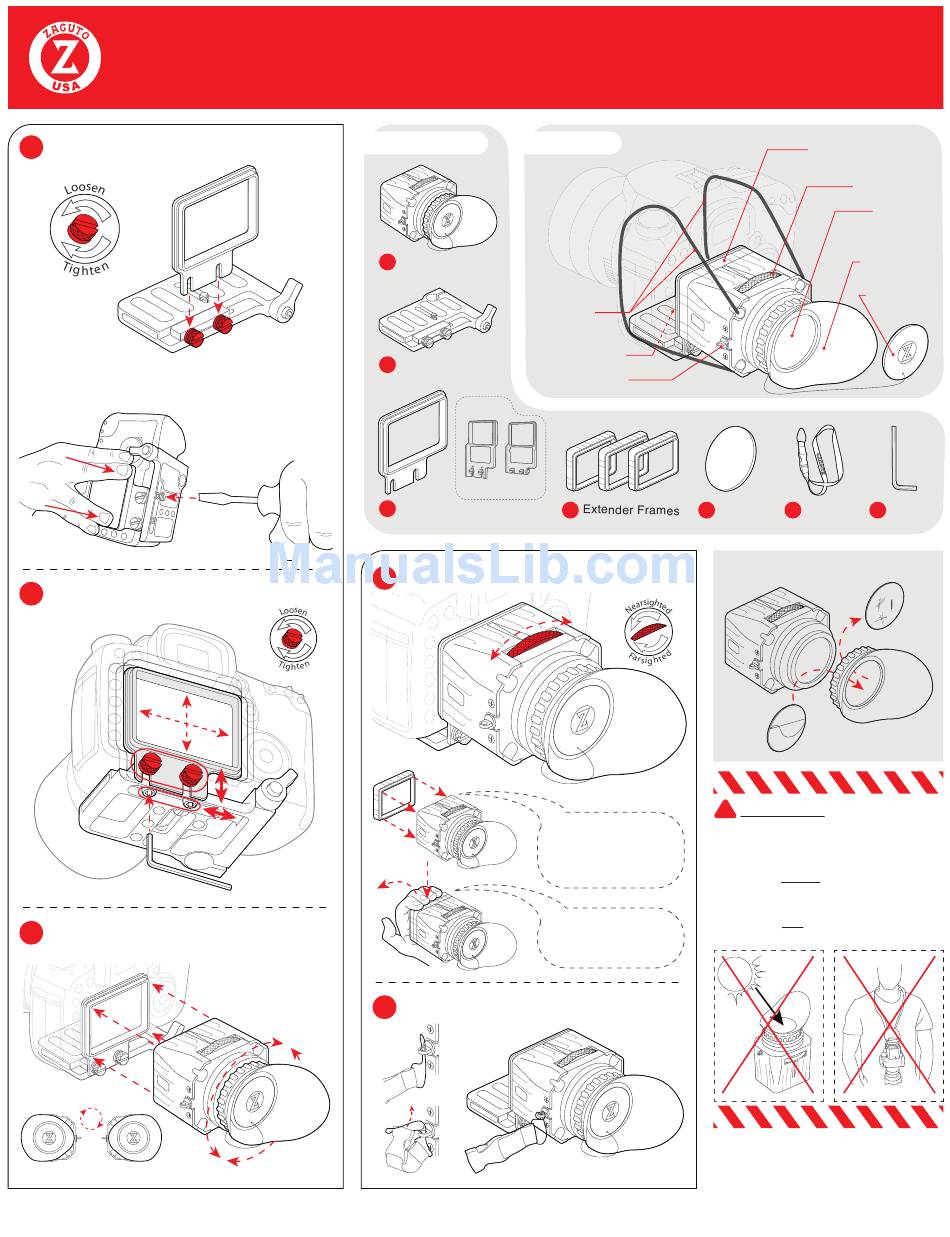

Zacuto Z-Finder Operating Instructions

1
Attach frame to Gorilla Plate
Press and hold frame against LCD and
attach to camera with 1/4"-20 screw
2
Center frame on camera LCD
3
Rotate eyecup for desired position
and attach Z-Finder to frame
Left Eye Right Eye
Operating your Z-Finder
Included Parts: Features:
x1
Z-Finder Pro
Z-Bands
(Optional)
1/4"-20 Screw
x1 Gorilla Plate
Lanyard Loop
Optional
Battery Tall
Grip Body
x1 Mounting Frame
4
Focus the Z-Finder
If focus can't be ob-
tained, attach single
extender frame until
focus is achieved
To remove extender
frames, press down in
middle and pull away
5
Install lanyard for protection
a.
b.
x3 x1
Anti-Fog
Cover
( )
Installation of Anti-Fog Cover
Use letters in menu
screens to focus on
!
The anti-fog protective covers naturally
have a tackier surface than standard
lenses and thus need to be cleaned
differently. Do not wipe anti-fog protec-
tive cover with a dry lens cloth or tissue.
Use a micro fiber lens cloth or Kim Wipe
type tissue and soak with water. Wipe
the cover then let air dry.
c.
Stackable Extender
Frames
Focus Ring
Anti-Fog
Protective
Screen
Orientable
Eyecup
Lens Cap
x1 x1
Lanyard 5/32"
Allen
Old
New (Peel off film)
