Zacuto VCT Universal Baseplate Instructions

Z
VCT Universal
Baseplate

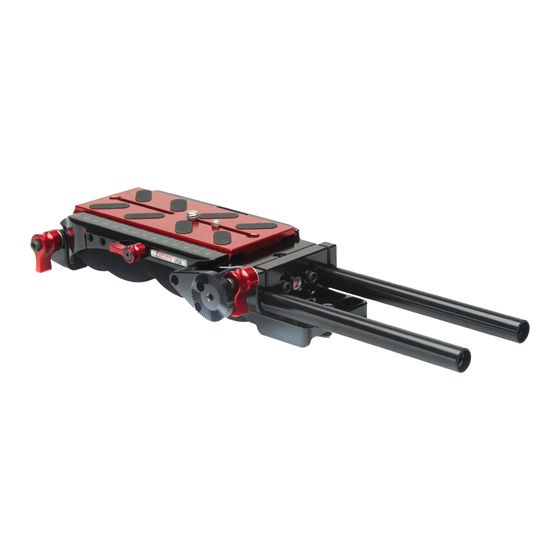

The VCT Universal
baseplate has sleek
lines, a comfortable
shoulder pad and
offers incredible
balance. The VCT
Universal features a
long screw track for
camera placement
and balance. The rod
mount is set back 3"
further than on any
other VCT style
baseplate providing
absolutely essential
accessory room
under your camera
lens for a balanced rig.
?
Check out our
tutorial videos
at zacuto.com

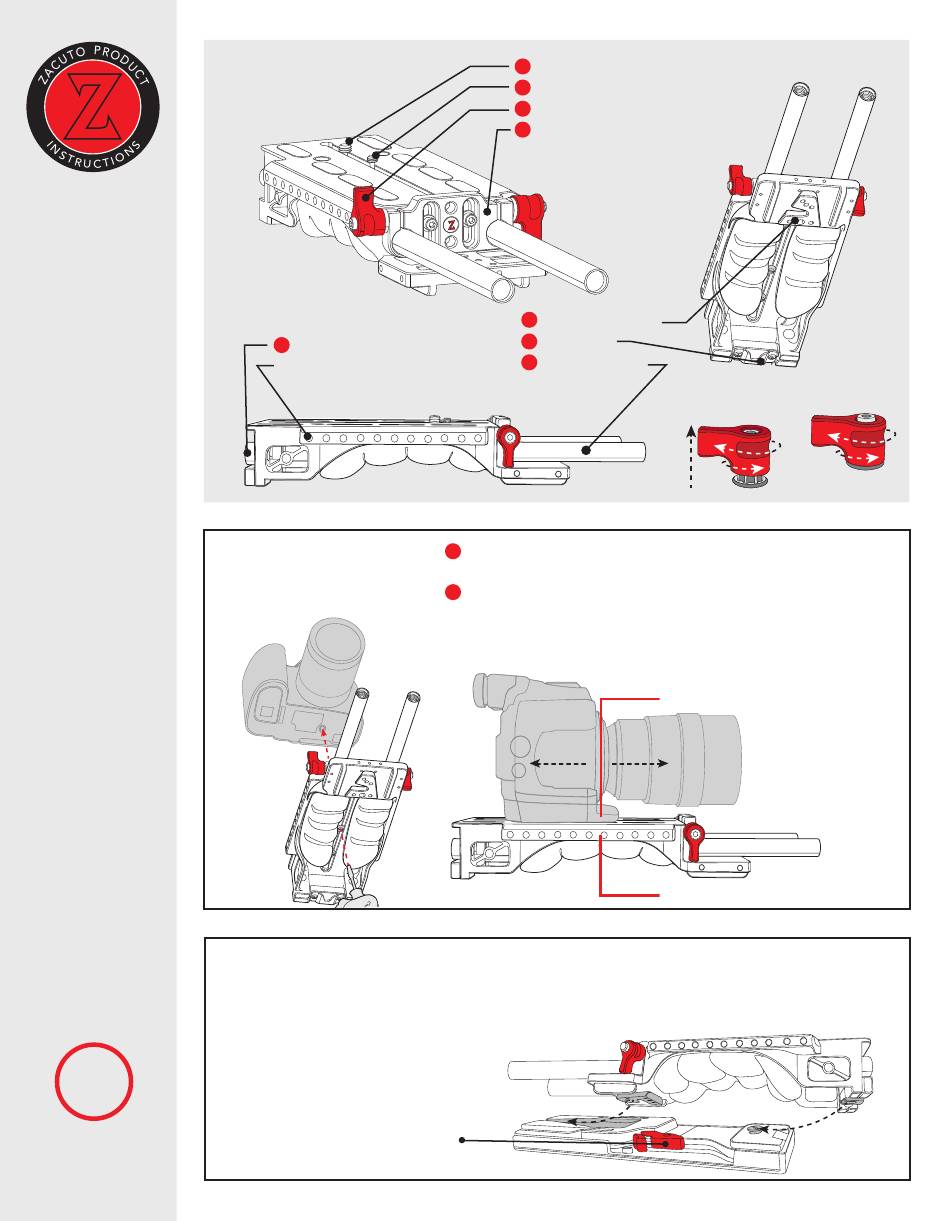

Parts & Features
2 Rear Rod Ports
Side 1/4"-20 Mounting Holes
Mounting Camera
Mounting VCT Plate to VCT-14 Tripod Quick Release Plate
(VCT-14 Sold Seperatly)
Mount VCT Plate to VCT-14 by sliding the front wedge into front slot of VCT-14 and
the tail hook around the rear knob of VCT-14. The VCT-14
will click when the VCT Plate is locked into place.
Pull red lever on VCT-14 to
release your Universal VCT Plate.
1
3/8"-16 Mounting Screw
1
1/4"-20 Mounting Screw
2
Racheting Levers
1
Rod Clamp Riser
1
VCT Wedge Plate
1
Tail Hook
2
15mm Rods
1 From the bottom of the VCT Plate, screw the 1/4"-20 or 3/8"-16
mounting screw into the bottom your camera.
2 Before securing in place, add on accessories to be used to help
find the true balance of your camera. Align both the VCT and
camera's center of balance and secure mounting screw in place.
Pull knob out
Right Tight
to reposition.
Left Loose
Camera Center of Balance
VCT Universal Baseplate Center of Balance
