Status
These icons show the status of the signalling paths and if there are any outstanding alarms. Green for the signalling path
icons indicates signalling paths are successfully connected to the platform. Red indicates that a path is down.
The bell icon is green in the example above as we have no alarms showing in the system messages box, which you would
expect to see as the system will be set.
If no PIN inputs are in alarm the bell icon will be green.
System messages
The system messages box will scroll though the key messages:
- Battery – will indicate if supply is low
- Alarms GPI Cut – Any PIN inputs that are in the cut state ( EOL or DEOL)
- Alarms GPI short – Any PIN inputs that are in the short state ( DEOL)
- Alarms GPI – Any PIN inputs in alarm
- Mobile 1 Signal strength – signal strength in dBm and the name of the mobile network operator
- Mobile 2 Signal strength – signal strength in dBm and the name of the mobile network operator
The menu bar on the left hand side can take you to any of the menu options described below.
Should you need to make any changes in the following menu options click on save. This will save your changes to the unit.

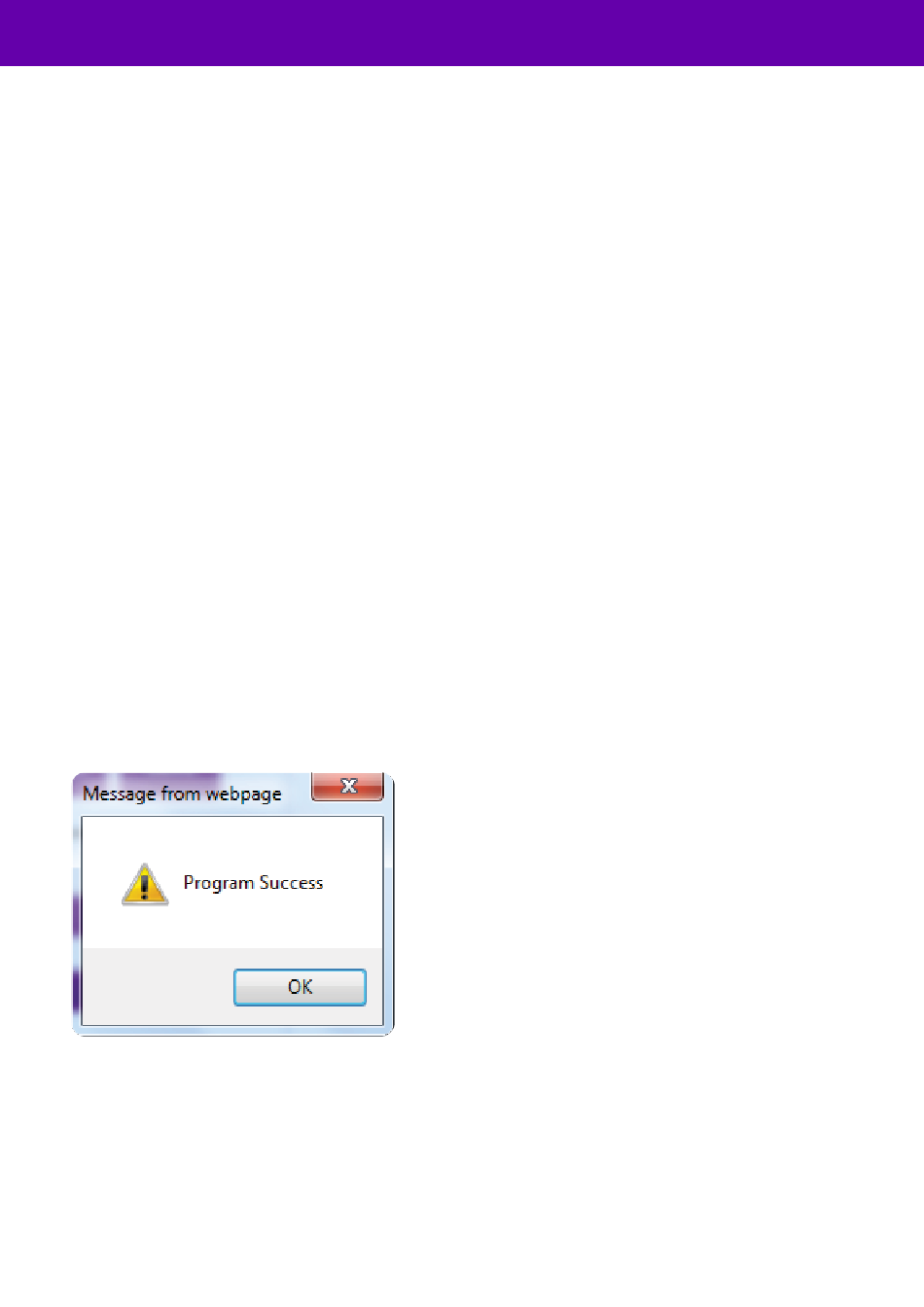

The above will be shown when changes have been saved. Click OK to continue.
