Mounting the Monitor

The monitor panel can be attached to a wall, swing arm, or other mounting fixture.
NOTE: This apparatus is intended to be supported by UL or CSA or GS Listed wall mount bracket.
CAUTION: This monitor supports the VESA industry standard 100 mm mounting holes. To attach a thirdparty
mounting solution to the monitor, four 4mm diameter, 0.7 pitch, and 10 mm long screws (M4 x 10mm screws) are
required. Longer screws must not be used because they may damage the monitor. It is important to verify that
the manufacturer's mounting solution is compliant with the VESA standard and is rated to support the weight of
the monitor display panel. For best performance, it is important to use the power and video cables provided with
the monitor.

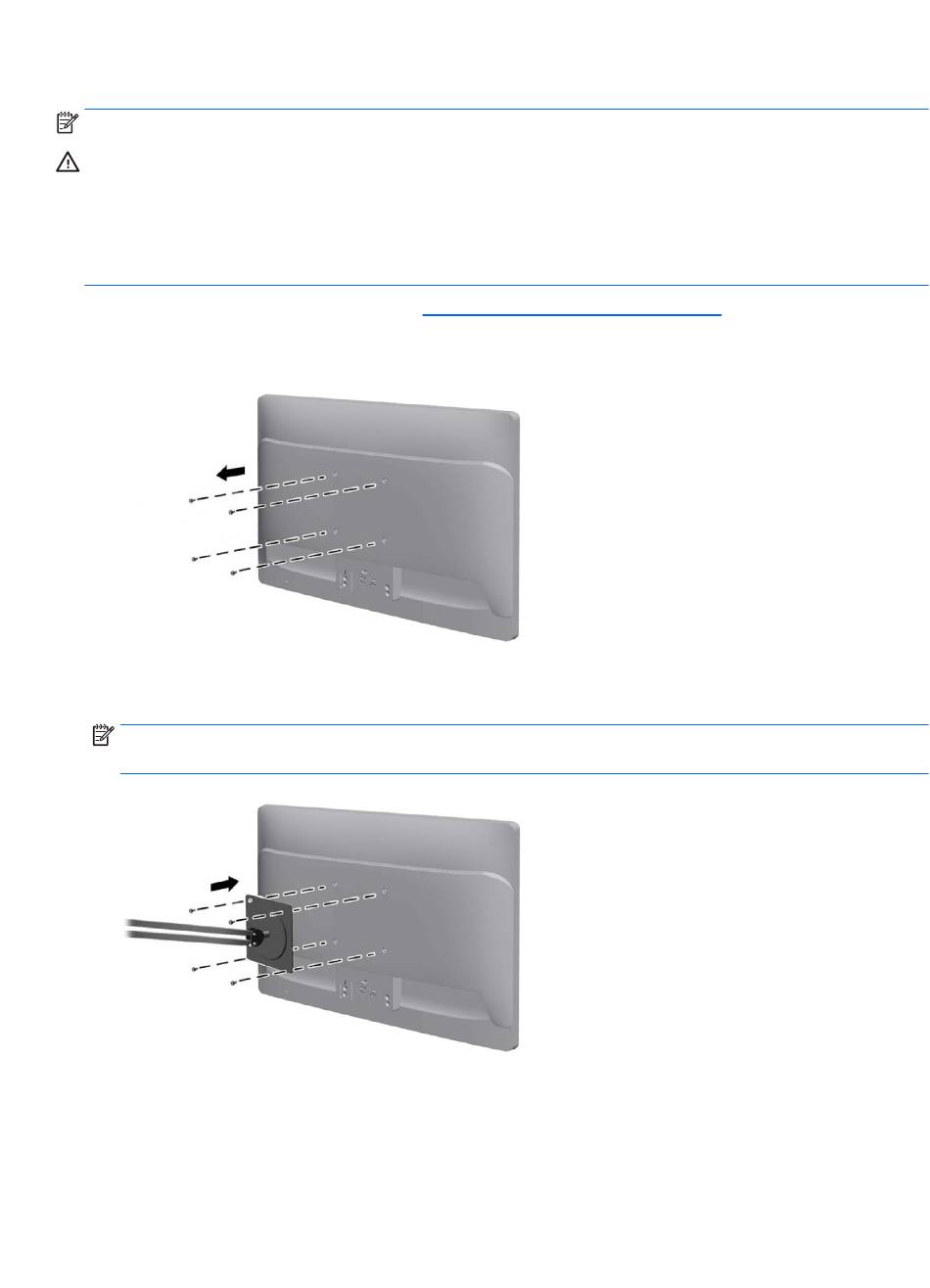

1. Remove the monitor from the stand (see
2.
Remove the four screws from the VESA holes located on the rear of the monitor.
3. To attach the monitor to a swing arm (sold separately), insert four 10mm screws through the holes on the
swing arm plate and into the mounting holes on the monitor.
NOTE:
fixture to ensure that the monitor is safely attached.
4. Reconnect the cables to the monitor panel.
12 Chapter 3 Setting up the monitor
To attach the monitor to other mounting fixtures, follow the instructions included with the mounting
Removing the monitor stand on page 11).
