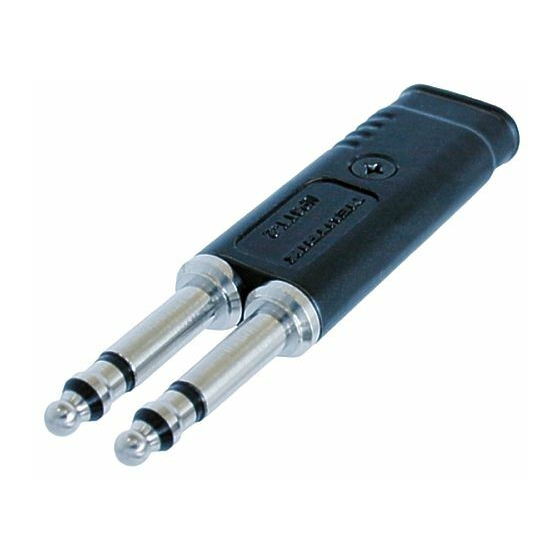

NEUTRIK Dual Plug NP3TT-2 Assembly Instructions

0.173" (4.4 mm) BANTAM-TYPE MINIATURE PLUGS
Assembly Instructions
figure 1
figure 2
7
figure 3
figure 4
Dual Plug NP3TT-2
25 25
20 20
15 15
10 10
3
T1
R1
T2
R2

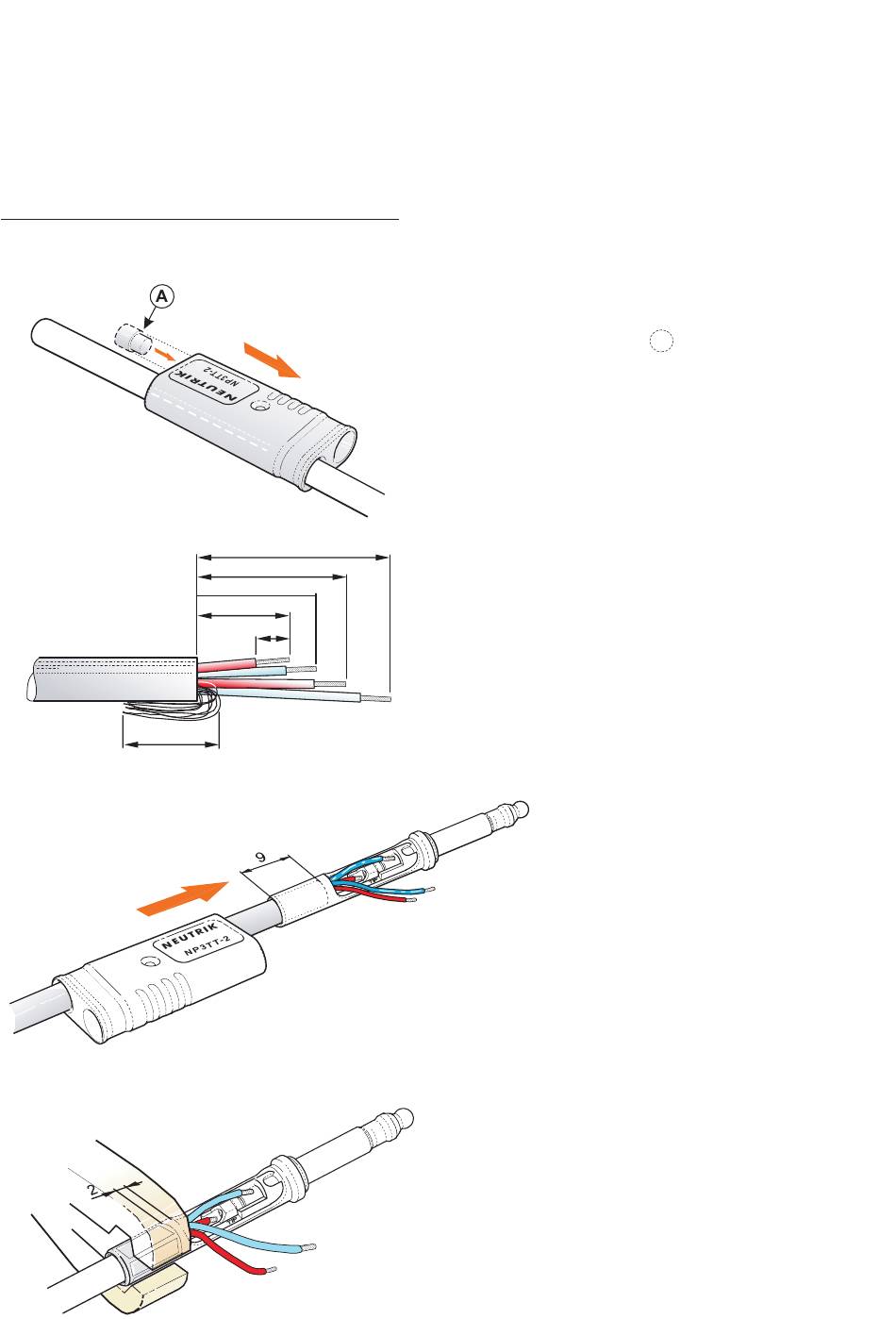

First slide the housing onto the cable and
insert the sealing cap
Prepare the cable by stripping 25 mm of the
jacket.
Reduce the shielding strands to a length
of 7 mm and bend them over the jacket.
Shorten the wires and strip the insulation as
indicated in figure 2.
Slide the prepared end of the cable into
the open end of the plug, so that 9 mm of
unstripped cable rests inside the plug.
Next crimp the end of the plug with a
standard 6.35 mm hexagonal crimping tool
(RG 58).
Crimp only in the area designated in
figure 4! _
A
into the other hole.
