ASSEMBLY INSTRUCTION
ASSEMBLY INSTRUCTION

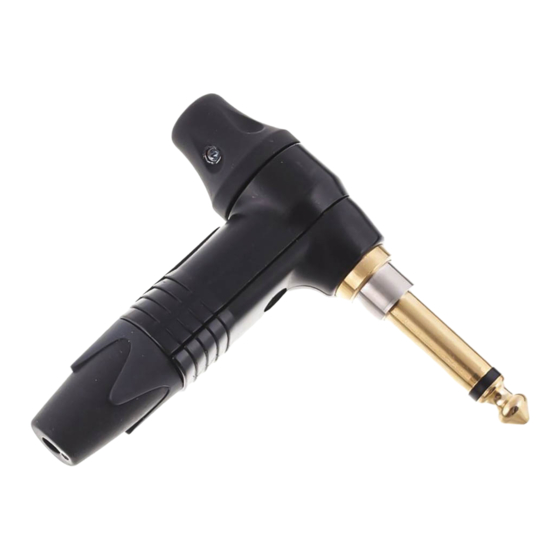

NP2RX-ULTIMATE
A
B
Cable O.D. 4.0 - 7.0 mm [0.16 - 0.27"]
4
[
0.16"
Tip
Shield
C
TIMBRE
2.
Tip
Shield
Silent
Switch
E
F
BDA 386
]
[
]
10
0.39"
[
]
25
0.98"
1.
D
|
1/4" Guitar - ultimatePLUG
Slide the boot onto the cable.
Prepare cable as shown.
Position the red cover next to the shell:
S older the SHIELD to the ground lug.
1.
2.
Solder the red cable (TIMBRE)
combined with the hot wire to the TIP
lug.
Sliding the screw (D) into the hole and
between the wires before ......
Position the cover on the shell (E) and fix
it with a screw driver (POZIDRIV #1) the
screw (F).
®
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NEUTRIK NP2RX-ULTIMATE
Summary of Contents for NEUTRIK NP2RX-ULTIMATE
- Page 1 ASSEMBLY INSTRUCTION ASSEMBLY INSTRUCTION NP2RX-ULTIMATE 1/4" Guitar - ultimatePLUG Slide the boot onto the cable. Cable O.D. 4.0 - 7.0 mm [0.16 - 0.27”] Prepare cable as shown. 0.16” Shield 0.39” 0.98” Position the red cover next to the shell: TIMBRE S older the SHIELD to the ground lug.
- Page 2 T: +91 / 982 05 43 424 F: +91 / 22 26163 540 Vertriebs GmbH Draft. Nr.: BDA 386 Update: 13.09.2016 Page 2 Data subject to change without prior notice. 2016 NEUTRIK . ALL RIGHTS RESERVED. NEUTRIK are registered trademark. © ® ® www.neutrik.com...
