pottery barn kids PRESTON Important Safety And Assembly Instructions
Bookcase hutch
Hide thumbs
Also See for PRESTON:
- Manual (8 pages) ,
- Instructions manual (8 pages) ,
- Quick start manual (4 pages)
Subscribe to Our Youtube Channel
Related Manuals for pottery barn kids PRESTON
Summary of Contents for pottery barn kids PRESTON

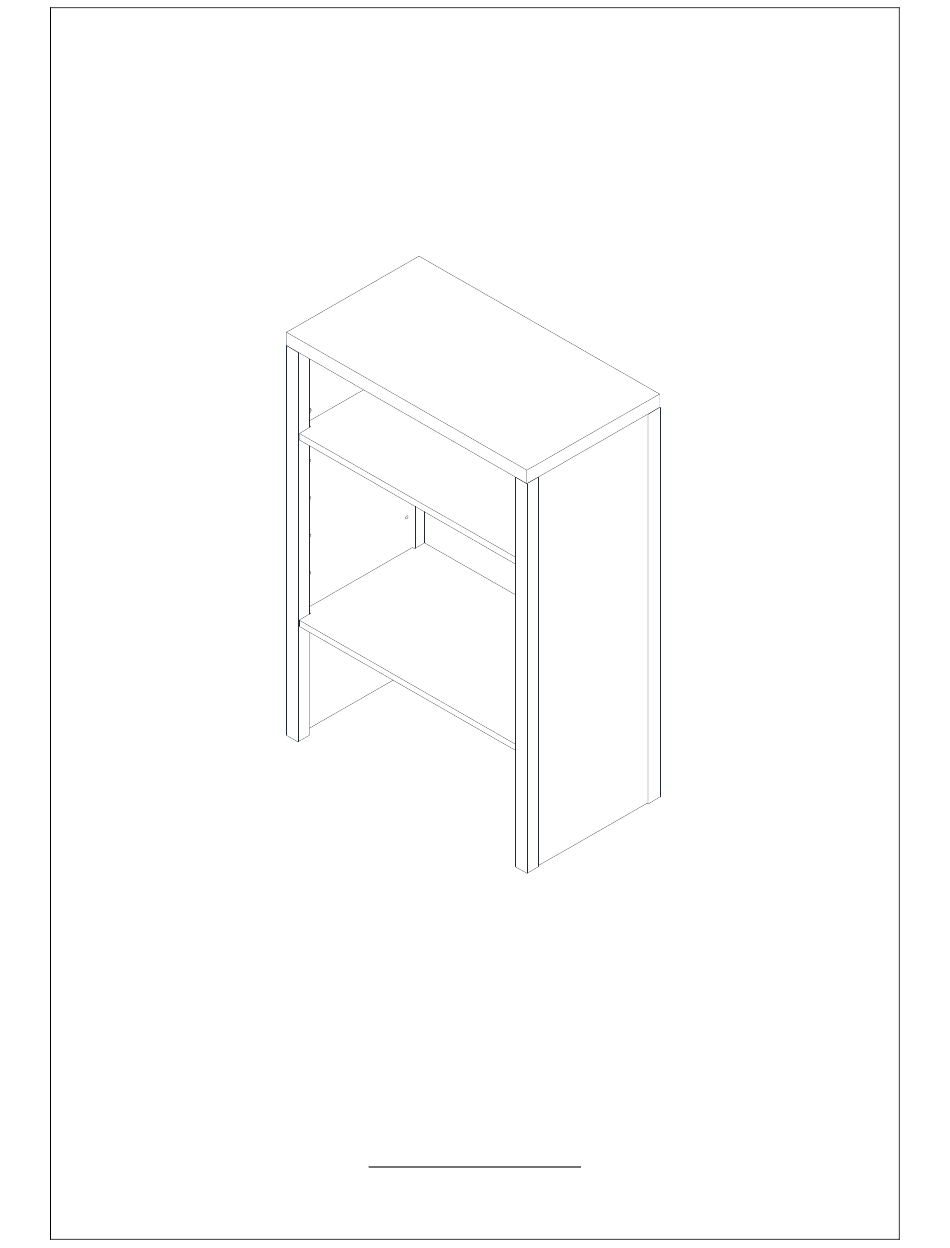

- Page 1 PRESTON BOOKCASE HUTCH www.potterybarnkids.com Date: 2014-Sept-14 Page 1 of 8 Rev:...
- Page 2 (G) Upper Back Panel (1x) (H) Middle Back Panel (1x) (I) Lower Back Panel (1x) Parts Required: Preston Media Base (sold separately) Hardware Included: (J) Allen Key – 1x (K) Long Bolt (1/4”x45mm) – 2x (L) Short Bolt (1/4”x25mm) – 8x (N) Flat Washer (1/4”) –...
- Page 3 Tools Required: Philips Screwdriver (not included) Power Drill (not included) Drill Bit Φ2mm (not included) Drill Bit Φ6mm (not included) Assembly Instruction Steps: 1. Attach the Fixed Shelf (D) and the Stretcher (F) to the Left Side Panel (B), by aligning the exposed wooden dowels to the pre-drilled holes, as seen in the illustration below.
- Page 4 5. With the help of another person, carefully turn the assembled Bookcase Hutch upright. 6. Attach Top Panel (A) onto the assembled piece, with the pre-drilled holes and exposed wooden dowels aligned. 7. Insert 4 sets of: Short Bolt (L), Spring Washer (M), and Flat Washer (N). 8.
- Page 5 11. Attach the assembled Back Panels to the pre-assembled piece and secure with 32 Wood Screws (S), as shown below. 12. Insert 4 Shelf Support Pegs (R) into the corresponding holes inside the assembled Hutch as seen below. 13. Place the Adjustable Shelf (E) onto the Shelf Support Pegs. Make sure the Shelf is stable. 14.
- Page 6 17. Repeat Steps #15- #16 to attach the second “T”- Metal Bracket. 18. Adjust the levelers located on bottom of the Media Base to keep the assembled unit level as needed. 19. NOTE: Installation of the Anti Tip Kit is REQUIRED. Please follow the separate instructions to secure the Hutch to the wall by using tipping-restraint kit included.
- Page 7 23. Attach the Large Driller Bit Φ6mm (not included) to the Power Drill (not included). 24. Drill through the pre-drilled holes created from STEP #22 in a 90-degree angle from the outside of the Side Panel, as seen in the illustration below. LEFT Drill Bit Φ6 25.
- Page 8 31. Assembly is now complete. 32. Keep the assembly instructions for future reference in case there is a need to connect the assembled unit with other Preston system units. Care Instructions: Dust often using a clean, soft, dry, and lint-free cloth.
- Page 9 FURNITURE TIPPING RESTRAINT WARNING: This product is only a deterrent. It is not a substitute for proper adult supervision. Manufacturer assumes no liability for improper installation or excessive loads placed on screws, brackets or straps. Young children may be injured by tipping furniture and the use of a tipping restraint is highly recommended.
