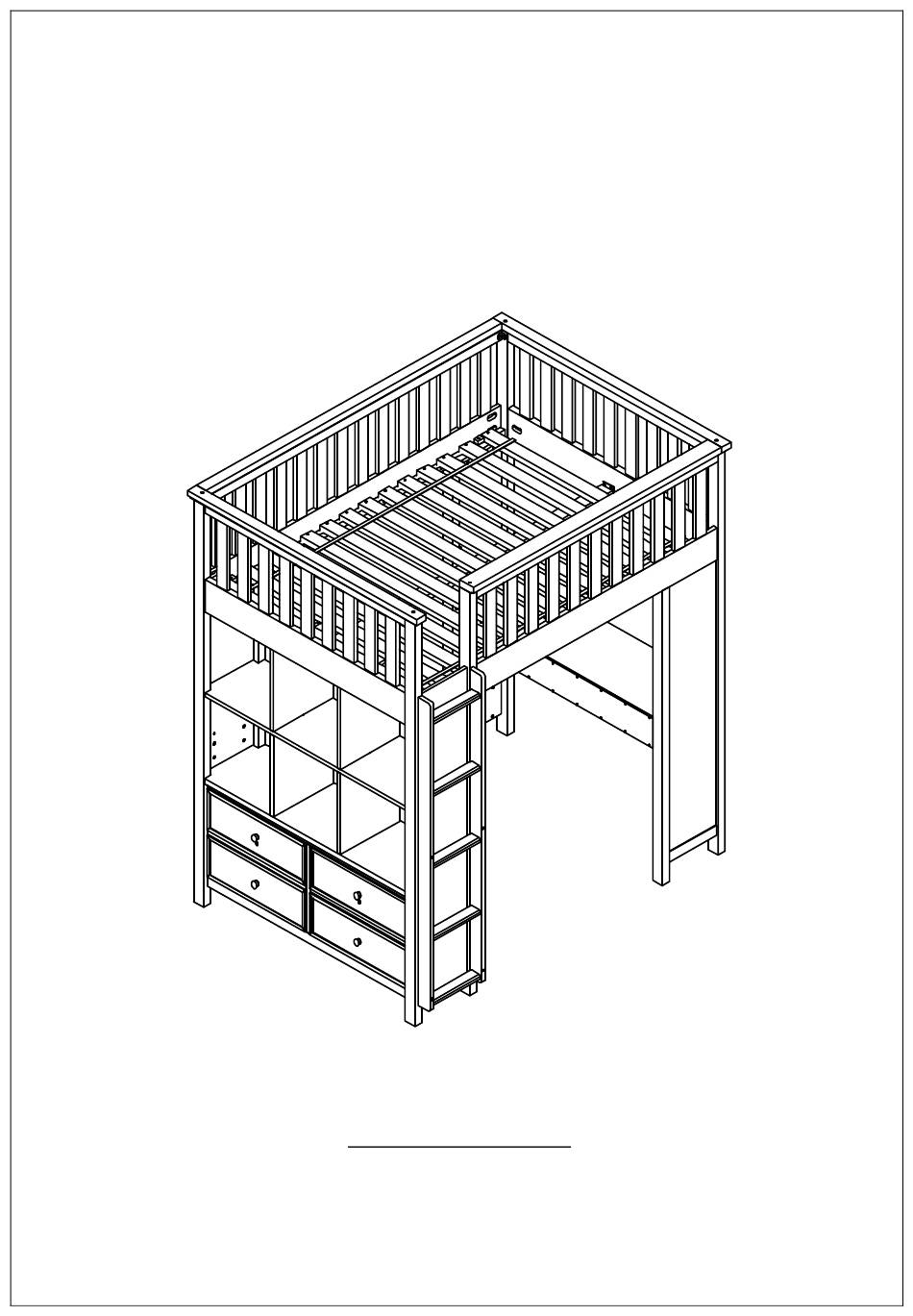

- Page 1 ELLIOTT LOFT SYSTEM www.potterybarnkids.com Date: 2015-NOV-06 Page 1 of 14 Rev: 2015-DEC-03...
- Page 2 Before each usage or assembly, inspect bunk bed for damaged hardware, loose joints, missing parts or sharp edges. DO NOT use bunk bed if any parts are missing or broken. DO NOT use substitute parts. Contact pottery barn kids for replacement parts and and instructional literature if needed.
- Page 3 Important Safety Instructions: Please read all instructions carefully before assembling. For your safety, assembly by two or more adults is strongly recommended. Keep instructions for future use. Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural integrity of the item.
- Page 4 HARDWARE INCLUDED: (O) Allen Key– 1x (P) Bracket – 3x (Q) Half-Moon Metal Block – 12x (T) Bolt M6x55mm – 12x (R) Spring Washer – 51x (S) Flat Washer – 51x (U) Bolt M6x35mm – 7x (V) Bolt M6x25mm – 32x (W) Wood Screw 4x30mm –...
- Page 5 Assembly Instruction Steps: 1. Remove the drawers from on (A)&(E) and set aside as shown below. Open the Drawers to its maximum opening Each drawer is equipped with 1 rubber stopper that prevents the drawer from being removed during normal operation During assembly, the drawer can be removed with minor force as the rubber stoppers will bend to allow the drawer to be removed...
- Page 6 4. Attach (I) to the assembled piece by aligning pre-drilled holes with wooden dowels as shown below. Note: Do not fully tighten until all bolts are in place. (V) Bolt M6x55mm – 4x (R) Spring Washer – 4x (S) Flat Washer – 4x 5.
- Page 7 6. Attach (B) to the assembled piece by aligning pre-drilled holes with wooden dowels as shown below. 7. Attach (F) to (B) by aligning pre-drilled holes with wooden dowels as shown below. (Q) Half-moon Metal Block – 1x (R) Spring Washer – 11x (S) Flat Washer –...
- Page 8 8. Attach (D) to the assembled piece by aligning pre-drilled holes with wooden dowels as shown below. 9. Attach (L) to (A) as show below. (Q) Half-moon Metal Block – 1x (R) Spring Washer – 13x (S) Flat Washer – 13x (T) Bolt M6x55mm –...
- Page 9 11. Attach (D) to (C) by aligning pre-drilled holes with wooden dowels as shown below. (Q) Half-moon Metal Block – 1x (R) Spring Washer – 5x (S) Flat Washer – 5x (T) Bolt M6x55mm – 1x (V) Bolt M6x55mm – 4x Date: 2015-NOV-06 Page 9 of 14 Rev: 2015-DEC-03...
- Page 10 12. Attach (B) to the assembled piece by aligning pre-drilled holes with wooden dowels as shown below. (Q) Half-moon Metal Block – 1x (R) Spring Washer – 7x (S) Flat Washer – 7x (T) Bolt M6x55mm – 1x (U) Bolt M6x35mm -2x (V) Bolt M6x55mm –...
- Page 11 13. Attach (G&H) to the assembled piece by aligning pre-drilled holes with wooden dowels as shown below. (Q) Half-moon Metal Block – 8x (R) Spring Washer – 9x (S) Flat Washer – 9x (T) Bolt M6x55mm – 8x (U) Bolt M6x35mm -1x Date: 2015-NOV-06 Page 11 of 14 Rev: 2015-DEC-03...
- Page 12 14. Attach (P) as shown below. Tips: Check alignments before tightening the bolts. Do not over tighten. (P) Bracket – 3x 15. Attach (M) to the assembled unit as shown below. (X) Machine Screw 3/16”x15mm – 6x Date: 2015-NOV-06 Page 12 of 14 Rev: 2015-DEC-03...
- Page 13 16. Place (N) onto the bed with (W). Insert (U), (R) and (S) to secure (N) to (M) as shown. 17. Insert the drawers back by aligning the female runner and male runner as shown below. Tips: Bend the plastic stopper before inserting the drawer to its place. It will require some force to insert the drawer back to its position.
- Page 14 18. When needed, adjust the levelers located under posts up and down to keep level. Care Instructions: Dust often using a clean, soft, dry and lint-free cloth. Blot spills immediately and wipe with a clean, damp, cloth. We do not recommend the use of chemical cleansers, abrasives or furniture polish on our lacquered finish. ...
