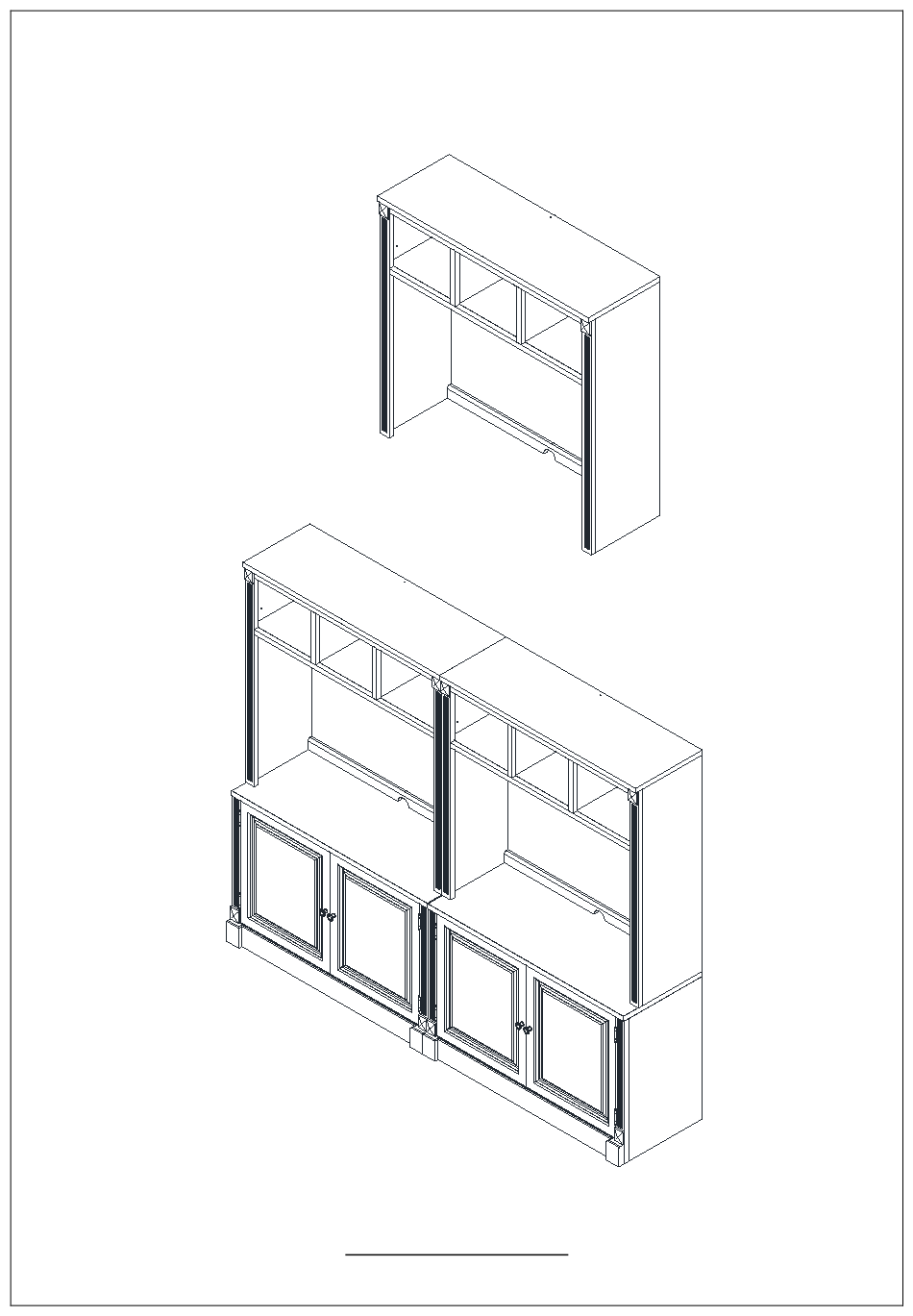

- Page 1 GRACE XW BRIDGE www.potterybarnkids.com Date: 2014-Sept-16 Page 1 of 10 Rev: 2015-Jan-21...
- Page 2 (C) Right Side Panel (1x) (D) Shelf (1x) (E) Bottom Rail (1x) (F) Back Panel (1x) (G) Divider (2x) Parts Required: Grace XW Media Base (Sold separately) Hardware Included: Bolt M6x32mm – 16x (I) Bolt M6x50mm – 6x (L) Half Moon Washer –...
- Page 3 Tools Required (not included): Philips Head Screwdriver Power Drill Assembly Instruction Steps: 1. Attach Shelf (D) to the Right Side Panel (C) with the pre-drilled holes and pre-installed dowels aligned. 2. Secure with 2 sets of: Bolt (H), Spring Washer (J), and Flat Washer (K), as seen below. 3.
- Page 4 Ledge 11. With the help of another person, carefully turn the assembled Wall Bridge upright. 12. Attach Top Panel (A) to the pre-assembled piece, with the pre-drilled holes and pre-installed dowels aligned, as seen below. 13. Insert 8 sets of: Bolt (H), Spring Washer (J), and Flat Washer (K), as seen in the illustration below. 14.
- Page 5 17. Check alignments and tighten all connecting bolts at this time. 18. Attach the Back Panel (F) to the pre-assembled piece and insert 40 FH Screws (N), as shown below. Ensure screws at the bottom corner fixed first to align the pre-drill holes on back panel and insert nut as shown below 19.
- Page 6 24. With the help of another person, adjust the levelers (located on the bottom of the base) to keep the entire set level before going onto the next step. 25. To secure the Bridge / Wide Media Base to the wall, first attach Metal Bracket (S) and PH Screw (R) to the Top Panel of the Bridge, as shown in the illustration below.
- Page 7 29. Turn the Metal Bracket (S) back into place over the ITW Toggle Bolt (T). 30. Insert the ITW Toggle Screw (U) through the hole of Metal Bracket (S) and into the ITW Toggle Bolt (T) on the wall, as shown in the illustration below. 31.
- Page 8 36. Attach the Large Drill Bit (V) to the Power Drill (Not included). 37. Drill through the pre-drilled holes created from STEP #35 in a 90-degree angle from the outside of Side Panel, as shown in the illustration below. LEFT 38.
- Page 9 39. Follow STEPS #19 - #23 to attach the Bridge to the Wide Media Base. 40. Adjust the levelers on the Media Bases as needed. Place the Bridges/Wide Media Bases in the desired location. 41. Align the Bridges / Wide Media Bases together, as seen below. 42.
- Page 10 46. This Bridge can be combined with another Bridge, the Hutch/Media Base, or Tall Bookcase, as seen in the illustration below. Option 1 Option 2 Option 3 Care Instructions: • Dust often using a clean, soft, dry, and lint-free cloth. •...
