Summary of Contents for pottery barn kids TREEHOUSE BUNK

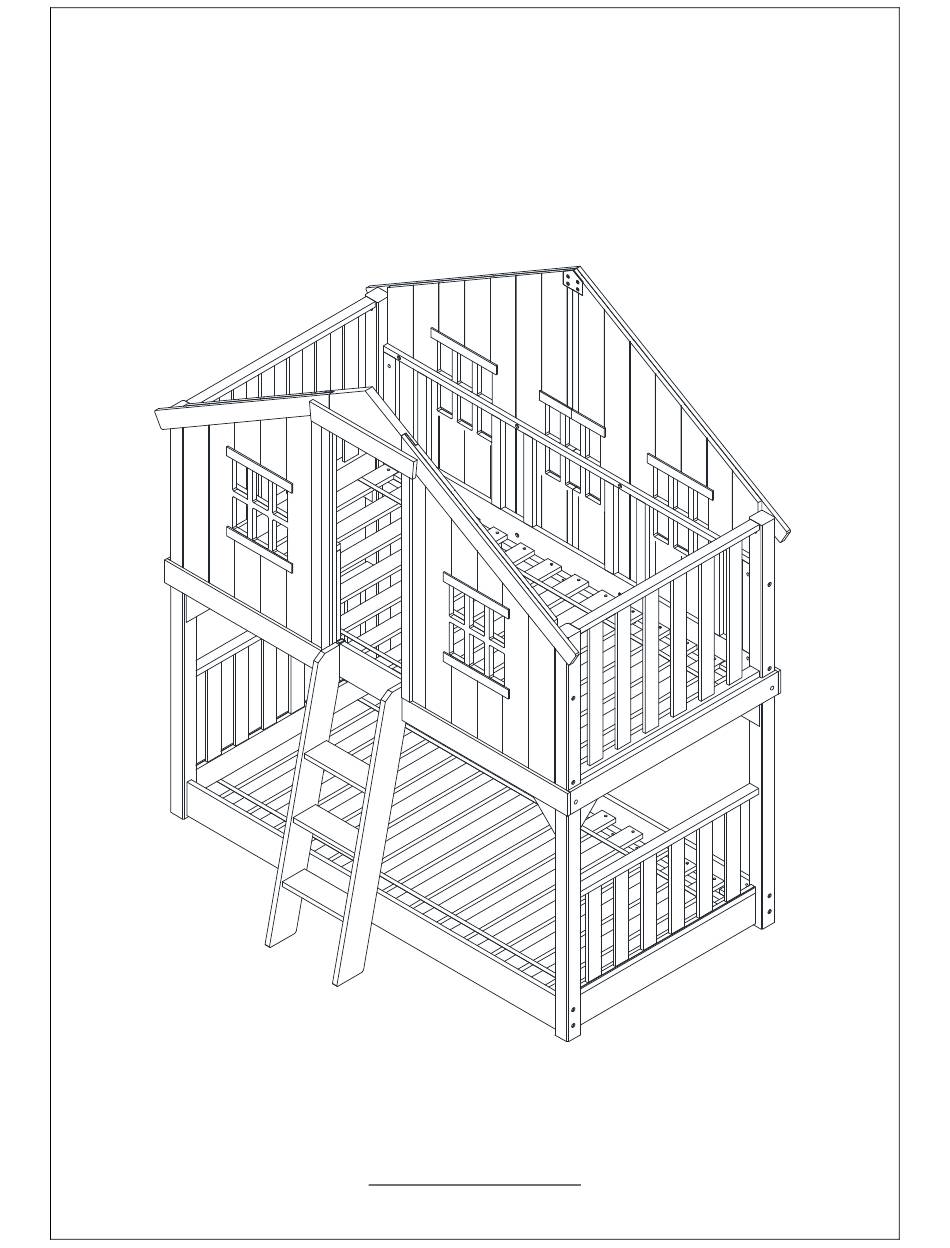

- Page 1 TREEHOUSE BUNK www.potterybarnkids.com Date: 2015-MAY-16 Page 1 of 8 Rev:...
- Page 2 Before each usage or assembly, inspect bunk bed for damaged hardware, loose joints, missing parts or sharp • edges. DO NOT use bunk bed if any parts are missing or broken. DO NOT use substitute parts. Contact pottery barn kids for replacement parts and and instructional literature if • needed.
- Page 3 Important Safety Instructions: Please read all instructions carefully before assembling. • For your safety, assembly by two or more adults is strongly recommended. • Keep instructions for future use. • Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural •...
- Page 4 HARDWARE INCLUDED: (K). Allen Key– 1pc (L) Bolt 5/16”x110mm – 20x (M) Bolt 1/4”x78mm – 4x (N) Bolt 1/4“x54mm – 8x (O) Bolt 1/4“x30mm – 16x (P) Bolt 1/4“x22mm – 4x (Q) Bolt 1/4“x17mm – 4x (R) Spring Washer 1/4” – 32x (S) Flat Washer 1/4”...
- Page 5 4. Slide a Spring Washer (R) and a Flat Washer (S) onto each Bolt (N). A ttach (4) Triangle Block (I) and insert (8) Bolts (N) with washers to pre-drilled holes as shown below. Tighten all bolts with Allen Key (K) but do not over tighten 5.
- Page 6 7. Attach Rear Right Panel (E-2) to Rear Guardrail (C) by inserting (4) Bolts (O) with Spring Washer (R) and Flat Washer (S) using Allen Key (K) as shown in illustration below. 8. Insert (1) Bolt (M) with Spring Washer (R) and Flat Washer (S) to secure the Rear Right Panel (E-2) to End Board post using Allen Key (K) as seen below.
- Page 7 11. Attach Front Right Panel (D-2) to Front Guardrail (B) by inserting (4) Bolts (O) with Spring Washer (R) and Flat Washer (S) using Allen Key (K) as shown in illustration below. 12. Insert (1) Bolt (M) with Spring Washer (R) and Flat Washer (S) to secure the Front Right Panel (D-2) to End Board post using Allen Key (K) as seen below.
- Page 8 15. Attach Ladder (H) to the front opening and insert (2) Short Screw (W) using a Phillips Head Screw Driver as shown Do not over tighten. below. 16. Place (2) Slat Roll (F) on the upper/lower bed platforms and insert (28) Long Screw (V) to secure each Slat Roll using Phillips Head Screwdriver as shown below.
