SWITCHBOARDS, PROGRAMMABLE FOR 1 OR 2 MOTORS
IMPORTANT: DO NOT INSTALL THE SWITCHBOARD BEFORE READING THE INSTRUCTIONS!!!!
1. Introduction.
The Argo control unit is an apparatus fit to manage operation and control of 1 or 2 wing gates with 230V AC motors and power of up to 600W each.
The time functioning of the control unit, being of electronic type, is extremely precise. It is however possible that, due to the type of the motor
normally utilised, the corner of the travelling time of the wing is strongly influenced by the frictions that the wing self meets during the
course.
Consequently , also if the time is correctly set, the corner of the wings' opening can not be always the same wished.
Therefore it is advisable that the installer considers it, increasing, if necessary, the times of work in the more consonant measure with
the installation and making anyway attention to the fact that an excessive increasing of the time could mask the slowing down in opening
and in closure (see paragraph 6).
For the correct functioning it is also necessary the installation of the mechanical stops in opening and in closure (see pag. 6).

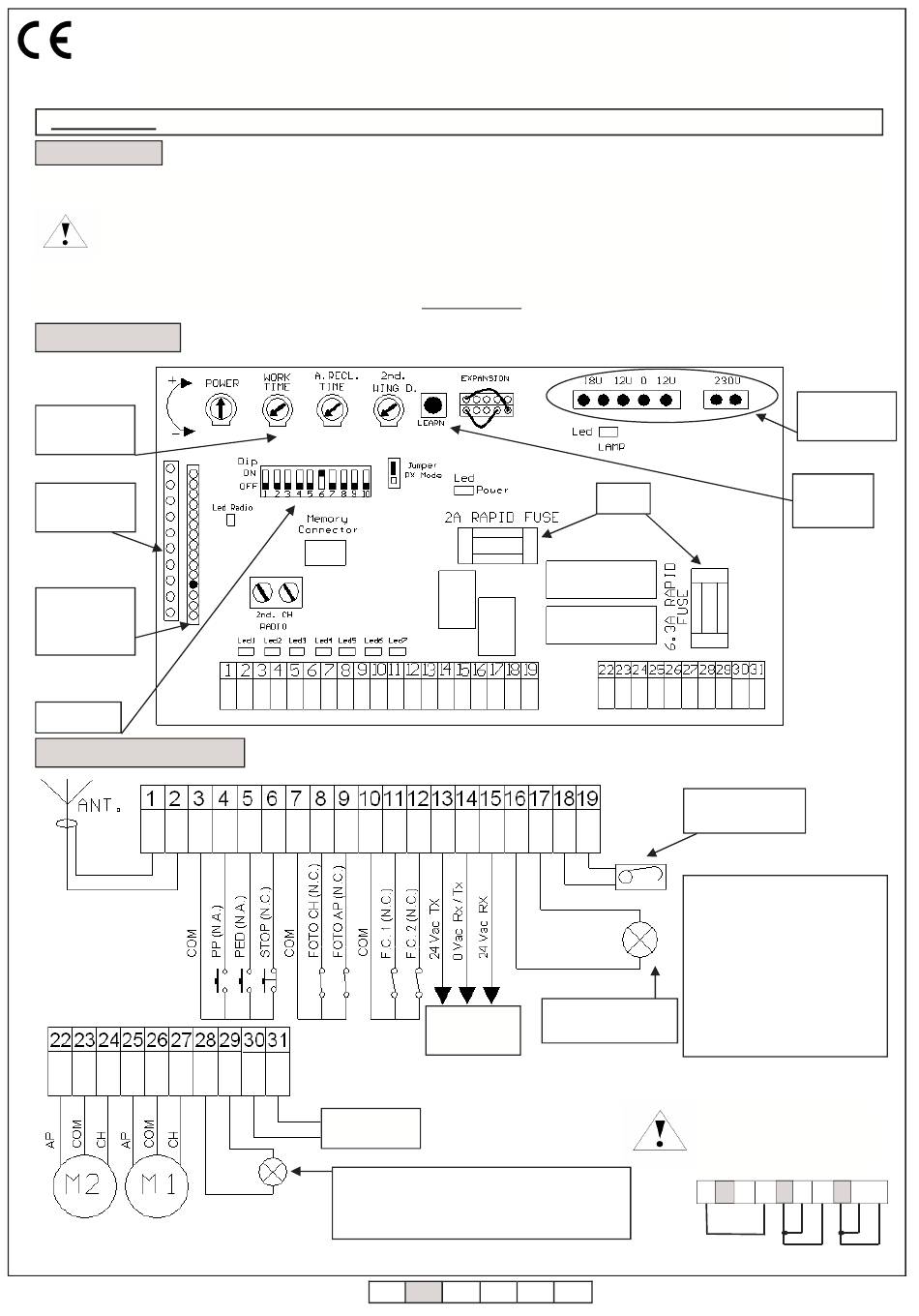

2. Configuration.
Trimmer of
regulation
Molex radio
module
Connector
radio
module
Dip-switch
3. Electrical connections.
Motor 2
Motor 1
6-1622192
rev. 14
21/09/2012
ARGO 1 - ARGO 2 SERIES
WITH INDEPENDENT SLOWDOWN CONTROL
Power supply
230 Vac 50 Hz.
Flashing light 230 Vac 60W max
N.B.: Use flashing light B.RO LIGHT FIX.
ITA
Indicator of open gate
Photocells
24 Vac 2W max.
power supply
(see par.7.6)
)
(Without autoflashing circuit
ENG
FRA
ESP
DEU
POR
Fuse
Electrolock output
12 Vac 12W Max
Table of contents:
FOTO CH = Photocell closing
FOTO AP = Photocell opening
AP = open
CH = close
Com = Common
PP = step by step button
Ant = Antenna
PED = Pedestrian button
F.C. 1 = limit switch 1
F.C. 2 = limit switch 2
Any control or safety device de-
signed for acting as a Normally
Closed (N.C.) contact, must be
provided with a jumper, if not
used.
3
4
5
6
Connector
transformer
Learning
button
7
8
9 10 11 12
1/9
Advertisement
Related Manuals for Allmatic ARGO 1 Series
Summary of Contents for Allmatic ARGO 1 Series
- Page 1 ARGO 1 - ARGO 2 SERIES SWITCHBOARDS, PROGRAMMABLE FOR 1 OR 2 MOTORS WITH INDEPENDENT SLOWDOWN CONTROL IMPORTANT: DO NOT INSTALL THE SWITCHBOARD BEFORE READING THE INSTRUCTIONS!!!! 1. Introduction. The Argo control unit is an apparatus fit to manage operation and control of 1 or 2 wing gates with 230V AC motors and power of up to 600W each. The time functioning of the control unit, being of electronic type, is extremely precise.
-
Page 2: Safety Warnings
SAFETY WARNINGS • Some points of the electrical card are under voltage. Therefore, the installation, the opening and the programming of board have to be done only by qualified staff. All the operations executed by the user do not require box opening. •... - Page 3 5.2 Using the hidden key of an enabled transmitter already learnt. Push the hidden taste Function active only with B.RO rolling code models “e” 1. Using a staple, press the hidden button of a transmitter already learned. The learning function is pointed out when the blinking light switches on.
- Page 4 6.2 Torque adjusting of the motor. The control unit Is furnished with a trimmer for adjusting the torque supplied to the motor, in order to limit the force of gate against some obstacles that might get in the way during motion (for ex. poor/fair functioning of photocells). POWER For regulating the torque applied by the motor, proceed as follows: •...
- Page 5 Installation notes: Power supply to ALLMATIC photocells, or compatible types, must be connected to different terminals, depending on wheter it is necessary to activa- te or de-activate testing on the photocells. The correct wiring diagram for a couple of photocells is the following:...
- Page 6 Type of limit switch Function Start of slowdown only in closing: the start of slo- wdown phase in closing is set off by the intervention of Opening limit switch No operation both limit switches (one for each wing), while it is only 4 5 6 7 9 10 Limit switch 1 and 2...
- Page 7 8. Additional variations. If the water hammer or the electronic locking activation are not matched with gate characteristics, these may be modified inserting the learned instruc- tion that follow. These instructions are carried out with a 4 button transmitter, in which all the keys have been learnt by the central unit. To enter the learning function, the gate must be closed.
- Page 8 8.4. Adjustment returned motion. Once performed movement gate regulation, it is possible that the point in which the wings stop the opening phase does not correspond to the one programmed. Two situations may be presented: 1. Wings opening-corner, equivalent to opening gate condition, DECREASE to each reversal motion and/or by intervent of photocells. 2.
-
Page 9: Technical Details
11.2 Additional radio channel. If the radio receiver operates on card bases, there is the possibility to fit the control unit with an output block for an additional radio channel (with N.A. contact). However, the additional channel is not available if you are using the hybrid module contained as standard in the control unit. 11.3 Exit electronic locking.
