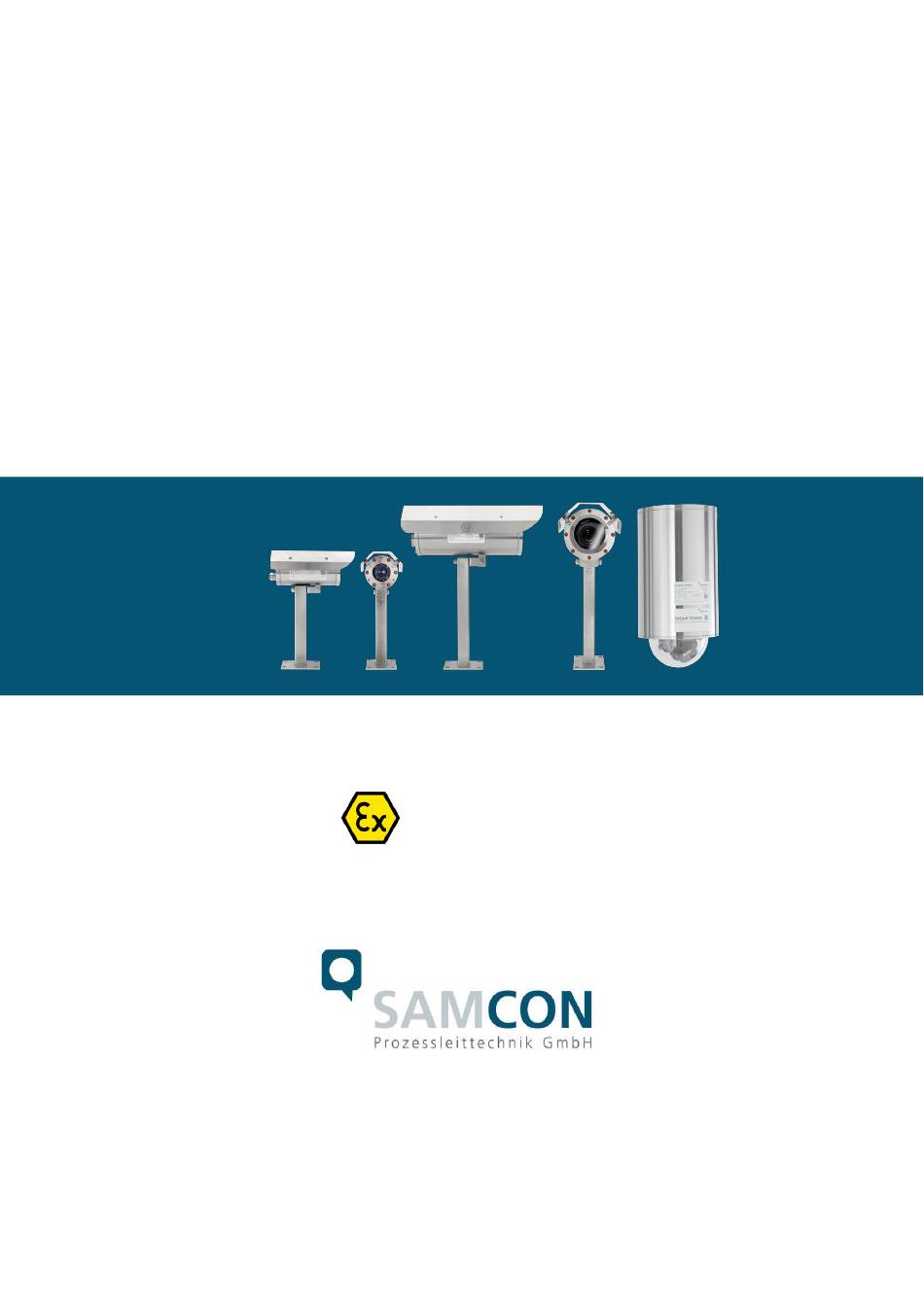

- Page 1 2018 ® Series ExCam - Installation Manual...
-
Page 2: Table Of Contents
Table of contents Introduction ......................4 Technical data ......................4 Characteristic values for explosion protection ............. 4 2.1.1 Optional marking ........................4 2.1.2 Standards basis and certificate....................5 Electrical parameters ................... 6 2.2.1 Voltage supply: .......................... 6 2.2.2 Performance, temperatures and temperature classes .............. 6 General safety instructions and special conditions .......... - Page 3 Date Name Comment Approved by the EX Supervisor 21.08.2018 T.Gruber Compilation of the document Digital unterschrieben von Steffen S.Seibert Seibert DN: cn=Steffen Seibert, o=SAMCON, ou, email=s.seibert@samcon.eu, c=DE Datum: 2018.12.05 12:20:29 +01'00' Doc.-ID: 180731-PT08BAU-SS-Ex Installation Manual rev.00.docx, Page 3 of 24...
-
Page 4: Introduction
Introduction The ExCam series (type 08) is an electrical device. It is certified and approved as a pres- sure-resistant camera system. The cameras may be used in Ex-zones 1, 2, 21 and 22, including the explosion group IIC (for example, acetylene) and IIIC (conductive and com- bustible dust). -
Page 5: Standards Basis And Certificate
WARNUNG: NICHT INNERHALB EINES EXPLOSIONSGEFÄHRDETEN BEREICHS ÖFFNEN Sicherheitshinweise in der Installationsanleitung beachten! -------------------------------------------------------------------------------------------------------------------- WARNING: DO NOT OPEN IN POTENTIALLY EXPLOSIVE ATMOSPHERES Observe the safety instructions in the installation guide! -------------------------------------------------------------------------------------------------------------------- ВНИМАНИЕ: НЕ ОТКРЫВАТЬ в потенциально взрывоопасных средах Соблюдайте инструкции по технике безопасности в руководстве по установке! AVERTISSEMENT: NE PAS OUVRIR EN ATMOSPHÈRES EXPLOSIBLES Respectez les consignes de sécurité... -
Page 6: Electrical Parameters
Electrical parameters 2.2.1 Voltage supply: The following electrical limit values are maximum values in the context of the approval. Please observe the device-specific values stated in the respective user manuals! Type T08..: Input voltage 60 V DC / 240 V AC (50/60 Hz) 2.2.2 Performance, temperatures and temperature classes The following tables illustrate the maximum thermal power supplies for all T08 ExCam... -
Page 7: General Safety Instructions And Special Conditions
Repair works affecting the explosion protection may only be carried out in accordance with the regulations applicable in the country of use and only by SAMCON Prozessleittechnik GmbH. Attention! Prior to installation, please consider external sources of heat or cold! -
Page 8: Area Of Application
When using the camera, adhere to the data speci- fied on its type plates and indicating labels! Applications other than described above are not allowed without written permission from Samcon Prozessleittechnik GmbH. Attention! Observed the instructions on the type plates and indicating labels! Attention! If you use the ExCam in the mining sector with a “high”... -
Page 9: Transportation And Storage
All parts of the housing materials, including all external metallic and non-metallic compo- nents, are made of high-quality materials to ensure corrosion protection and chemical resistance levels required for the area of application, in "regular" industrial atmospheres and within the specified temperature ranges. Transportation and storage ... -
Page 10: Types From T08-Va1.1 To Va2.2
6.1.1 Types from T08-VA1.1 to VA2.2 For monitoring of plants and/or persons, the camera can be mounted on swivelling mounts (accessories). For this purpose, the mounting pin, welded to the bottom of the camera body dispose of holes with either 6.5 mm or 8.5 mm. The wall bracket is availa- ble in different sizes and can be mounted in any position via four holes (see Figure 6-1 left). -
Page 11: Type T08-Va4.3
Fig. 6-2: T08-VA2.3 Safety wire For detailed assembly instructions on installation components and accessories, please visit http://samcon.eu 6.1.3 Type T08-VA4.3 The safety wire is also required for cameras of the type T08-VA4.3.Kx.BORx and for dome cameras of the type T08-VA4.3.Kx.PA2. -
Page 12: Opening And Closing The Housing
When adjusting the camera, you shall prevent po- tentially explosive atmosphere! The T08 ExCam series camera may only be opened due to functional aspects and only if it is explicitly allowed in the respective user manual. In all other cases, the explosion- proof housing may only be opened and closed by authorized staff of SAMCON Prozess- leittechnik GmbH. - Page 13 Fig. 6-4: Opening the ExCam T08-VAx.x.x.x camera Carefully pull out the cable and supply flange to the rear and strictly vertical- ly/perpendicularly (see Figure 6-4). There is a risk of side tilt! Because of negative pressure it may be difficult to remove the flange. H8f7 H8G7 The circular cylindrical clearance fit...
- Page 14 Attention! If the bolted connections are tightened too strongly, it can cause dam- ages to the device! Attention! Do not to damage the surface of the drill hole and the shaft (fitting) of the flame-proof gap. Attention! Ensure that you do not damage the housing seals. Keep them clean. Attention! If the fitting gap is mechanically damaged, it is no longer allowed to use the housing!
-
Page 15: Type T08-Tnxcd
When adjusting the camera, you must prevent potentially explosive atmosphere! The T08 ExCam series camera of the type TNXCD may only be opened due to functional aspects and only if it is explicitly allowed in the respective user manual. In all other cases, the explosion-proof housing may only be opened and closed by authorized staff of SAMCON Prozessleittechnik GmbH. - Page 16 At first, unscrew the stainless steel countersunk screw with internal hexagon (DIN 7991) on the flange component (see Fig. 6-5) Fig. 6-5: Removing the countersunk screw, type T08-TNXCD Unscrew the cover flange with fine thread (M188X1.5) counter-clockwise (ISO metric screw profile, right-turning). It is recommended to provide the outer M8x1.25 threaded holes with screws, ring eyelets, etc., in order to facilitate the screw driving.
- Page 17 Caution: Do not touch the screw threads with your skin or clothes! There is oil lu- bricating paste to protect the surface against fretting corrosion and mechanical stresses. Attention: Use particular care when dealing with installed components (camera module, temperature control, swivelling/tilting drives, adapters, mechanics, etc.) fixed above the mounting adapter on the cable and supply flange gland).
-
Page 18: Electrical Connection And Commissioning
Attention! Make sure that the O-ring seal of the housing is perfectly placed in its groove, not damaged and not contaminated. Attention! If the thread surface is damaged, the housing must not be longer used! Attention! Ensure that no foreign objects get entrapped in the housing. The countersunk screw with internal hexagon (DIN 7991) on the flange component must absolutely be re-tightened (approximately 2.5 Nm tightening torque is required). -
Page 19: Maintenance/ Modification
All necessary maintenance measures should be initiated and/or executed. Repair Repair must only be carried out with original spare parts of SAMCON Prozessleittechnik GmbH. Damaged pressure-resistant housings must be replaced completely. If in doubt, return the component(s) to SAMCON Prozessleittechnik GmbH. -
Page 20: Certificates
Certificates 11.1 EU - Declaration of Conformity Doc.-ID: 180731-PT08BAU-SS-Ex Installation Manual rev.00.docx, Page 20 of 24... -
Page 21: Eu Type Examination Certificate (Atex)
11.2 EU Type Examination Certificate (ATEX) http://samcon.eu 11.3 IECEx Certificate of Conformity: http://samcon.eu 11.4 EAC-Ex Certificate http://samcon.eu 11.5 Other certificates http://samcon.eu Doc.-ID: 180731-PT08BAU-SS-Ex Installation Manual rev.00.docx, Page 21 of 24... - Page 22 Doc.-ID: 180731-PT08BAU-SS-Ex Installation Manual rev.00.docx, Page 22 of 24...
- Page 23 Doc.-ID: 180731-PT08BAU-SS-Ex Installation Manual rev.00.docx, Page 23 of 24...
- Page 24 Doc.-ID: 180731-PT08BAU-SS-Ex Installation Manual rev.00.docx, Page 24 of 24...
