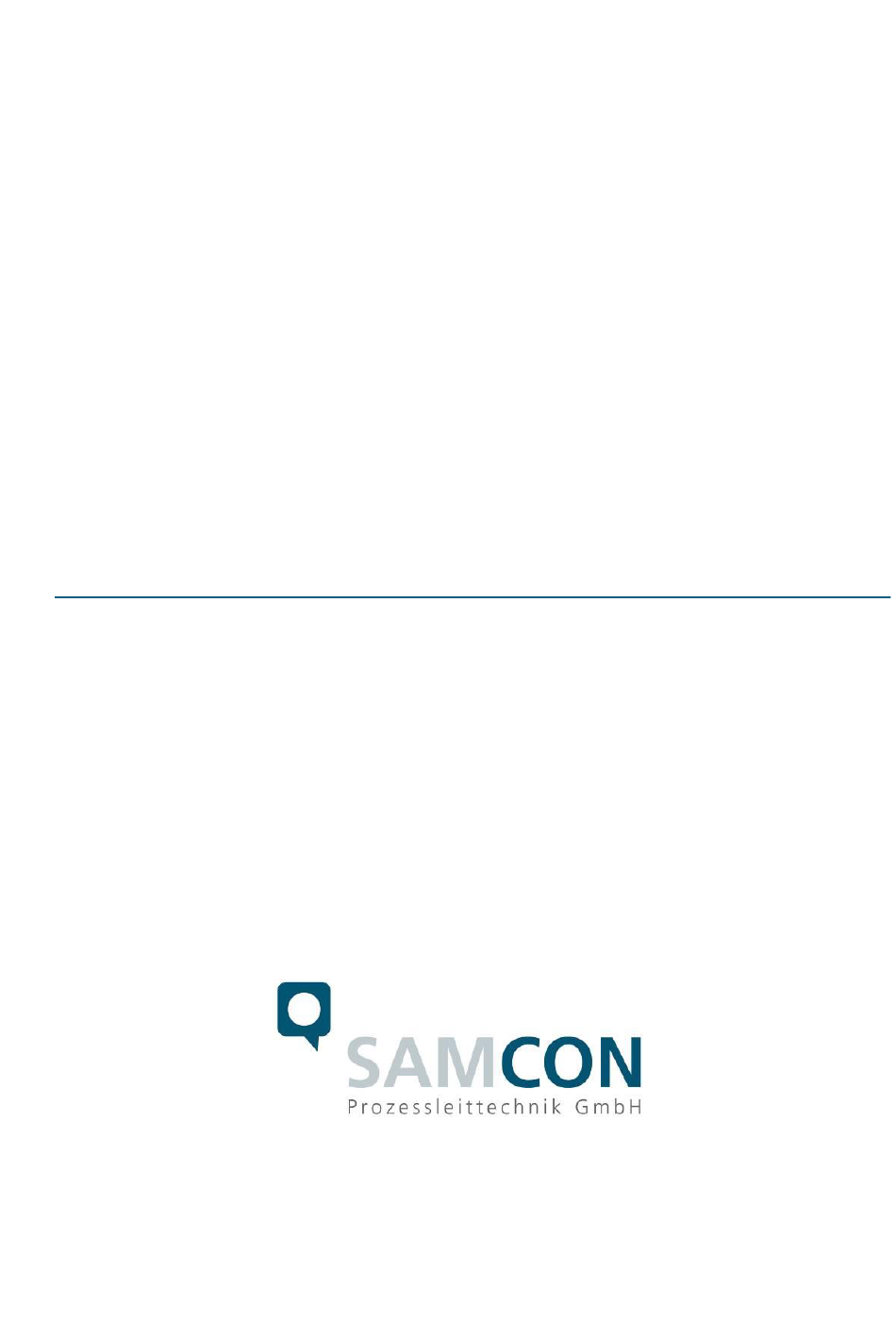

  • Page 1 ExCam ® IPP1387 User Manual...

  • Page 2: Table Of Contents

    Table of contents Introduction ......................5 Technical data ......................5 Explosion protection .................... 5 Illustration of the model key ................. 6 Electrical parameters of the camera ..............6 Connection cable Ex-d - Ex-e ................7 2.4.1 Connection cable for models without heater (SKD02-T/ASKD02-T) ......... 7 2.4.2 Connection cable for models with heater (SKDP03-T/ASKDP03-T) .........
  • Page 3 Fig. 6-1 Removing the weather protection roof (1/2) (this illustration is an example) ..27 Fig. 6-2 Removing the weather protection roof (2/2) (similar illustration) ......27 Fig. 6-3 Opening the ExCam IPP1387 (similar illustration) ..........28 Fig. 6-4. Mounting adapter with built-in components ............29 Fig.
  • Page 4 Name Comment Approved by the ATEX Supervisor Index 05.11.2024 S.Heinz Compilation of the document Digital unterschrieben von Dipl.-Ing. Steffen Seibert DN: cn=Dipl.-Ing. Steffen Seibert, o=SAMCON Prozessleittechnik GmbH, ou=CEO, email=s.seibert@samcon.eu, c=DE Datum: 2024.11.27 15:20:15 +01'00' Doc.-ID: 241105-PT08BA-SHe-ExCam-IPP1387_en_rev.00.docx, Page 4 of 36...

  • Page 5: Introduction

    Introduction The ExCam IPP1387 is a powerful mega-pixel IP camera of the latest generation, with 5- megapixel resolution at 2592 x 1944 pixels. It is certified according to ATEX, IECEx, INMETRO, PESO, MASC and EAC-Ex. The camera has a high-definition television reso- lution.

  • Page 6: Illustration Of The Model Key

    VA2.3.K3.BOR2- LL.H- 005.A- 22070564 Tab. 2-1 Model key Explanations: ExCam IPP1387 = Functional camera description of the ExCam Series (technical data/ specification of the individual camera module) T08 = SAMCON Production- Type 08 VA2.3.K3.BOR2 = T07 ex d housing (stainless steel 1.4404) with large diameter Ø...

  • Page 7: Connection Cable Ex-D - Ex-E

    4 x D after relocation Data line: 4 x 2 x AWG23/1 CAT.6 Properties: PUR halogen-free, flame-retardant, UV-re- sistant, chemical resistance, shielded Quick link: https://www.samcon.eu/fileadmin/documents/en/60-Assembling%26mounting/SKD02-T_Datasheet.pdf Fig. 2-1 Sectional view of SKD02-T Doc.-ID: 241105-PT08BA-SHe-ExCam-IPP1387_en_rev.00.docx, Page 7 of 36...

  • Page 8: Connection Cable For Models With Heater (Skdp03-T/Askdp03-T)

    4 x 2 x AWG23/1 CAT.6 Properties: PUR halogen-free, flame-retardant, UV-re- sistant, chemical resistance, shielded (see www.samcon.eu Quicklink: https://www.samcon.eu/fileadmin/documents/en/60- Assembling%26mounting/ASKD02-T_Datasheet.pdf Fig. 2-2 Sectional view of ASKD02-T 2.4.2 Connection cable for models with heater (SKDP03-T/ASKDP03-T) Systemcable SKDP03-T: Outside diameter: 12.40 ± 0.3 mm...

  • Page 9: Video-Technical Characteristics

    3G1.5 (BK-BU-GN/YE) Properties: PUR halogen-free, flame-retardant, UV-re- sistant, chemical resistance, shielded Quicklink: https://www.samcon.eu/fileadmin/documents/en/60- Assembling%26mounting/ASKDP03-T_Datasheet.pdf Fig. 2-4 Sectional view of ASKDP03-T Video-technical characteristics We use the AXIS P1387 network camera in a pressure-resistant enclosure. For details, ® please refer to the Product Documentation, video-technical data of AXIS https://www.axis.com/products/axis-p1387...

  • Page 10: Safety Instructions

    Attention! Only original parts of SAMCON Prozessleittechnik GmbH may be used for repairs. Repairs concerning the explosion protection may only be carried out in accordance with the nationally applied regulations and by SAMCON Prozessleittechnik GmbH.

  • Page 11: Installation

    Installation For erecting and operating the camera, the relevant national regulations, as well as the generally accepted rules of technology shall prevail. Before mounting the camera, thor- oughly check it for any transport damage, especially on the housing and cable. Installation, electrical connection and the first start must only be carried out by qualified specialists.
  • Page 12 Please pay attention to the national and local regulations for mounting heavy loads. If in doubt, take appropriate security measures. Drawings for drill hole patterns and further information can be viewed on our product page: Quick link: https://www.samcon.eu/en/products/network/excam-ipp1387/ Option mounting accessories WALL MOUNT BRACKET WMB-VA2.3 Wall bracket Wall bracket for devices of T08-VA2.3 series...

  • Page 13: Electrical Connection

    (right) (see Figure 5.1). The cross-section of the equipotential bonding should comply with the National Ground Rules (at least 4 mm Fig. 5-1 ExCam IPP1387 Equipotential Bonding Doc.-ID: 241105-PT08BA-SHe-ExCam-IPP1387_en_rev.00.docx, Page 13 of 36...

  • Page 14: Connection And Fusing

    802.3af and 802.3at type 1 Class 3 ("classification current: 26-30 mA @48VDC, max. feed- in power (power source equipment): 15.4 W, maximum offtake (power device): 6.49 - 12.95 W"). The data transfer of the ExCam IPP1387 series is done via a 100 Mbit/s Ethernet connection (100BASE-TX).
  • Page 15 Fig. 5-3 ExCam IPP1387 T08-VA2.3.K3.BOR2-N.H-xxx.N-T Fig. 5-4. ExCam IPP1387 T08-VA2.3.K3.BOR2-N.H-005.N-P Fig. 5-5. ExCam IPP1387 T08-VA2.3.K3.BOR2-LL.H-005.N-P Attention! Never open the Ex-e terminal box under voltage! Attention! Adhere to the international installation regulations for connection chambers with increased safety (Ex-e). Attention! Adhere to the separate Usual Manual for the Ex-e connection chamber attached in the annex.
  • Page 16 Video Tutorial: Please view our video tutorial : “SAMCON 01 Wiring the cable SKDP03-T to the junction box ExTB-3” https://go.samcon.eu/v01 Fig. 5-6 Video Tutorial ExTB-3 The pin assignment of the SKD02-T is executed in accordance with the standard EIA/TIA- 568B for 100BaseTX and 24VDC, as follows:...
  • Page 17 The pin assignment of the ASKD02-T is executed in accordance with the standard EIA/TIA- 568B for 100BaseTX and 24VDC, as follows: Camera (Ex-d) Colour Terminal Cross-sec- Comment (T568B) ASKD02-T ExTB-3 tional sur- face (IEC60757) Reinforcement YE / GN 2.5 mm Flex WH / OG 0.26 mm...
  • Page 18 L+ 24VDC 1.5 mm L- 24VDC YE / GN 1.5 mm Tab. 5-5 Wire assignment of terminal box ExTB-3 (model LL/ASKDP03-T) SKD02-T SKD02-T ExCam IPP1387 Fig. 5-7 Sample circuit of terminal box ExTB-3 (without heater) Doc.-ID: 241105-PT08BA-SHe-ExCam-IPP1387_en_rev.00.docx, Page 18 of 36...
  • Page 19 ExCam IPP1387 Fig. 5-8 Sample circuit of terminal box ExTB-3 (heater integrated) Fig. 5-9 Photo of the wired terminal box ExTB-3 Doc.-ID: 241105-PT08BA-SHe-ExCam-IPP1387_en_rev.00.docx, Page 19 of 36...

  • Page 20: Example: External Connection And Fusing Via The Terminal Box

    Bring the twisted pair composite up to about 10 mm close to the termi- nals, in order to ensure interference immunity. Attention! Use only terminals approved by SAMCON. Attention! Finally, check your network installation with a Class-D Link Test. Example: external connection and fusing via the terminal box There are several options of routing the ExTB-3 terminal box in a safe area: 5.3.1...

  • Page 21: Example: Routing Via Exconnection Rail (Optional Accessories)

    Attention! Cables and wires must comply with the requirements of the IEC 60079-0/1/7 & 14. Attention! The supply line must have a sufficient cross-section. The cable protec- tion must comply with national and international regulations. 5.3.2 Example: Routing via ExConnection Rail (optional accessories) Fig.

  • Page 22: Appropriate Cables & Cable Entries

    We show the basic procedures in the following video tutorial: “SAMCON 02 Mounting and installing Ex-d barrier glands to ExConnection Rails” https://go.samcon.eu/v02 Doc.-ID: 241105-PT08BA-SHe-ExCam-IPP1387_en_rev.00.docx, Page 22 of 36...

  • Page 23: Fusing

    Re-twist the cable pairs Fig. 5-13 Barrier gland 5.3.4 Fusing PoE power supply requires no fuses. The power supply fusing depends on the cable cross-section and length. Attention! Recommendation for fusing relates to 40W@24VDC at 100 meters 1.5 mm Attention! When the heating switches on, high current peaks occur! Use slow- blow fuses.

  • Page 24: Plug Assignments (Rj45)

    5.3.5 Plug assignments (RJ45) The data transfer of the ExCam IPP1387 uses a 100 Mbit/s Ethernet connection (100BASE-TX). If the cable termination uses a plug, the latter should be plugged into the RJ45 PoE slot of the network device (PSE). Prior to connecting it to the camera, the net- work device (PSE) can already be supplied with power, hence there is no „power ON“...

  • Page 25: Tests Prior To Switching On The Voltage

    5.3.6 Tests prior to switching on the voltage Attention! Prior to starting the device, perform all tests as indicated by the national regulations. Furthermore, check the correct function and installation of the device in accordance with this User Manual and other applicable regulations.

  • Page 26: Working Inside The Camera Housing

    Working inside the camera housing The customer may open the housing only if it is absolutely necessary. Only exchanging the SD memory card or a hardware reset are reasons for this. Open the pressure-resistant housing extremely carefully! After having finished the work, securely re-close it and ensure that the explosion protection is restored! To do this, you need to proceed step by step, as described in the instructions below.
  • Page 27 Fig. 6-1 Removing the weather protection roof (1/2) (this illustration is an example) Fig. 6-2 Removing the weather protection roof (2/2) (similar illustration) To open the ExCam IPP1387’s stainless steel housing (T07 VA2.3.x.x) of, loosen the eight cylinder-head hexagon screws (DIN 912/ ISO 4762) together with their spring rings (DIN 127A) on the rear side of the cable and power supply flange (see Fig.
  • Page 28 Fig. 6-3 Opening the ExCam IPP1387 (similar illustration) Attention: The mounting adapter with the housing’s PTC heater, camera module and op- tics, as well as the CB06 temperature control and (if applicable) auxiliary relays and termi- nal box are fixed on the cable and supply flange. Dealing with these components, too, you...

  • Page 29: Removing/Inserting A Sd Memory Card

    Removing/inserting a SD memory card Note: The ExCam IPP1387 disposes of a micro SDHC memory card slot (see Fig. 6-4 1). Saved video files can be played and deleted via the web interface. They are also available in a download list. Moreover, the videos available on the memory card can also be accessed via an FTP server in the network.

  • Page 30: Status Led

    The user can see the Status LED (Fig. 6-4) only if the camera housing is open. Hardware Reset To re-set all parameters of the ExCam IPP1387 (including the IP address) to default set- ting, a hardware reset has to be carried out.

  • Page 31: Battery

    Battery ExCam IPP1387 is equipped with a high-temperature resistant Panasonic button cell BR2330A/VAN. This cell supplies energy to the internal real time clock (RTC). The cus- tomer is not allowed to replace the battery! In this case, please contact the manufacturer.

  • Page 32: Network Access And Visualization

    Interface, please see the User Manual for Axis or visit the following website: https://www.axis.com/products/axis-p1387 The delivered ExCam IPP1387 is set to the applicable net frequency (50Hz or 60Hz). If the camera is used at a location with a differing net frequency, the image might start to flicker, particularly in surroundings with fluorescent tubes.

  • Page 33: Password/ Identification

    It can also be used to manually assign a static IP address. For this pur- pose, the ExCam IPP1387 network camera should be installed in the same physical net- work segment (physical subnet) as the computer on which the AXIS IP Utility is running.

  • Page 34: Maintenance/ Modification

    Repair Repairs may only be carried out with original parts of SAMCON Prozessleittechnik GmbH. Damaged pressure-resistant housings have to be replaced completely. If in doubt, send the part in question back to SAMCON Prozessleittechnik GmbH.

  • Page 35: Certificates And Further Documentation

    If you wish additional technical information, please contact us at: support@samcon.eu Certificates and further documentation Certificates and further documentation are available in the download area at the product website: Quick link: https://www.samcon.eu/en/products/network/excam-ipp1387/ Doc.-ID: 241105-PT08BA-SHe-ExCam-IPP1387_en_rev.00.docx, Page 35 of 36...
  • Page 36 Schillerstrasse 17, 35102 Lohra-Altenvers, Germany www.samcon.eu, info@samcon.eu Phone: +49 6426 9231-0, fax: - 31...
