- Page 1 ® ExCam IPP1275 User Manual...
-
Page 2: Table Of Contents
Table of contents Introduction ......................4 Technical data ......................4 Explosion protection .................... 4 Illustration of the model key ................. 5 Electrical parameters of the camera ..............6 System cable SKD04-T.flex ................6 Video-technical characteristics ................7 Other technical data .................... 7 Safety Instructions .................... - Page 3 Figure 5-6 Video Tutorial ....................15 Figure 5-7 BTR-Modul ..................... 15 Figure 6.1 – Opening the ExCam IPP1275 (Fig. similar) ..........19 Figure 6-2 Structure oft he main unit P12 MkII ..............20 Figure 6-3 Open the ExConnection Rail ................20 Figure 6-4 Closing the ExConnection Rail ...............
-
Page 4: Introduction

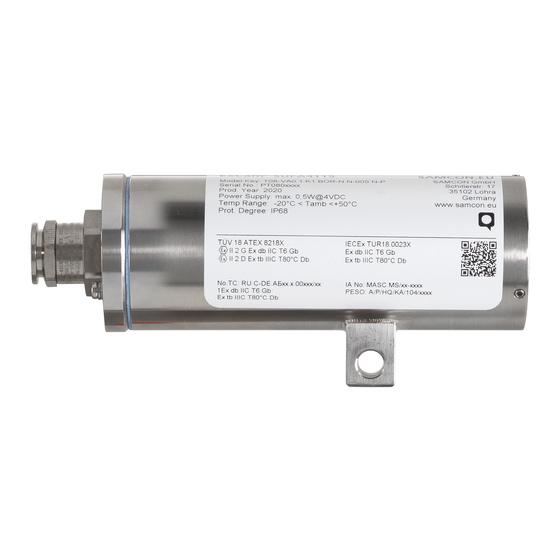

ATEX and IECEx. The camera has a high-definition television resolution (1920x1080) and is equipped with a powerful vario focus lens. The ExCam IPP1275 is a modular ex-network-camera. This means that it consists of two units: the ultra compact sensor unit (lens and image sensor) and the main unit (network, power and memory card slot). -
Page 5: Illustration Of The Model Key
T08- VA0.1.K1.BOR- N.N- 005.N- Table 2-1 Model key Explanations: ExCam IPP1275 = Functional camera description of the ExCam Series (technical data/ specification of the individual camera module) T08 = SAMCON Production- Type 08 VA0.1.K1.BOR = T07 ex d housing (stainless steel 1.4404) with small diameter Ø... -
Page 6: Electrical Parameters Of The Camera
Copper, tinned wire 0.10, optical cov. app. 80% Outer jacket/ Properties: PUR FHF, halogen-free, flame-retardant (EN 60332-1-2), EMV shielded, suitable for drag chains, (see www.samcon.eu Quicklink: https://www.samcon.eu/fileadmin/documents/en/60-Assembling%26mounting/SKD04-T.flex_Datasheett.pdf Figure 2-1 Sectional view of SKD04-T.flex Attention! For wiring and connection of the camera, DIN/EN/IEC 60079-14 has to be observed. -
Page 7: Video-Technical Characteristics
Video-technical characteristics We use the AXIS P1275 Network Camera in a pressure-resistant enclosure. For details, ® please refer to the Product Documentation, video-technical data of AXIS https://www.axis.com/products/axis-p1275 Other technical data Sensor Unit (Ex-d) Main Unit -20°C … +50°C -20°C … +50°C Permissible ambient temperature Protection class as per EN IP68... -
Page 8: Safety Instructions
Please absolutely observe the installation instruction’s safety directions of the T08 ExCam series! Quick link: https://www.samcon.eu/fileadmin/documents/en/22-Ex-Network-Cameras/ExCam-Series-T08-EX-Installation-Manual-2020.pdf It is absolutely mandatory to adhere to the national safety regulations and regula- tions for prevention of accidents, as well as to the safety instructions given below... -
Page 9: Installation
Installation For commissioning and operating the camera, the relevant national regulations, as well as the generally accepted rules of technology shall prevail. Before mounting the camera, thoroughly check it for any transport damage, especially on the housing and cable. Instal- lation, electrical connection and the first start must only be carried out by qualified spe- cialists. - Page 10 (please observe the Ex-Installationmanual T04). Consider the weight of the housing. Drawings for drill hole patterns and further information can be viewed on our product page: Quick link: https://www.samcon.eu/en/products/network/excam-ipp1275/ Optional mounting accessories WALL MOUNT EXCAM VA1.x Wall bracket Wall bracket for devices of T08-VA0-series WMB-...
-
Page 11: Electrical Connection
NOT authorised to do electrical connection procedures inside the pressure-resistant enclosure. Potential equalization Figure 5-1 ExCam IPP1275 Potential equalization Potential equalization/grounding of the camera housing is absolutely necessary, in order to avoid static charges and thus the formation of sparks. For this purpose, a screw termi- nal is provided at the rear side, at the bottom (right) (see Figure 5-1). -
Page 12: Connection Work At The Device (Terminal Box) And Fuses
Typical power consumption: 2.5 W The figures 5.2 and 5.3 illustrate the potential cable terminations of the ExCam IPP1275. Possible terminations are sensor unit connected to an ExConnection Rail (T08-…-TD) or sensor unit with RJ12 plug and main unit P12 MkII for safe areas (T08-…-P). -
Page 13: Direct Routing Into Safe Area
The plug (Fig. 5-2) is to be connected to the PoE outlet of the Main Unit (P12 MkII, with- out pressure tight casing). Figure 5-4 ExCam IPP1275 safe area When connecting the sensor unit directly to the Main Unit situated in the safe area, the power supply as well as the network signal has also to be placed in the safe area. -
Page 14: Connection To An Exconnection Rail / Routing Into Ex-D
For cameras with the model key T08-…-TD, the Sensor Unit is already connected to an ExConnection Rail. The Main Unit P12 MkII is then placed in the Ex-d housing. Figure 5-5 ExCam IPP1275ExConnection Rail Doc.-ID: 200917-PT08BA-ES-ExCam IPP1275_en_rev.00.docx, Page 14 of 28... - Page 15 The power supply of the PoE camera is also conducted via this cable. The interface of the ExCam IPP1275 uses a 100 Mbit/s „Fast Ethernet“ connection for the data transfer (100BASE-TX). Please observe the mounting instruction of the BTR-modul: https://www.samcon.eu/fileadmin/documents/de/80-...
-
Page 16: Appropriate Cables & Cable Entries
Please observe the mounting instructions oft he cable gland: The torque oft he enclosed cable gland is 20 Nm. https://www.samcon.eu/fileadmin/documents/de/80- Anzeigen%26Bedienen/KLE_ADE1F2_Mounting Instructions.pdf Attention! Finally, check your network installation with a Class-D Link Test. Attention! Cables and wires must comply with the requirements of the IEC 60079- 0/1/7 &... -
Page 17: Fusing
5.2.5 Fusing PoE power supply requires no fuses. The power supply fusing depends on the cable cross-section and length. 5.2.6 Tests prior to switching on voltage Attention! Prior to starting the device, perform all tests as indicated by the na- tional regulations. -
Page 18: Working Inside The Housings (Ex-D)
Working inside the housings (Ex-d) The customer may open the housing only if it is absolutely necessary. Possible reasons are: For the sensor unit only to change the focus. For the main unit: RJ45 Ethernet connection with PoE connect the cable with the BTR-modul ... -
Page 19: Opening The Sensor Unit Housing (T07)
VA0.1.K1.BOR, it is mandatory to follow the step-by-step instructions as stated in the T08 Ex installation manual! Figure 6.1 – Opening the ExCam IPP1275 (Fig. similar) Loosen the six M3 cylinder-head hexagon screws (DIN 912/ ISO 4762) together with their spring rings (DIN 127A) on the rear side of the cable and power supply flange. -
Page 20: Opening The Ex-D Main Unit Housing (T04)
Opening the housing is necessary to connect an ethernet cable, to insert or change a memory card or to reset the hardware. For opening the ExConnection Rail T04.2 of the ExCam IPP1275 it is mandatory to follow the step-by-step instructions as stated in the T04 Ex installation manual! The main unit P12 MkII is placed within the Ex-d housing (ExConnection Rail). -
Page 21: 6.2.2.1 Hardware Reset
6.2.2.1 Hardware Reset To set all the parameters of the ExCam IPP1275 (including the IP address) to default values, you should run a hardware reset. The parameters can be reset via the web interface or manually. If the camera placed in the network can no longer be reached or its state is uncontrollable, the reset should be performed manually. -
Page 22: Closing Of The Pressure-Resistant Housings
When touching electrical components, observe potential equalization (grounding of the body): carry electrostatic-discharge clothes, a PE wristband etc.! Closing of the pressure-resistant housings For closing the housings, proceed in reverse order as when opening. Use exclusively original screws included in the supply. Check whether the threaded holes are undamaged and clean. -
Page 23: Closing The Main Unit Housing (T04)
6.3.2 Closing the main unit housing (T04) Figure 6-4 Closing the ExConnection Rail Check the fine thread of the Ex-d cover screw connection and see that there is no contamination or damage! If necessary, clean the thread with nitro-thinner, acetone or similarfat solventsand re-grease it with "OKS 403"or "Molykote®... -
Page 24: Network Access And Visualization
Assigning the IP address The ExCam IPP1275 is intended for use in an Ethernet network and requires an IP ad- dress to access and control it. In the most today’s networks, a DHCP server is integrated. This server automatically assigns an IP address. -
Page 25: Password/ Identification
It can also be used to manually assign a static IP address. For this purpose, the ExCam IPP1275 network camera has to be installed in the same physical network segment (physical subnet) as the computer on which the AXIS IP Utility is run- ning. -
Page 26: Disposal / Recycling
Drawings & 3D models All drawings, 3D models, certificates and other information are available in the download area of the product page on our website: https://www.samcon.eu/en/products/network/excam-ipp1275/ If you wish additional technical information, please contact us at: support@samcon.eu Certificates and further documentation... -
Page 27: Notes
Notes Doc.-ID: 200917-PT08BA-ES-ExCam IPP1275_en_rev.00.docx, Page 27 of 28... - Page 28 Schillerstrasse 17, 35102 Lohra-Altenvers, Germany www.samcon.eu, info@samcon.eu Phone: +49 6426 9231-0, fax: - 31...
