- Page 1 ® ExCam IPP1280 User Manual...
-
Page 2: Table Of Contents
Table of contents Introduction ......................4 Technical data ......................4 Explosion protection .................... 4 Illustration of the model key ................. 5 Electrical parameters of the camera ..............6 System cable SKD04-T.flex ................6 Video-technical characteristics ................7 Other technical data .................... 7 Safety Instructions .................... - Page 3 Figure 5-2 ExCam IPP1280 T08-VA0.1.K1.GER-N.N-xxx.N-P ........13 Figure 5-3 ExCam IPP1280 T08-VA0.1.K1.GER-N.N-xxx.N-TD ........13 Figure 5-4 ExCam IPP1280 safe area ................ 14 Table 5-2 Pin assignment of the RJ12 plug (SKD04-T.flex) ..........14 Figure 5-5 ExCam IPP1280 ExConnection Rail ............15 Figure 5-6 Video Tutorial ....................
-
Page 4: Introduction

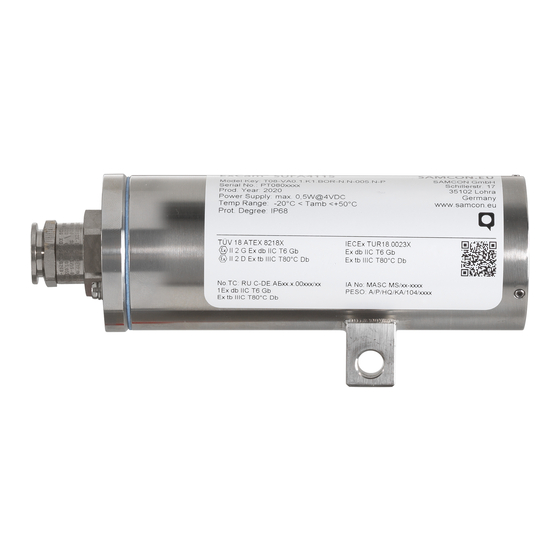

It is certified by ATEX and IECEx. The camera has a thermal resolution (208x156) and is equipped with an uncooled microbolometer. The ExCam IPP1280 is a modular ex- network-camera. This means that it consists of two units: the ultra compact sensor unit (lens and image sensor) and the main unit (network, power and memory card slot). -
Page 5: Illustration Of The Model Key
T08- VA0.1.K1.GER- N.N- 005.N- Table 2-1 Model key Explanations: ExCam IPP1280 = Functional camera description of the ExCam Series (technical data/ specification of the individual camera module) T08 = SAMCON Production- Type 08 VA0.1.K1.GER = T07 ex d housing (stainless steel 1.4404) with small diameter Ø... -
Page 6: Electrical Parameters Of The Camera
Copper, tinned wire 0.10, optical cov. app. 80% Outer jacket/ Properties: PUR FHF, halogen-free, flame-retardant (EN 60332-1-2), EMV shielded, suitable for drag chains, (see www.samcon.eu Quicklink: https://www.samcon.eu/fileadmin/documents/en/60-Assembling%26mounting/SKD04-T.flex_Datasheett.pdf Figure 2-1 Sectional view of SKD04-T.flex Attention! For wiring and connection of the camera, DIN/EN/IEC 60079-14 has to be observed. -
Page 7: Video-Technical Characteristics
Video-technical characteristics We use the AXIS P1280 Network Camera in a pressure-resistant enclosure. For details, ® please refer to the Product Documentation, video-technical data of AXIS https://www.axis.com/products/axis-p1280e Other technical data Sensor Unit (Ex-d) Main Unit -30°C … +60°C -20°C … +50°C Permissible ambient temperature Protection class as per EN IP68... -
Page 8: Safety Instructions
Please absolutely observe the installation instruction’s safety directions of the T08 ExCam series! Quick link: https://www.samcon.eu/fileadmin/documents/en/22-Ex-Network-Cameras/ExCam-Series-T08-EX-Installation-Manual-2020.pdf It is absolutely mandatory to adhere to the national safety regulations and regula- tions for prevention of accidents, as well as to the safety instructions given below... -
Page 9: Installation
Installation For commissioning and operating the camera, the relevant national regulations, as well as the generally accepted rules of technology shall prevail. Before mounting the camera, thoroughly check it for any transport damage, especially on the housing and cable. Instal- lation, electrical connection and the first start must only be carried out by qualified spe- cialists. - Page 10 The Exconnection Rail has to be mounted with suitable screws (please ob- serve the Ex-Installationmanual T04). Consider the weight of the housing. Drawings for drill hole patterns and further information can be viewed on our product page: Quick link: https://www.samcon.eu/en/products/network/excam-ipp1280/ Doc.-ID: 200917-PT08BA-ES-ExCam IPP1280_en_rev.01.docx, Page 10 of 28...
- Page 11 Optional mounting accessories WALL MOUNT BRACKET WMB-VA0.x/VA1.x Wall bracket Wall bracket for devices of T08-VA0-series WMB-... Suitable for hanging the camera on walls. Material: stainless steel 1.4404 Weight: 0.68 kg Dimensions: 80 x 100 x 205 mm POLE MOUNT EXCAM VA1.x (-) Pole adapter Pole apter for VA wall mount PMB-…...
-
Page 12: Electrical Connection
NOT authorised to do electrical connection procedures inside the pressure-resistant enclosure (T08). Potential equalization Figure 5-1 ExCam IPP1280 Potential equalization Potential equalization/grounding of the camera housing is absolutely necessary, in order to avoid static charges and thus the formation of sparks. For this purpose, a screw termi- nal is provided at the rear side, at the bottom (right) (see Figure 5-1). -
Page 13: Connection Work At The Device (Terminal Box) And Fuses
Typical power consumption: 2.5 W The figures 5.2 and 5.3 illustrate the potential cable terminations of the ExCam IPP1280. Possible terminations are sensor unit connected to an ExConnection Rail (T08-…-TD) or sensor unit with RJ12 plug and main unit P12 MkII for safe areas (T08-…-P). -
Page 14: Direct Routing Into Safe Area
RJ12 plug. The plug (Fig. 5-2) is to be connected to the “Cam” outlet of the Main Unit (P12 MkII, without pressure tight casing). Figure 5-4 ExCam IPP1280 safe area When connecting the sensor unit directly to the Main Unit situated in the safe area, the power supply as well as the network signal has also to be placed in the safe area. -
Page 15: Connection To An Exconnection Rail / Routing Into Ex-D
Ex installation manual T04. Video Tutorial: “SAMCON 06 Wiring the cable in the ex-d housing” https://go.samcon.eu/v06 Figure 5-6 Video Tutorial Doc.-ID: 200917-PT08BA-ES-ExCam IPP1280_en_rev.01.docx, Page 15 of 28... - Page 16 The power supply of the PoE camera is also conducted via this cable. The interface of the ExCam IPP1280 uses a 100 Mbit/s „Fast Ethernet“ connection for the data transfer (100BASE-TX). Please observe the mounting instruction of the BTR-modul: https://www.samcon.eu/fileadmin/documents/de/80-...
-
Page 17: Appropriate Cables & Cable Entries
5.2.4 Appropriate cables & cable entries An integral part of the device safety is the correct selection of the cables, wires and cable entries. Attention! Cables and wires must comply with the requirements of the IEC 60079- 0/1/7 & 14. Attention! The supply line must have a sufficient cross-section. -
Page 18: Working Inside The Housings (Ex-D)
Working inside the housings (Ex-d) The customer may not open the sensor unit housing. Opening the main unit housing is necessary. for the following reasons: RJ45 Ethernet connection with PoE connect the cable with the BTR-module hardware reset ... - Page 19 For opening the ExConnection Rail T04.2 of the ExCam IPP1280 it is mandatory to follow the step-by-step instructions as stated in the T04 Ex installation manual! The main unit P12 MkII is placed within the Ex-d housing (ExConnection Rail). Figure 6-1 Structure of the main unit P12 MkII...
-
Page 20: Hardware Reset
6.2.1 Hardware Reset To set all the parameters of the ExCam IPP1280 (including the IP address) to default values, you should run a hardware reset. The parameters can be reset via the web interface or manually. If the camera placed in the network can no longer be reached or its state is uncontrollable, the reset should be performed manually. -
Page 21: Closing Of The Pressure-Resistant Housing (T04)
Closing of the pressure-resistant housing (T04) For closing the housings, proceed in reverse order as when opening. Use exclusively original screws included in the supply. Check whether the threaded holes are undamaged and clean. Before closing, it is also absolutely imperative to check the flame-proof gap (circular cylindrical fit). Attention! If any mechanical damages occurred to the fitting gap, it is no longer allowed to use the housing! -
Page 22: Network Access And Visualization
Assigning the IP address The ExCam IPP1280 is intended for use in an Ethernet network and requires an IP ad- dress to access and control it. In the most today’s networks, a DHCP server is integrated. This server automatically assigns an IP address. -
Page 23: Password/ Identification
It can also be used to manually assign a static IP address. For this purpose, the ExCam IPP1280 network camera has to be installed in the same physical network segment (physical subnet) as the computer on which the AXIS IP Utility is run- ning. -
Page 24: Disposal / Recycling
Drawings & 3D models All drawings, 3D models, certificates and other information are available in the download area of the product page on our website: https://www.samcon.eu/en/products/network/excam-ipp1280/ If you wish additional technical information, please contact us at: support@samcon.eu Certificates and further documentation... -
Page 25: Notes
Notes Doc.-ID: 200917-PT08BA-ES-ExCam IPP1280_en_rev.01.docx, Page 25 of 28... - Page 26 Doc.-ID: 200917-PT08BA-ES-ExCam IPP1280_en_rev.01.docx, Page 26 of 28...
- Page 27 Doc.-ID: 200917-PT08BA-ES-ExCam IPP1280_en_rev.01.docx, Page 27 of 28...
- Page 28 Schillerstrasse 17, 35102 Lohra-Altenvers, Germany www.samcon.eu, info@samcon.eu Phone: +49 6426 9231-0, fax: - 31...
