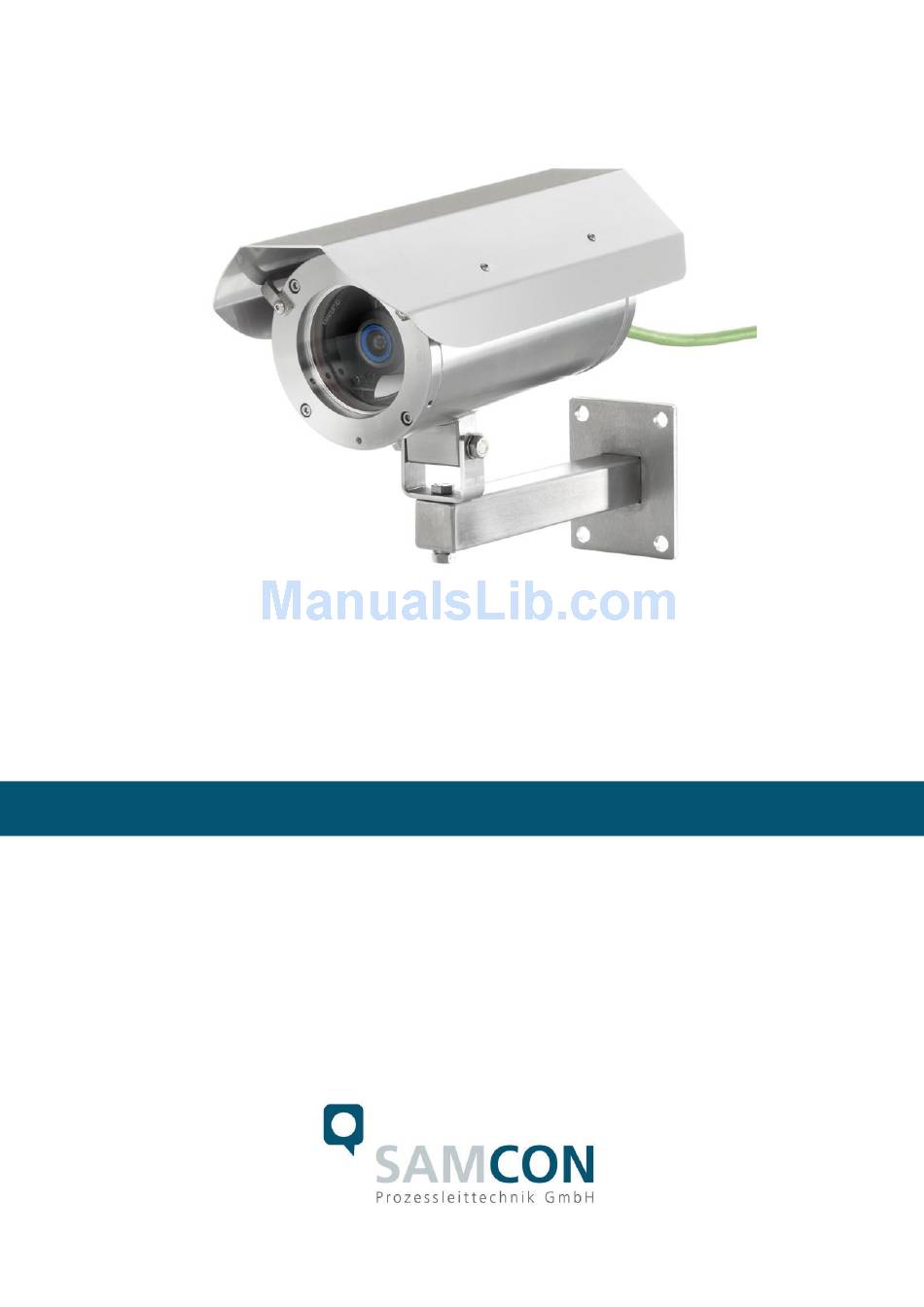

- Page 1 IP1355 ® ToughCam User manual...
-
Page 2: Table Of Contents
Content Document overview ....................4 Technical Data ......................5 Electrical parameters ................... 5 System cable SKDxx: ..................5 Sensor ......................... 5 Processor ......................5 Lens ........................6 Streaming ......................6 Parameterization ....................7 Network ....................... 7 Other technical data .................... 8 Illustration of the model key .................. - Page 3 Figure 4.2 ToughCam IP1355 – T03-VA2-B-XXX-K-N ............ 11 Figure 4.3 ToughCam IP1355 – T03-VA2-B-XXX-P-N ............ 11 Figure 4.4 ToughCam IP1355 – RJ45 pin assignment ............ 13 Figure 4.5 ToughCam IP1355 – SKDxx Pin assignment ..........13 Figure 4.6 Opening of the VA2 housing (1) ..............16 Figure 4.7 Opening of the VA2 housing (2) ..............
-
Page 4: Document Overview
- Datasheet ToughCam IP: - User Manual - Datasheet ToughCam IP1354: - User Manual - Datasheet ToughCam IP1355: User Manual - Datasheet ToughCam IP1357: - User Manual - Datasheet Figure 1.1 Document overview The present document is marked in red. -
Page 5: Technical Data
100 mm Data connection: 4 x 2 x AWG22/1 CAT.6a Characteristics: Halogen free, flame retardant, UV resistant, chemical resistance, shielded (see www.samcon.eu; data sheet SKD01) Interface: P version: RJ-45 10BASE-T/100BASE-TX PoE K version: Single Conductor, twisted-pair 10BASE-T/ 100BASE-TX PoE Sensor 1/2.8‘‘... -
Page 6: Lens
Lens P-Iris, varifocus 2.8 – 8 mm, F1.2 Type: IR corrected, CS mount Angle of view: 67°- 39° horizontally, 38° - 22° vertically (16:9) Focus range: 0.3 m to infinite Shutter time: 1/28000 s to 2 s @50Hz net frequency 1/33500 s to 2 s @60Hz net frequency (Additional lenses for adapting the camera picture to reflect individual and/or environmental requirements as well as compatibility check upon request!) -
Page 7: Parameterization
Parameterization Picture settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight balance, fine adjustment at low light, WDR – wide dynamic range, picture rotation: 0°, 90°, 180°, 270°, corridor format, picture mirroring, text and picture overlay, private zone masking Intelligent video: Video motion recognition, active manipulation alarm... -
Page 8: Other Technical Data
Other technical data Permissible ambient temperature: -10° C to +50° C Protection level EN 60529/IEC 529: IP 67 Housing material: Stainless steel 1.4301 (standard) or Stainless steel 1.4401 (customized) Stainless steel 1.4404 (customized) Glass material: Borosilicate glass Weight: 5500 g (stainless steel housing T03-VA2.K1) 5900 g (stainless steel housing T03-VA2.K2) Dimensions (L x H x D 210 mm x 138.5 mm x 113 mm (K1 flange) -
Page 9: Illustration Of The Model Key
Illustration of the model key The following model options are currently available for the ToughCam IP1355: Product name Model options ATEX Housing Meter Cable Temp. Explosion- . (4) Type option SKD01 termin. range group ToughCam IP1355* T03- VA2- 005- T03-... -
Page 10: Commissioning
Commissioning Step 1: Installation ® Install the ToughCam IP1355 at the desired location. Step 2: Electrical connection Attention! The electrical connection of the equipment must be executed by quali- fied personnel only! Attention! ® It is mandatory that the housing of the ToughCam Series has to be grounded via a PE-connection! ®... -
Page 11: Power Supply & Protection
(min. 4mm Connection table: Potential: Color (IEC 60757) Profile Comment GN/YE 4 mm² (fixed) 4.2.2 Power supply & protection Figure 4.2 ToughCam IP1355 – T03-VA2-B-XXX-K-N Figure 4.3 ToughCam IP1355 – T03-VA2-B-XXX-P-N Doc.-ID: 140521-PT03BA-TG-ToughCam IP1355_en_rev.01, page 11 of 28... - Page 12 In order to guarantee the power supply of the ToughCam IP1355, a PoE (Power over Ethernet) capable component has to be available (e.g. a PoE Switch, a PoE Injector, or Midspan) which meets the specification IEEE 802.3af of the power class 3 (6.49–...
-
Page 13: Figure 4.4 Toughcam Ip1355 - Rj45 Pin Assignment
Sheath: PUR, green (similar RAL 6018), Q =8.7 mm, halogen free, flame retardant, UV stable, chemical resistance Figure 4.4 ToughCam IP1355 – RJ45 pin assignment Particularly in EMC critical environments, it is necessary to make sure that the cable shield is grounded on side of the terminal block (q.v. figure 4.2 – pin with black shrink hose and ferrules). -
Page 14: Tests Prior To Switching On Voltage
In case the ToughCam IP1355 is supplied via a PoE capable device, an additional safe- guarding of the power supply is not necessary. The power supply is executed by the PoE network device via an electronic with intelligent set-up. The camera as well as the con- nection is permanently monitored in order to avoid any failure or defects in case of a short-circuit fault. -
Page 15: Step 3: Adjusting The Picture
Status LED Operation mode Color Comment Green At normal operation, a constant green light shows Note: It is possible to configure the status LED in such a manner that in normal operation it is not illuminated or only blinks when the camera is accessed Yellow It is illuminated permanently when the camera is turned on as well as when the camera is set back to default settings... -
Page 16: Work Preparation
4.4.1 Work preparation Attention! Please carry out any preoperational work carefully and in accordance with the applicable regulations. Attention: Note: Depending on the zone classification, it might be necessary to obtain a work permit/clearance! When adjusting the camera settings potentially explosive atmosphere must be avoided by any means! Please consider that in order to carry out the applicable settings, a feedback regarding the picture quality is required. -
Page 17: Figure 4.7 Opening Of The Va2 Housing (2)
Pull out very carefully the lead flange in a straight manner, ensuring that the board mod- ule does not tilt. Avoid skin and clothing contact with the cylindrical fit, the surface is treated with lubrication paste (oleaginous). Figure 4.7 Opening of the VA2 housing (2) ATTENTION: Please make sure not to damage housing sealings Doc.-ID: 140521-PT03BA-TG-ToughCam IP1355_en_rev.01, page 17 of 28... -
Page 18: Adjusting The Focus
4.4.3 Adjusting the focus The default focus of the ToughCam IP1355 network camera is set to a distance of 10 m and usually no adjustment is necessary. In order to focus on objects in lesser or greater distance, or to change the zoom (wide -> tele), please follow the below steps: Via a web browser, please open the user interface of the ToughCam IP1355 (q.v. -
Page 19: Extracting/Inserting An Sd Storage Card
4.4.4 Extracting/inserting an SD storage card The ToughCam IP1355 is delivered with a 16GB microSDHC storage card. Saved video files can be viewed or deleted via the web interface; they are also available in a down- load list or as an ftp file to the network. -
Page 20: Closing Of The Housing
Attention when inserting / extracting the storage card. Do not damage electronic parts or the cable gland! Do not bend the mounting adapter as otherwise the optical axis of the equipment is not guaranteed anymore! When touching electrical components, potential equalization (grounding of the body) has to be observed (carry a PE wristband etc.)! When touching electrical components, potential equalization (grounding of the body) has to be observed (carry a PE wristband etc.)! -
Page 21: Network Access And Visualization
JVM (J2SE) 1.5 or higher, or JRE (J2SE) 5.0 or higher. At delivery, the ToughCam IP1355 is set to the applicable net frequency (50Hz or 60Hz). If the camera is used at a location with a differing net frequency, a flickering of the picture might be noticeable, particularly in surroundings with fluorescent tubes. -
Page 22: Assigning The Ip Address
Assigning the IP address The ToughCam IP1355 is an Ethernet network camera requiring an IP address to access it. Usually a DHCP server is integrated in most networks which automatically assigns an IP address. In case there is no DHCP server available in the network, the ToughCam IP1355’s default address “192.168.0.90”... -
Page 23: Password / Identification
When a system reset of the equipment has been carried out, please follow the instruc- tions below. In order to allow access to the ToughCam IP1355, the password for the standard administrator user „root“ has to be determined. When accessing the camera for the first time, the dialog field „Configure Root Password“... -
Page 24: Maintenance / Servicing / Alterations
Repairs and Maintenance Repairs must only be carried out with original parts of SAMCON Prozessleittechnik GmbH. Repairs must only be carried out by SAMCON Prozessleittechnik GmbH or a qualified electrical technician authorized by SAMCON Prozessleittechnik GmbH in ac- cordance with nationally applied regulations. Rebuilding of or alterations to the devices are not permitted. -
Page 25: Drawings
Drawings T03-VA2-XX (K1) Front view Side view from left T03-VA2-XX (K2) Front view Side view from left Doc.-ID: 140521-PT03BA-TG-ToughCam IP1355_en_rev.01, page 25 of 28... -
Page 26: Notes
Notes Doc.-ID: 140521-PT03BA-TG-ToughCam IP1355_en_rev.01, page 26 of 28... - Page 27 Doc.-ID: 140521-PT03BA-TG-ToughCam IP1355_en_rev.01, page 27 of 28...
- Page 28 Schillerstrasse 17, 35102 Lohra-Altenvers www.samcon.eu, info@samcon.eu fon: +49 6426 9231-0, fax: - 31 Doc.-ID: 140521-PT03BA-TG-ToughCam IP1355_en_rev.01, page 28 of 28...
