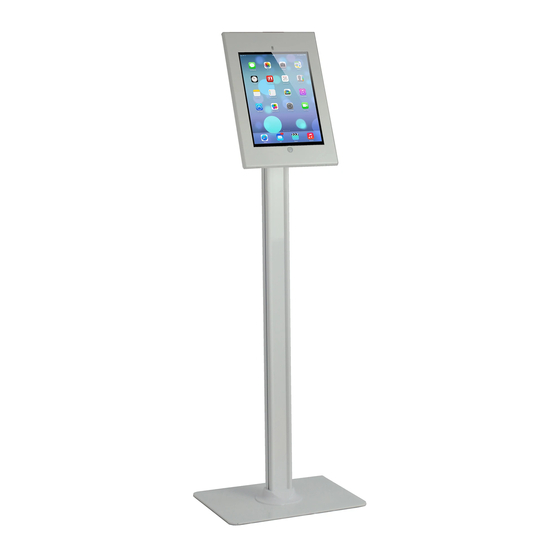

Anti-theft Kiosk for Apple iPad Pro
Instruction Manual
SKU: STAND-PAD1
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-pad1
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-PAD1
Summary of Contents for Vivo STAND-PAD1
- Page 1 Anti-theft Kiosk for Apple iPad Pro Instruction Manual SKU: STAND-PAD1 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-pad1 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Attach rubber pads (D) to underside of base (C). STEP 2 Slide decorative cover (E) onto pole (B). Then, attach base (C) to pole (B) using screws (J) and 6mm allen wrench (L).
- Page 4 STEP 3 OPTION A: Floor Stand For free standing use, simply place the mount on the floor. OPTION B: Wood Floor Installation Place stand in desired location and lift cover (E). Use pencil to mark drilling locations. Drill 2.2” (55mm) deep holes using 3/16” (4.5mm) drill bit, then use 6.3x55 screws (F) to secure base to floor. Replace cover (E).
- Page 5 STEP 3 (Continued) OPTION C: Concrete/Brick Installation Place stand in desired location and lift cover (E). Use pencil to mark drilling locations. Drill 2.4” (60mm) deep holes using 3/8” (10mm) drill bit, press concrete anchors (G) into holes, then use 6.3x55 screws (F) to secure base to floor.
- Page 6 STEP 5 Place 12.9” iPad Pro in anti-theft box (A) and connect charging cable. STEP 6 Attach anti-theft box cover by hooking latches into slots on the top of the box. STEP 7 Lock anti-theft box (A) with key (H). Adjust tilt and rotation with 4mm allen key (K).
- Page 7 STEP 8 For accessible Home button, use rubber button pre-installed in the anti-theft box cover. For inaccessible Home button, remove the rubber button and replace with the plastic button (M). Please note that the button should be installed on the inside of the box cover. Adjust as Desired...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
