UM2681

Operating mode

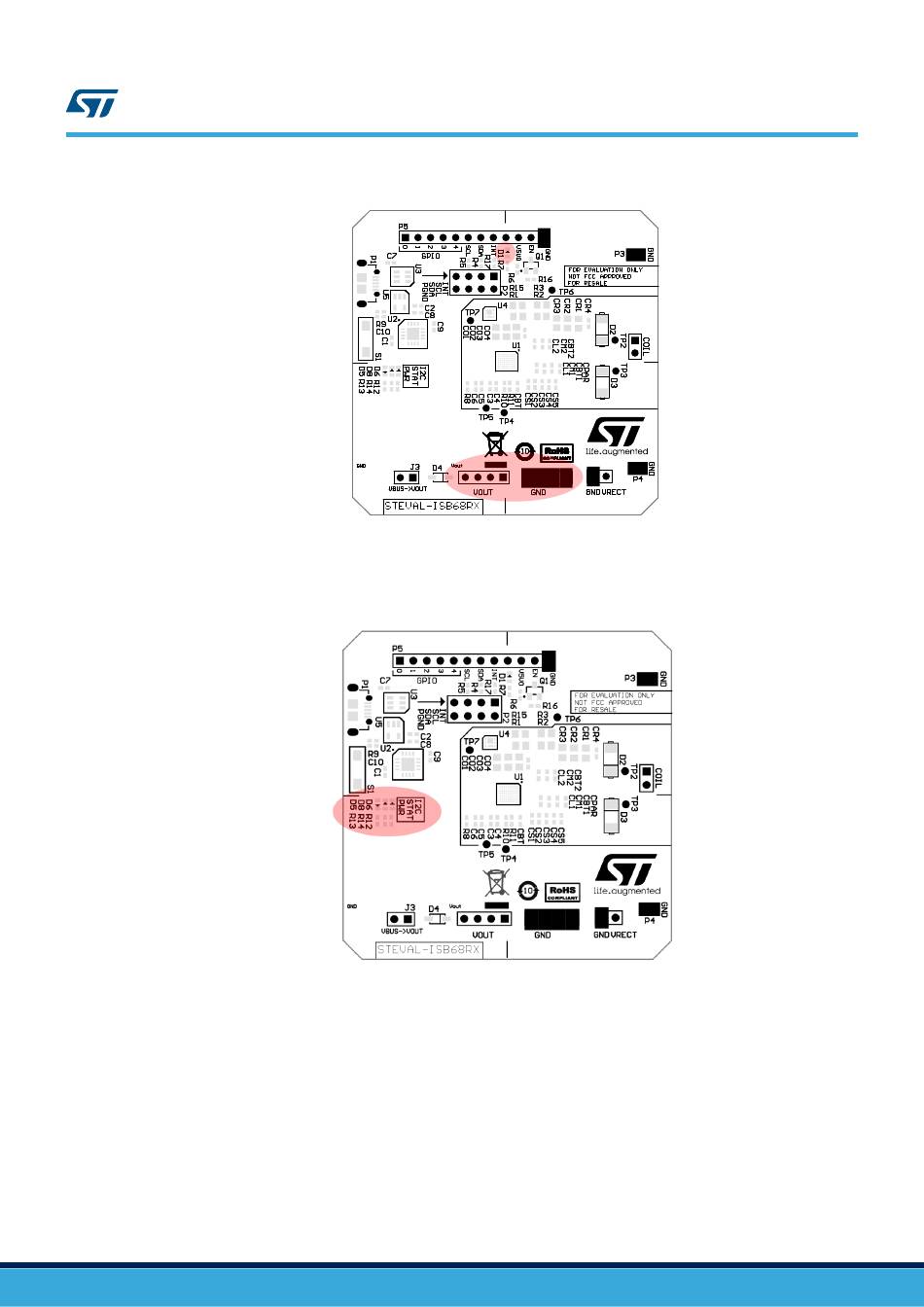

Figure 4.

Output and indication LED

The STEVAL-ISB68RX has three additional LEDs dedicated to the USB-to-I

C converter: D8 LED indicates the

correct initialization, D6 LED indicates I

C bus activity and D5 LED is the power-on indicator (USB supply rail).

Figure 5.

Status LEDs

UM2681 - Rev 1

page 5/18
