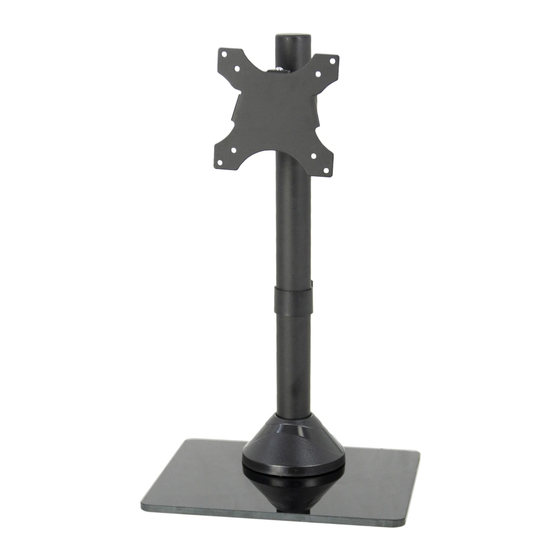

Single Monitor Desk Stand
Instruction Manual
SKU: STAND-V001HG
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v001hg
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V001HG
Summary of Contents for Vivo STAND-V001HG
- Page 1 Single Monitor Desk Stand Instruction Manual SKU: STAND-V001HG Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v001hg GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (9.98kg) Phillips Drill Screwdriver ASSEMBLY STEPS STEP 1 Weighted Base Installation Attach Rubber Feet (i) to the underside of the Glass Base (b). See Figure 1. Attach Soft Pad (j) to the Pole (a). - Page 4 STEP 2 Install Monitor Arm (c) to the Pole (a). Fasten the bolt with supplied Allen Key (p). Attach the Wire Clip (k) to the Pole (a). STEP 3 OPTION A: Flat Back Monitor For monitor with flat back, attach VESA plate (d) to monitor using thumb screws (m).
- Page 5 STEP 3 (Continued) OPTION B: Curved Back Monitor For monitor with curved back, attach VESA plate (d) to monitor using M4x30 bolts (n) with spacers (o).
- Page 6 STEP 4 Slide the monitor onto the head of Monitor Arm (c) as shown in the diagram. Secure the VESA Plate (d) using M4x6 Bolt (l). Make sure the bolt is installed before you rotate the monitor.
- Page 7 STEP 5 Tighten the grub screw in the Monitor Arm (c) using the small Allen Key (p) to fix the tilting angle. Manage the cables and store tools using the Wire Clip (k). grub screw...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
