General

These instructions are provided to assist the qualified
installer.

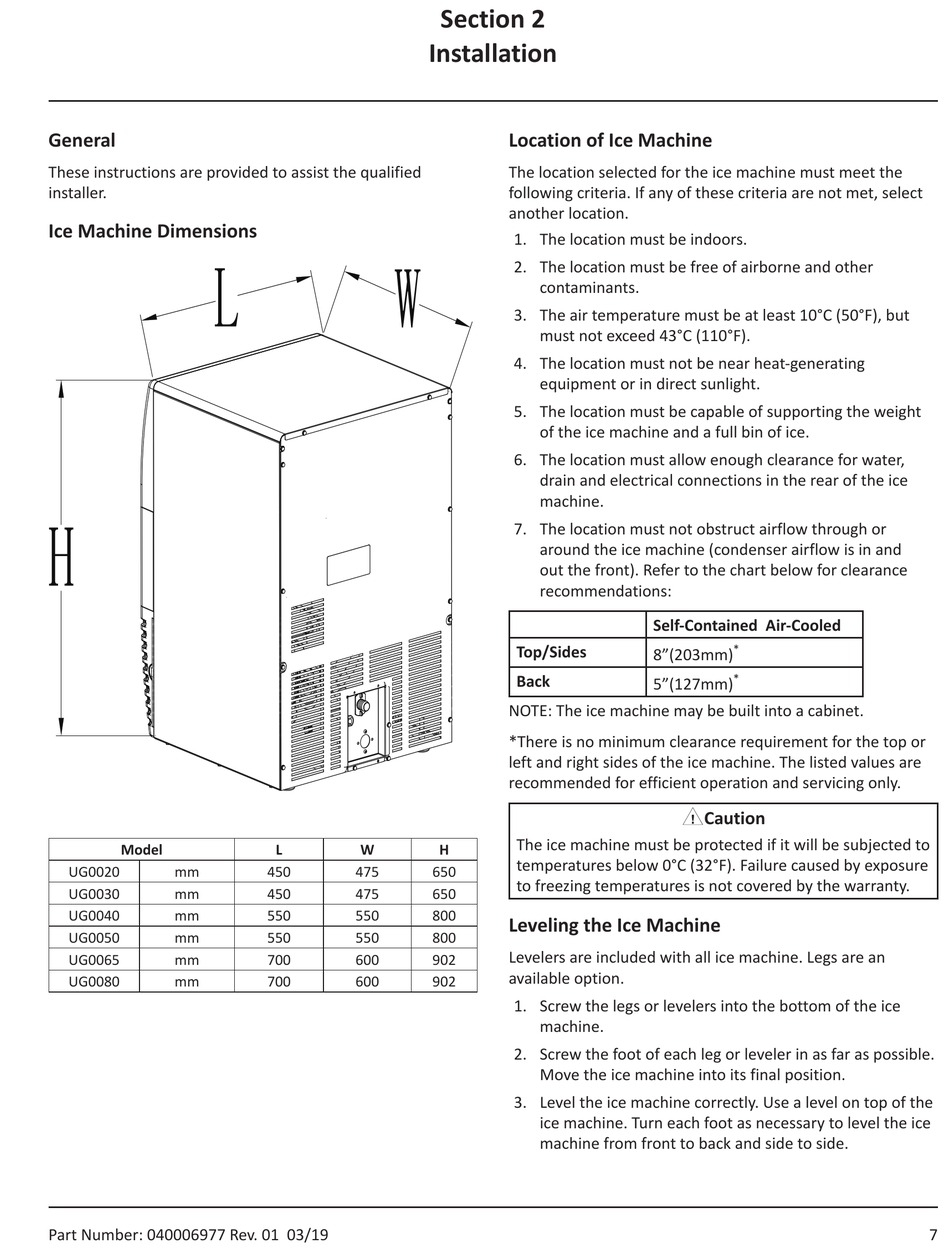

Ice Machine Dimensions

Model
UG0020 mm
UG0030 mm
UG0040 mm
UG0050 mm
UG0065 mm
UG0080 mm
Part Number: 040006977 Rev. 01 03/19
Section 2

Installation

L W H
450 475 650
450 475 650
550 550 800
550 550 800
700 600 902
700 600 902

Location of Ice Machine

The location selected for the ice machine must meet the
following criteria. If any of these criteria are not met, select
another location.
1. The location must be indoors.
2. The location must be free of airborne and other
contaminants.
3. The air temperature must be at least 10°C (50°F), but
must not exceed 43°C (110°F).
4. The location must not be near heat-generating
equipment or in direct sunlight.
5. The location must be capable of supporting the weight
of the ice machine and a full bin of ice.
6. The location must allow enough clearance for water,
drain and electrical connections in the rear of the ice
machine.
7. The location must not obstruct airflow through or
around the ice machine (condenser airflow is in and
out the front). Refer to the chart below for clearance
recommendations:
Self-Contained Air-Cooled
Top/Sides
8"(203mm)
Back
5"(127mm)
NOTE: The ice machine may be built into a cabinet.
*There is no minimum clearance requirement for the top or
left and right sides of the ice machine. The listed values are
recommended for efficient operation and servicing only.
,
The ice machine must be protected if it will be subjected to
temperatures below 0°C (32°F). Failure caused by exposure
to freezing temperatures is not covered by the warranty.

Leveling the Ice Machine

Levelers are included with all ice machine. Legs are an
available option.
1. Screw the legs or levelers into the bottom of the ice
machine.
2. Screw the foot of each leg or leveler in as far as possible.
Move the ice machine into its final position.
3. Level the ice machine correctly. Use a level on top of the
ice machine. Turn each foot as necessary to level the ice
machine from front to back and side to side.
*
*
Caution
7
