Summary of Contents for Manitowoc CrystalCraft Premier

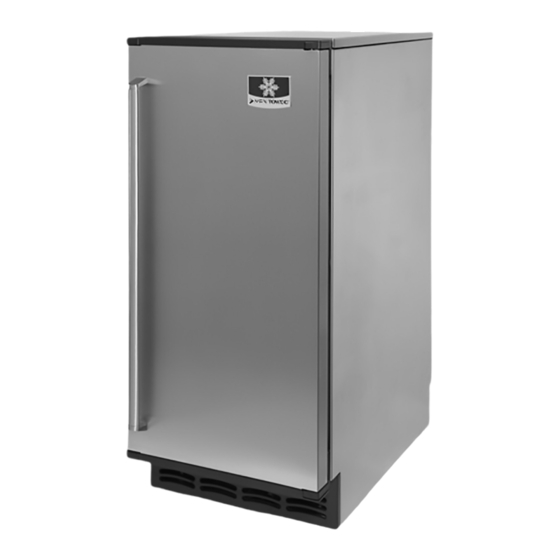

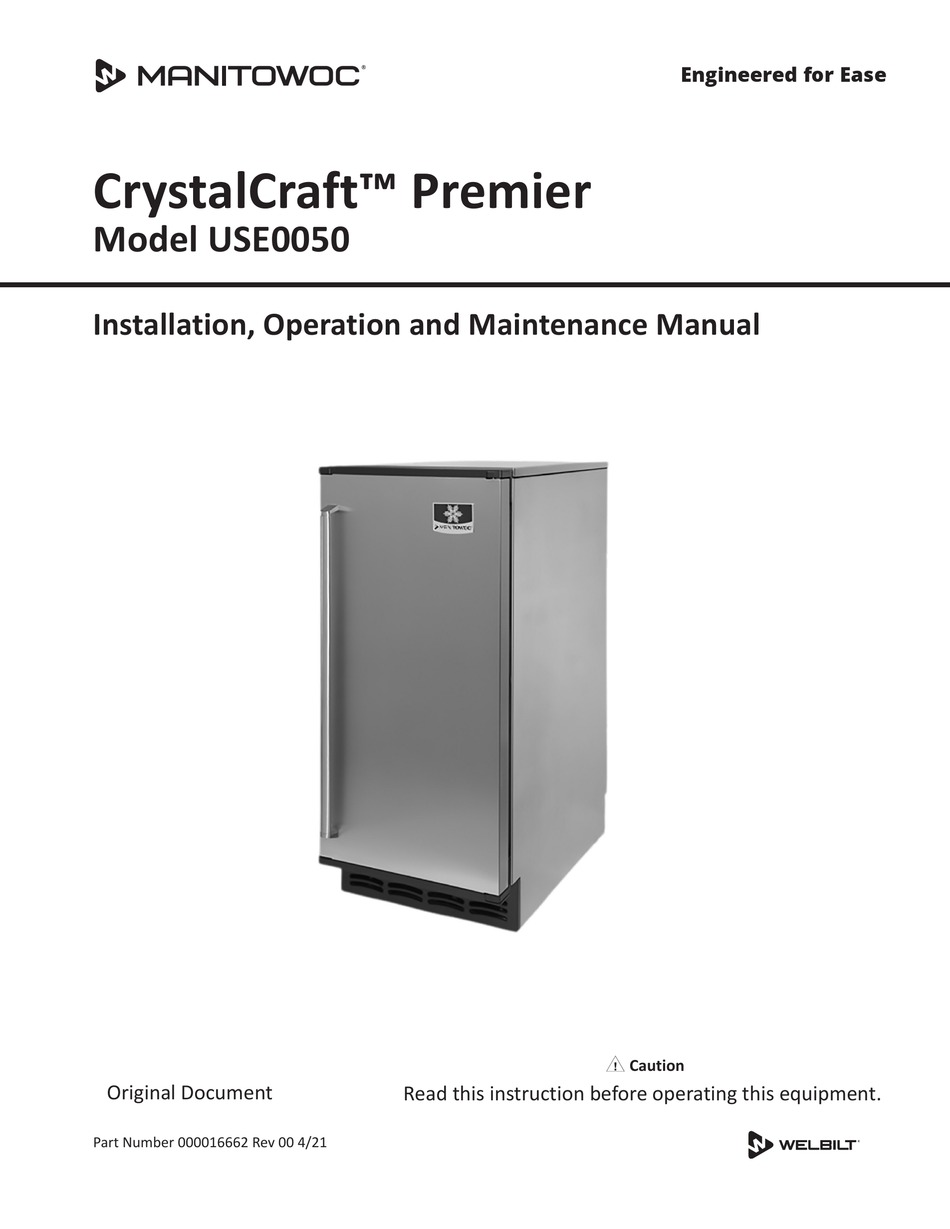

- Page 1 Engineered for Ease CrystalCraft™ Premier Model USE0050 Installation, Operation and Maintenance Manual Caution Original Document Read this instruction before operating this equipment. Part Number 000016662 Rev 00 4/21...
-
Page 3: Safety Notices
Safety Notices Warning Follow these precautions to prevent personal injury Safety Notices during installation of this equipment: Read these precautions to prevent personal injury: • Installation must comply with all applicable equipment fire and health codes with the authority having •... - Page 4 Warning DANGER Follow these precautions to prevent personal injury while Follow these precautions to prevent personal injury operating or maintaining this equipment: during use and maintenance of this equipment: • Read this manual thoroughly before operating, • It is the responsibility of the equipment owner to installing or performing maintenance on the perform a Personal Protective Equipment Hazard equipment.
-
Page 5: Table Of Contents
Table of Contents Safety Notices Safety Notices ........................3 Definitions ........................3 Section 1 General Information Model Numbers ........................ 7 How to Read a Model Number ..................7 Accessories ........................7 Model/Serial Number Location ..................7 Warranty ........................... 8 Warranty Registration ..................... 8 Section 2 Installation Installation Prerequisites .................... - Page 6 Table of Contents (continued) Section 3 Operation Control Panel ........................15 Functions ........................15 Ice Delay ........................15 Repeat Delay Period Every 24 Hours ................15 Sequence of Operation ....................16 Service Limits ........................16 Service Limit 1 Long Freeze Cycle .................. 16 Service Limit 2 Long Harvest Cycle ................16 Service Limit 3 Water Loss ....................
-
Page 7: General Information
Model Numbers Model/Serial Number Location This manual covers the following models: These numbers are required when requesting information from your local Manitowoc distributor, or Manitowoc Ice. Self Contained Air-Cooled USE0050A The model and serial number are listed on the MODEL/ SERIAL NUMBER DECAL affixed to the rear ice machine. -
Page 8: Warranty
General Information Section 1 Warranty For warranty information visit: www.manitowocice.com/Service/Warranty • Warranty Coverage Information • Warranty Registration • Warranty Verification Warranty coverage begins the day the ice machine is installed. WARRANTY REGISTRATION Completing the warranty registration process is a quick and easy way to protect your investment. -
Page 9: Installation
Section 2 Installation Installation Prerequisites Ice Machine Dimensions • Must have open site (gravity) drain available or purchase optional drain pump (see Water Supply and Drain Requirements). • Must have a grounded, polarized electrical power supply on a dedicated electrical circuit (only appliance on circuit). -
Page 10: Ice Machine Location
• Manitowoc’s recommended minimum wire size is #14 for Caution less than 100’ or #12 for more than 100’ to 200’ (solid copper conductor only). -
Page 11: Minimum Circuit Ampacity
• Water pressure must remain between 20 and 80 psig (14 to 55 bar). If water pressure exceeds the maximum recommended pressure (80 psi - 55 bar), obtain a water pressure regulator from your Manitowoc distributor. • Install a water shut-off valve for the ice making water lines. -
Page 12: Drain Connections
Installation Section 2 Step-by-Step Installation Procedure DRAIN CONNECTIONS Follow these guidelines when installing drain lines to prevent 1. Prepare the site by following the instructions under drain water from flowing back into the ice machine and Electrical Service and Water Supply and Drain storage bin: Requirements. -
Page 13: Leveling The Ice Machine
Section 2 Installation LEVELING THE ICE MACHINE DRAIN PUMP OPTION 1. Adjust the levelers close to desired height. Disconnect power to ice machine before proceeding. 2. Move the bin into its final position. 1.Remove top cover screws and slide cover off. Remove back panel screws and lift panel off. -
Page 14: Installation Checklist
Is the ice machine drain line routed to an open site drain? Are all electrical leads free from contact with refrigeration lines and moving equipment? Has the owner/operator been instructed regarding maintenance and the use of Manitowoc Descaler and Sanitizer? Has the warranty registration information been completed online at www.manitowocice.com/Service/Warranty#Warranty-... -
Page 15: Operation
Section 3 Operation Control Panel ICE DELAY Pressing the “Ice Delay” button will initiate a delay cycle. The ice machine will not run until the delay time expires. Press to Repeat Daily Reset Water Filter NOTE: The power button must be on to adjust delay start. Hours Service Power... -
Page 16: Sequence Of Operation
Operation Section 3 Sequence of Operation Service Limits Depending on ambient conditions and cold water supply Service limits protect the machine from major system temperature, the ice making process will take approximately failures. The service LED will flash when one of the five 15-30 minutes. -
Page 17: Maintenance
Use only Manitowoc approved Ice Machine Descaler (9405463) and Sanitizer (9405653). Using a non Manitowoc descaler or sanitizer may result in bodily harm and/or cause damage to the ice machine that is not covered under the warranty. Do not use descaler or sanitizer quantities that exceed the amounts listed in this manual. -
Page 18: Remedial Cleaning Procedure
6 months. The quality of your potable water Step 3 Prepare 4 oz (1/2 cup) of undiluted Manitowoc Ice supply may require more frequent cleaning intervals. Machine Descaler (part number 9405463 only) in a container that will fit easily under the lifted water curtain. -
Page 19: Detailed Descaling And Sanitizing Procedure
Step 2 Remove all ice from the bin. Prepare 4 oz (1/2 cup) of undiluted Manitowoc Ice Machine descaler (part number 9405463 only) in a container that will fit easily under the lifted water curtain. Model... -
Page 20: Removal Of Parts For Descaling/Sanitizing
9. Use the sanitizing solution and a spray bottle, sponge or cloth to sanitize (wipe) the interior of the ice machine and bin. 10. Do not rinse sanitized areas when using Manitowoc Sanitizer. 11. Install the removed parts. 12. Turn on the water and electrical supply... -
Page 21: Ice Chute
Section 4 Maintenance ICE CHUTE SPRAY BAR, WATER PUMP AND HOSE The ice chute is positioned over the spray nozzles and allows 1. Remove spray bar clamp and spray bar. the ice to easily fall into the bin. It must be firmly positioned 2. -
Page 22: Bin Light
Maintenance Section 4 Removal from Service/Long Term Storage/ BIN LIGHT Winterization If the ice machine is shut down for a long period of time the bin light cover must be cleaned and sanitized. The light is Step 1 Perform a cleaning and sanitizing procedure to provided for your convenience. -
Page 23: Troubleshooting
Section 5 Troubleshooting Checklist If a problem arises during operation of your ice machine, follow the checklist below before calling service. Routine adjustments and maintenance procedures are not covered by the warranty. Problem Possible Cause To Correct Replace the fuse/reset the breaker/turn No electrical power to the ice machine. -
Page 24: Service Limit Feature
Troubleshooting Section 5 Service Limit Feature This Maitowoc ice machine features built-in service limits, which will stop the ice machine if conditions arise which could cause a major component failure. Before calling for service, re-start the ice machine using the following procedure: 1. - Page 26 MANITOWOC ICE 2110 SOUTH 26TH STREET, MANITOWOC, WI 54220 800-545-5720 WWW.MANITOWOCICE.COM ©2021 Welbilt Inc. except where explicitly stated otherwise. All rights reserved. “Part Number 000016662 Rev 00 4/21”...
