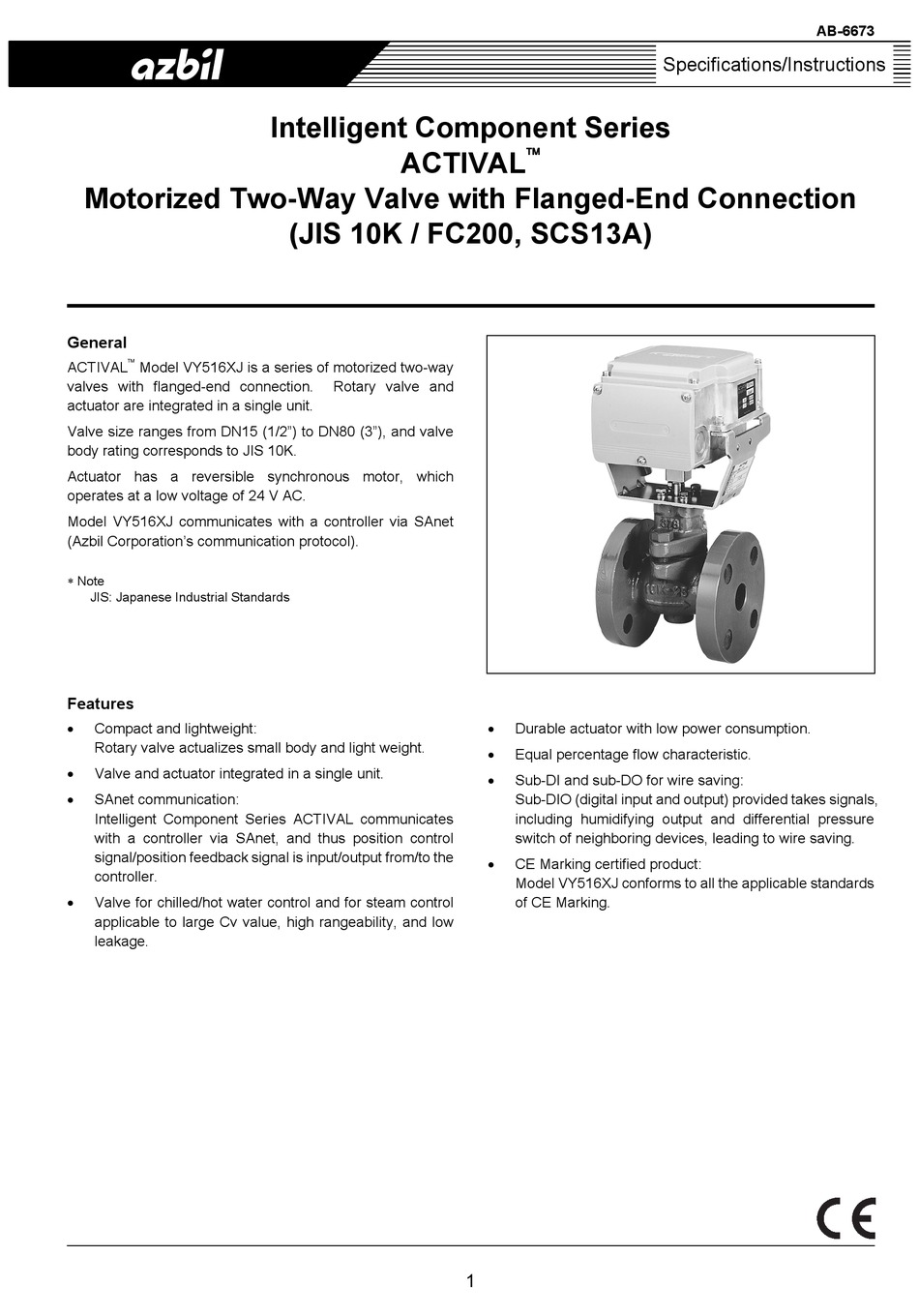

Motorized Two-Way Valve with Flanged-End Connection
General
ACTIVAL
Model VY516XJ is a series of motorized two-way
valves with flanged-end connection.
actuator are integrated in a single unit.
Valve size ranges from DN15 (1/2") to DN80 (3"), and valve
body rating corresponds to JIS 10K.
Actuator has a reversible synchronous motor, which
operates at a low voltage of 24 V AC.
Model VY516XJ communicates with a controller via SAnet
(Azbil Corporation's communication protocol).
 Note
JIS: Japanese Industrial Standards
Features
Compact and lightweight:
Rotary valve actualizes small body and light weight.
Valve and actuator integrated in a single unit.
SAnet communication:
Intelligent Component Series ACTIVAL communicates
with a controller via SAnet, and thus position control
signal/position feedback signal is input/output from/to the
controller.
Valve for chilled/hot water control and for steam control
applicable to large Cv value, high rangeability, and low
leakage.
Intelligent Component Series
ACTIVAL
(JIS 10K / FC200, SCS13A)
Rotary valve and
Durable actuator with low power consumption.
Equal percentage flow characteristic.
Sub-DI and sub-DO for wire saving:
Sub-DIO (digital input and output) provided takes signals,
including humidifying output and differential pressure
switch of neighboring devices, leading to wire saving.
CE Marking certified product:
Model VY516XJ conforms to all the applicable standards
of CE Marking.
1
AB-6673
Specifications/Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACTIVAL VY516XJ Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Azbil ACTIVAL VY516XJ Series

  • Page 1 JIS 10K. Actuator has a reversible synchronous motor, which operates at a low voltage of 24 V AC. Model VY516XJ communicates with a controller via SAnet (Azbil Corporation’s communication protocol).  Note JIS: Japanese Industrial Standards Features ...
  • Page 2: Safety Instructions

    This product is targeted for general air conditioning. Do not use this product in a situation where human life may be affected. If this product is used in a clean room or a place where reliability or control accuracy is particularly required, please contact Azbil Corporation’s sales representative.
  • Page 3: System Configurations

    AB-6673 System Configurations Client PC  BACnet NC-bus (Max. 25 units and 500 m, but extendable up to 1000 m with the repeater module.)  Infilex Model WY5117C SC-bus (Max. 50 units and 1000 m)  Infilex Model WY5122  ...
  • Page 4: Model Numbers

    AB-6673 Model Numbers Model VY516XJ00XX is the model for the valve and actuator integrated into a single unit. The model number label is attached to the yoke. Base Actuator Valve Actuator Valve   model control rating/ Description type size/Cv number signal material...
  • Page 5: Valve Specifications

    AB-6673 Specifications For weight, refer to the table shown in the section Dimensions. Valve specifications Item Specification Model Two-way valve with flanged-end connection, proportional control Body pressure rating JIS 10K (Max. pressure: 1.0 MPa) Model number Nominal size Close-off ratings Size, Cv, Close-off rating VY516XJ0011 DN15 (1/2”)
  • Page 6: Actuator Specifications

    AB-6673 Actuator specifications Item Specification 24 V AC  15 %, 50 Hz/60 Hz Power supply Power consumption 10 VA 63  5 sec (50 Hz) / 53  5 sec (60 Hz) Timing Control signal SAnet Sub-DI Input type Potential free (dry) contact input (contact input) Voltage, current...
  • Page 7: Wire Specifications

    AB-6673 Valve and actuator (as a single unit) specifications Item Specification Transport/storage Environmental conditions Rated operating condition Limit operating condition conditions (packaged* -20 C to 50 C -20 C to 60 C -20 C to 70 C Ambient temperature* (Fluid temperature 0 C to 150 C) -20 C to 40 C (Fluid temperature 150 C to 175 C) Ambient humidity...
  • Page 8 AB-6673 (2/2) Item Specification Valve flange adapter kit Hot-rolled steel (JIS SS4400), electro-galvanized/not electro-galvanized (for replacing Model V5063/V5064 with Electro-galvanized Not electro-galvanized Applicable valve size Model VY51XX) Part No. 83168456-001 Part No. 83168456-101 DN15 Part No. 83168456-002 Part No. 83168456-102 DN25 Part No.
  • Page 9: Parts Identification

    AB-6673 Models VY5161J, VY5166J Min. 300 Min. 300 Min. 600 Min. 300 Min. 300 N  h Note: Leave enough clearance for maintenance and wire connection after installation. 600 mm or more clearance is recommended. Flow direction Install the product in a location where address setting inside the cover can visually be checked.
  • Page 10: Installation Location

    AB-6673 Installation Precautions for installation  CAUTION  Installation and wiring must be performed by qualified personnel in accordance with all applicable safety  standards.  Install the product in the position as specified in this manual. Excessively tight connection of piping and improper ...
  • Page 11: Heat Insulation

    AB-6673 Piping  Check that the model number of the product is what you ordered. The model number is shown on the label attached to the yoke.  Install a bypass pipe and gate valves on the inflow, outflow, and bypass sides. Also, install a strainer with 40 or more meshes (with 80 or more meshes recommended for steam control) on the inflow side.
  • Page 12 AB-6673 Procedure to change the actuator mounting position IMPORTANT:  Do not change the combination of the valve, yoke, and actuator.  Set the ACTIVAL (actuator and valve) in 100 % position when changing the mounting position. If the valve in 0 % position is assembled with the actuator in 100 % position, the actuator puts torque on the closed valve, and the gear of the actuator gets damaged.
  • Page 13 AB-6673 Wiring  WARNING  DANGER: To prevent the risk of severe or fatal electrical shock, always disconnect power source and product  power supply before performing any wiring.  CAUTION   Installation and wiring must be performed by qualified personnel in accordance with all applicable safety standards.
  • Page 14 - For cable connection, use a water-proof connector. Following is the recommended parts Azbil Corporation supplies. Seal connector: Part Nos. 83104346-003, 83104346-004, 83104346-005 - To daisy-chain the SAnet line, use the SAnet cable gland with three ports and the seal connector Azbil Corporation supplies.
  • Page 15 AB-6673 Address Setting (Addressing) To SAnet interface module, ACTIVAL Model VY516XJ and other Intelligent Component Series devices including ACTIVAL PLUS and damper actuators are connected via SAnet. Set address for the terminal devices (Intelligent Component Series devices) so that the SAnet interface module can recognize all the terminal devices connected. Follow the procedure below to set the address.
  • Page 16: Manual Operation Mode

    AB-6673 System Indication Label A part of the product code label can be a system indication label. Clip the part, and write down the name of the system, host controller number of the system, SAnet line number, and address. Then attach the part, as the system indication label, to a location where you can easily check.
  • Page 17: Inspection And Troubleshooting

    Visually inspect the fluid leakage of the valve and the actuator operations every six months. If any of the problems described in Table 4 are found, take corresponding actions shown in the table. If your problem is not solved by the corresponding action, please contact Azbil Corporation near you. Table 3. Inspection items and details...
  • Page 18 AB-6673 This blank page is added for page layout purposes.
  • Page 19 AB-6673 This blank page is added for page layout purposes.
  • Page 20 AB-6673 ACTIVAL and savic-net are trademarks of Azbil Corporation in Japan or in other countries. BACnet is a registered trademark of American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE). KPEV is a registered trademark of Furukawa Electric Co., Ltd.
